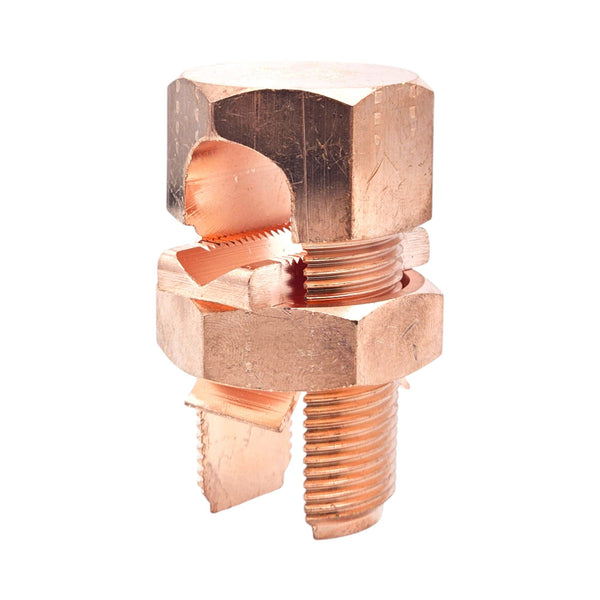

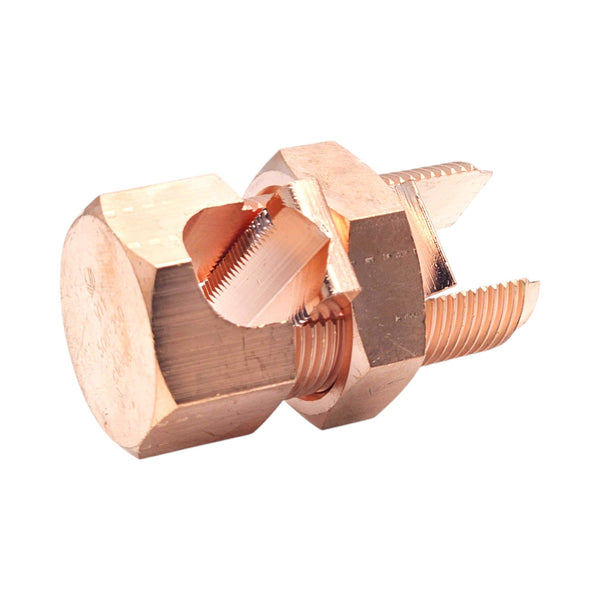

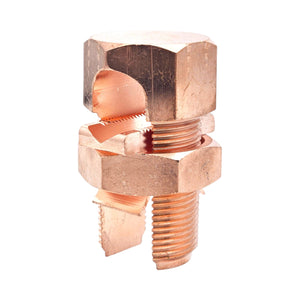

Split Bolt Connector 500 MCM (Max) - 250 MCM (Max)
Shipping calculated at checkout
SKU: 610-00500
171 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
500 MCM – 250 MCM Split Bolt Connector | Heavy-Duty Copper Splicing
The Conversions Tech 500 MCM – 250 MCM Split Bolt Connector is a UL Listed, ANSI-compliant mechanical connector engineered for precision splicing, joining, and terminating large conductors. Manufactured from high-grade brass with optional tin-plated or nickel-plated finishes, this heavy-duty split bolt delivers maximum conductivity, secure mechanical bonding, and long-lasting corrosion resistance. Ideal for residential service entrances, commercial distribution panels, and industrial feeders, it ensures code-compliant, low-resistance performance in even the most demanding environments.
Key Features
- Heavy-Duty Range: Accommodates large conductors from 500 MCM down to 250 MCM.
- High-Strength Brass Body: Provides durability and superior electrical conductivity.
- Corrosion Protection: Available in tin-plated or nickel-plated variants for long-term reliability.
- Thermal Endurance: Rated for continuous operation up to 90°C (194°F).
- UL/ANSI Certified: Fully compliant with safety and performance standards.
- Easy Installation: Wrench-tightened design allows quick and secure field assembly.
Technical Specifications
| Conductor Range | 500 MCM – 250 MCM |
|---|---|
| Material | High-grade brass alloy |
| Finish Options | Tin-plated or Nickel-plated for corrosion resistance |
| Temperature Rating | 90 °C (194 °F) |
| Voltage Rating | Low- and medium-voltage distribution systems |
| Compliance | UL Listed, ANSI Compliant, NEC 110.14(B) |
Applications
- Residential: Splicing large service entrance conductors.
- Commercial: Multi-conductor connections in distribution panels and switchboards.
- Industrial: High-load feeders, busbar terminations, and heavy-duty splicing.
- Maintenance & Upgrades: Facilitates efficient repairs and system modifications.
- Outdoor/Underground: Suitable for harsh environments when properly insulated per NEC 110.14(B).
Choose the Conversions Tech 500 MCM – 250 MCM Split Bolt Connector for robust, corrosion-resistant, and long-lasting electrical splicing. Trusted by electrical contractors, utilities, and OEMs for safe, code-compliant performance across residential, commercial, and industrial installations.
