10m 2pin 16-30AWG UL2468 Electrical Wire Extension Red Black Cable for Automotive Flat Cable LED Lighting Audio Electric Wire
Shipping calculated at checkout
SKU: 14:29#UL2468;183:85201544#28AWG;380:200746124
In stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
16–30 AWG Stranded Tinned-Copper Hookup Wire (PVC Insulated) — Single or 2-Conductor LED/Telecom Lead
Flexible, stranded tinned-copper hookup wire with durable PVC insulation for LED lighting, telecom/low-voltage electronics, appliance internals, panels, and instrumentation. Offered in common gauges 16 / 18 / 20 / 22 / 24 / 26 / 28 / 30 AWG, in single-conductor or 2-conductor (LED extension) formats. Materials contain no high-concern chemicals. In-stock items ship within ~24 hours.
Key Features

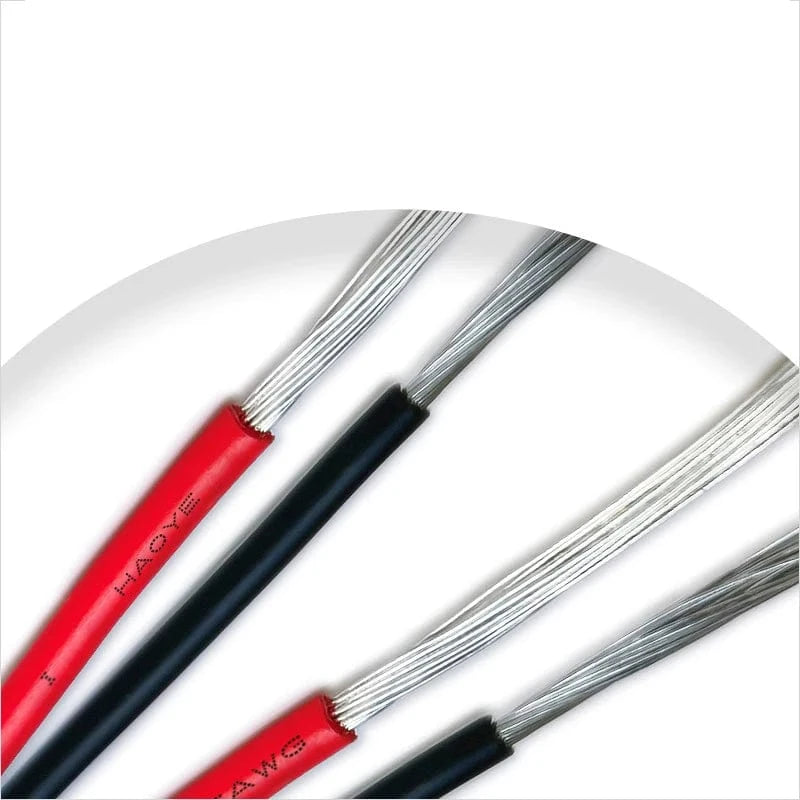

- Conductor: Stranded, tinned copper (excellent solderability and corrosion resistance).
- Insulation: PVC—good dielectric strength, abrasion resistance, easy strip/terminate.
- Voltage Rating: 300 V standard PVC hookup wire; 600 V available on select constructions/options.

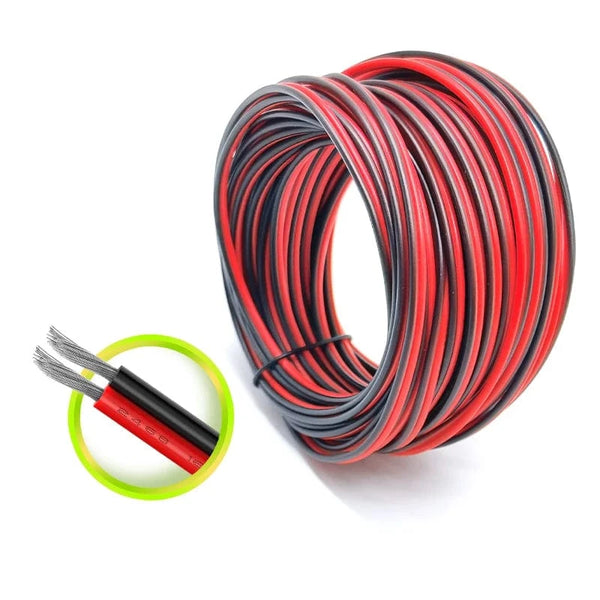

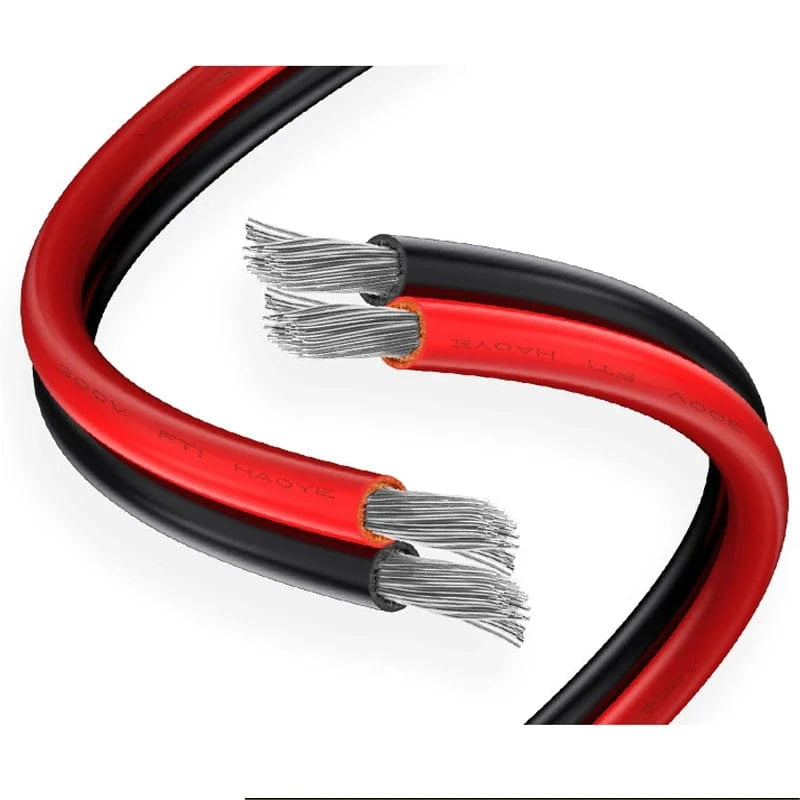

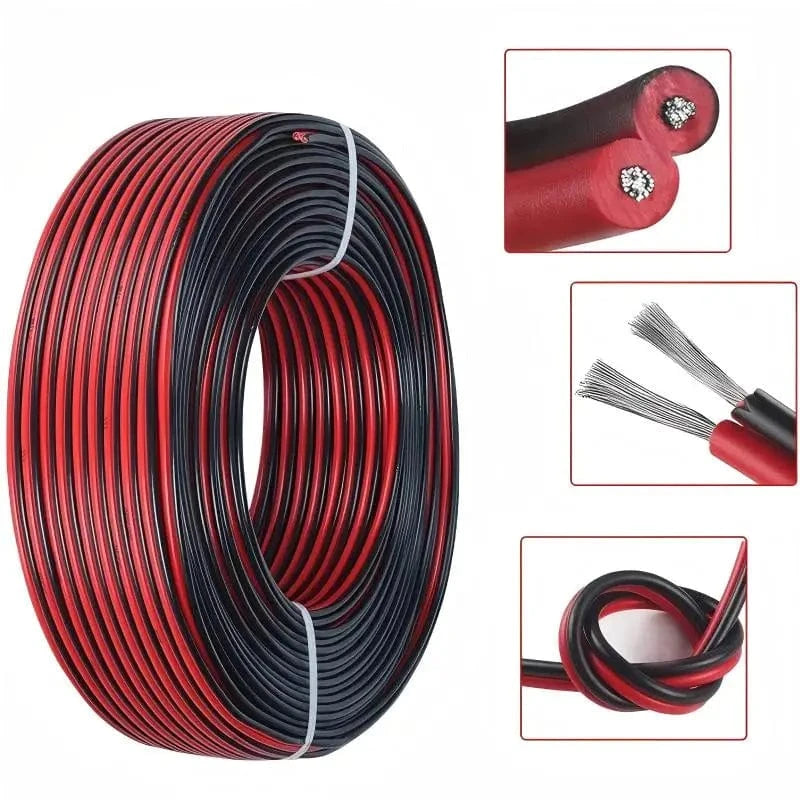

- Formats: Single conductor or 2-conductor LED extension (red/black twin-lead style).
- Flexibility: Fine-strand build for tidy routing in tight spaces and enclosures.
- Use Cases: LED strips/signage, low-voltage DC harnesses, telecom/data accessories, appliance and control wiring.
- Quality: Original factory supply for consistent OD and concentricity; 24H dispatch for stocked SKUs.
Technical Specifications
- Model Number
- 16–30 AWG
- Type
- Insulated hookup/lead wire (single or 2-conductor LED extension)
- Conductor Material
- Copper, tin-plated (tinned copper)
- Conductor Type
- Stranded
- Insulation Material
- PVC (Polyvinyl Chloride)
- Nominal Voltage
- 300 V (standard PVC hookup); 600 V variant available where specified
- Structure
- Bulk wire; no modular telephone connectors included
- Use
- Telecommunication, LED, electronics, appliance internal wiring
- Chemical Disclosure
- No high-concern chemicals
- Default Pack
- 10 m LED 2-conductor extension (select length on page); bulk lengths available
- Origin
- Mainland China

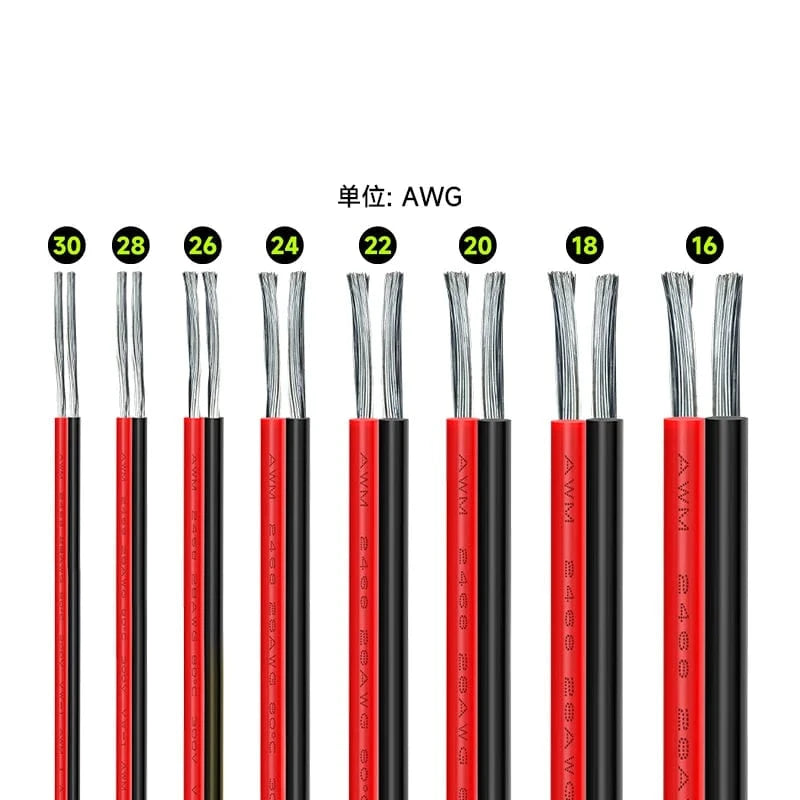

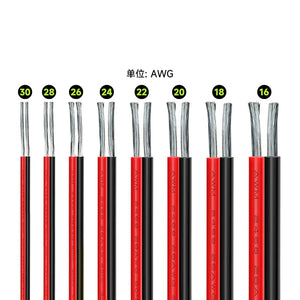

Selection Matrix — Gauge, Format & Typical Uses
| Gauge (AWG) | Format | Insulation | Voltage | Typical Uses |
|---|---|---|---|---|
| 16 AWG | Single / 2-conductor | PVC | 300 V (600 V option) | Higher-current LED runs, power jumpers |
| 18 AWG | Single / 2-conductor | PVC | 300 V (600 V option) | 12/24 V LED feeds, device power |
| 20 AWG | Single / 2-conductor | PVC | 300 V | Low-voltage harness, sensors |
| 22 AWG | Single / 2-conductor | PVC | 300 V | LED strip extensions, control lines |
| 24 AWG | Single / 2-conductor | PVC | 300 V | Signaling, boards, jumpers |
| 26 AWG | Single / 2-conductor | PVC | 300 V | Instrumentation, IoT modules |
| 28 AWG | Single / 2-conductor | PVC | 300 V | Light-duty jumpers, proto wiring |
| 30 AWG | Single | PVC | 300 V | Wire-wrap, fine electronics |
Note: Choose 300 V vs. 600 V construction as offered on the product page. Voltage rating depends on insulation thickness and UL style.
Package & Delivery

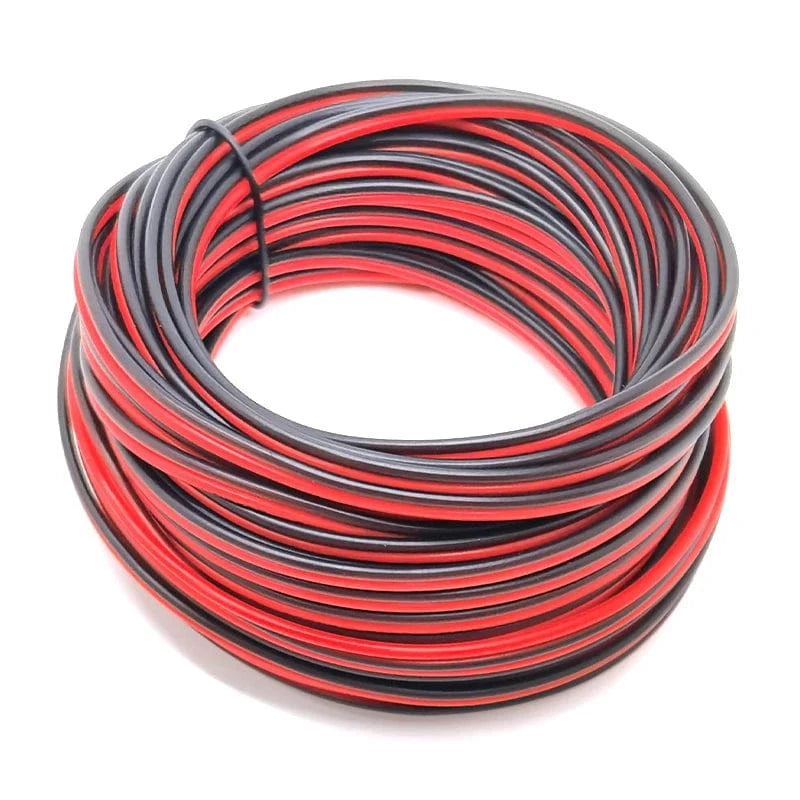

- Default package: 10 m 2-pin LED extension cable (select AWG/length on page).
- Bulk lengths: spools available on request (contact sales for MOQ).
- Fulfillment: original factory direct; typical 24-hour dispatch for in-stock selections.
Color & Display Notes
We calibrate product photos for accuracy, but monitor differences can cause slight color variation. Product geometry and form factor match the listing photos.
FAQ
Is the conductor bare copper or tinned?
It is tinned copper (tin-plated copper strands) for better corrosion resistance and solderability.
What’s the voltage rating—300 V or 600 V?
Standard PVC hookup is 300 V. Select 600 V constructions are available by variant. Always match your application and code requirements.
Does it come with connectors?
No. This is bulk insulated wire (and optional 2-conductor LED extension). It ships without modular telephone connectors.
How fast do you ship?
In-stock selections typically ship within 24 hours (business days).
