CT-T2H1-600 Mechanical Lug — 2-Conductor 1-Hole Dual-Rated AL/CU (2) 4 AWG–600 kcmil 1/2in Stud
Shipping calculated at checkout
SKU: CT-T2H1-600-4A
1000 in stock
Open here

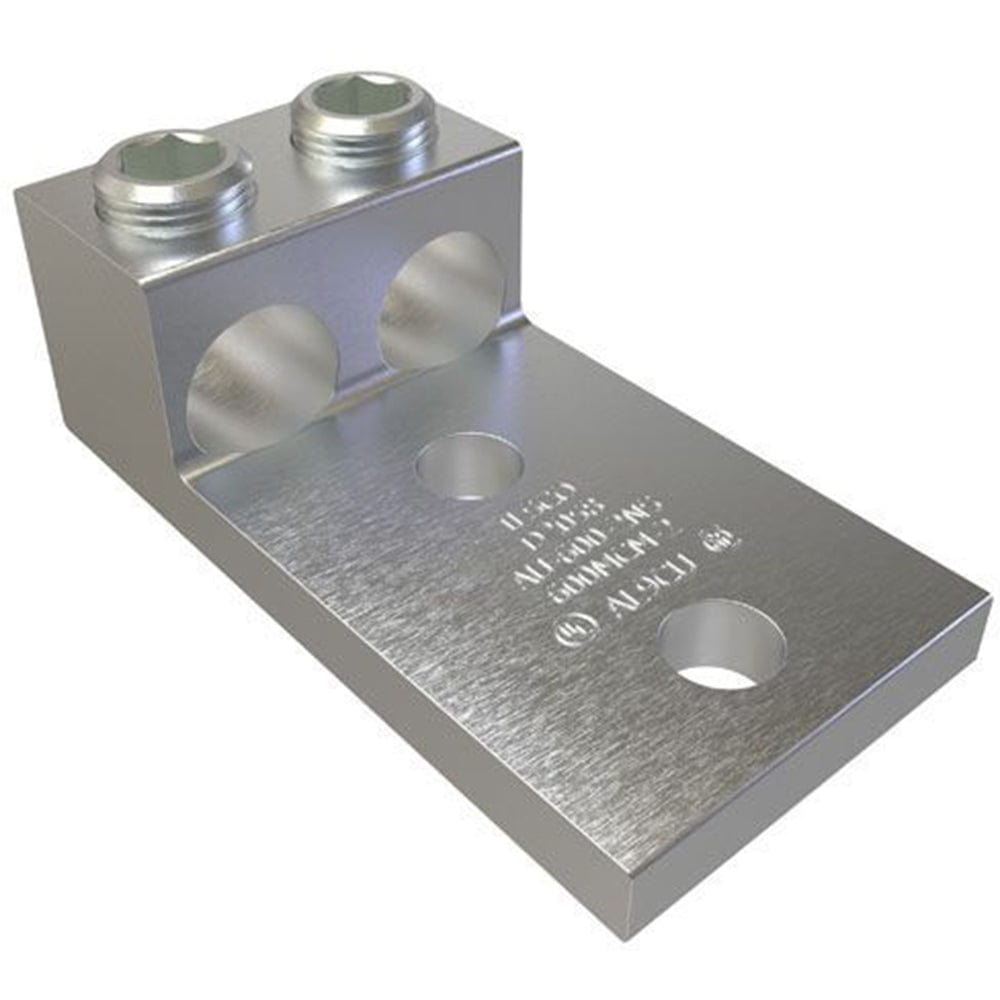

The Conversions Tech CT-T2H1-600-4A is a dual-rated mechanical lug for terminating up to 2 aluminum or copper conductors ((2) 4 AWG-600 kcmil) with a reusable set-screw connection - no crimp tool or dies required. Machined from 6061-T6 aluminum alloy and electro tin plated for low contact resistance and corrosion protection.
| Specifications | |
| Conductor range | (2) 4 AWG-600 kcmil (AL/CU dual rated) |
| Conductors | 2 |
| Mounting stud | 1/2 |
| Material / finish | 6061-T6 aluminum, electro tin plated |
| Rating | 600 V, 90C, UL 486A/B Listed |
Standard termination hardware for load centers, panelboards, safety switches, transformers, and transfer switches. Ships same day when ordered by 2 PM ET.
