Overview

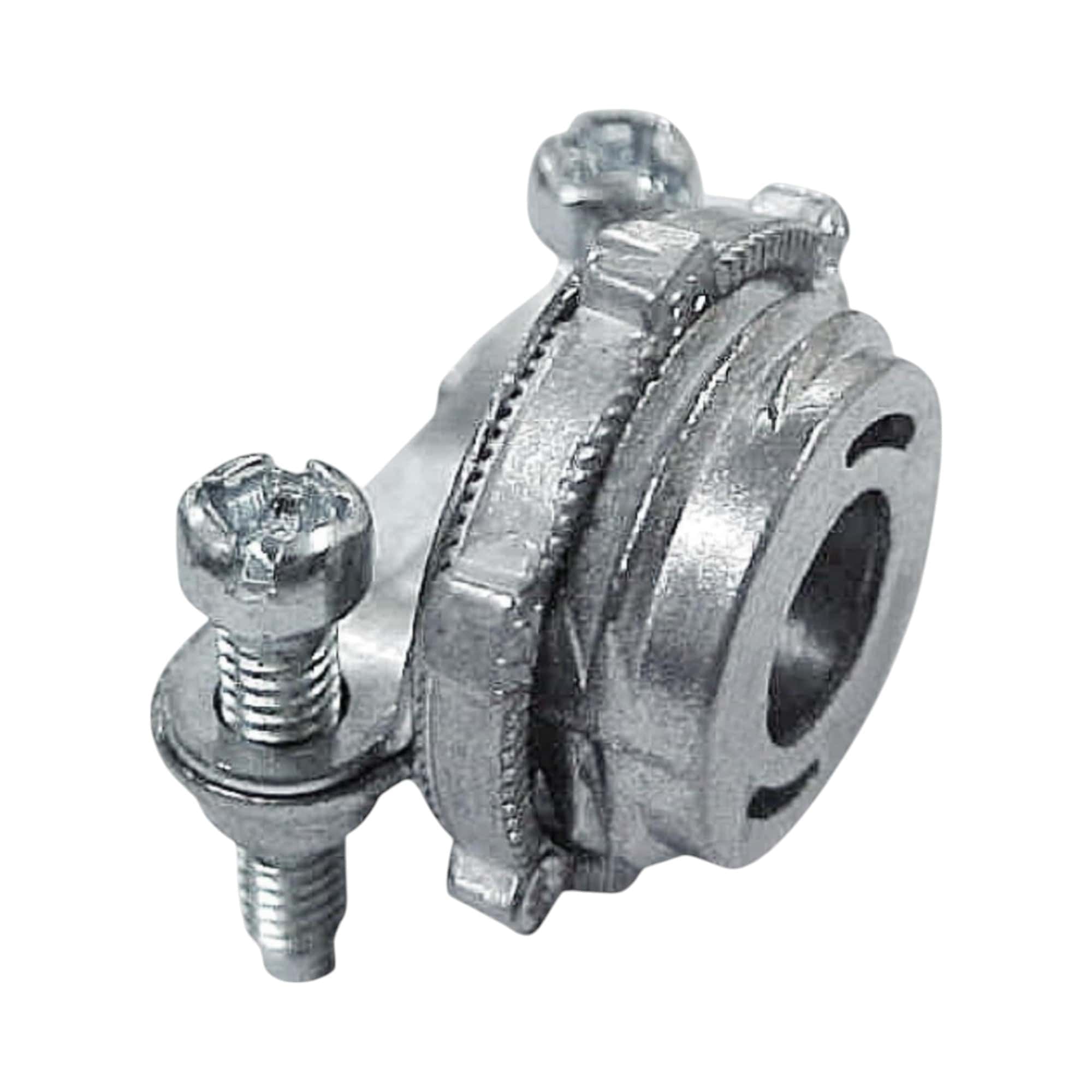

The Combination Cable Connector 2 Screw Clamp Type is a robust electrical connector designed to provide a secure and reliable connection for cables in various industrial and commercial applications. Constructed from zinc die-cast material, this connector is built for durability and resistance to corrosion. It also features a 2-screw clamp mechanism for secure cable attachment, ensuring a tight fit and preventing any unwanted slippage or disconnections. The connector has been certified with the UL+S1 mark, ensuring that it meets safety and quality standards.
Description
This type of cable connector is typically used for joining two cables or wires together, providing a seamless and safe electrical connection. The 2-screw clamp design allows for a tight grip on cables with 3/8" diameter, making it highly versatile for a variety of cables and wire types. Its zinc die-cast body enhances the overall mechanical strength and resistance to environmental factors like moisture and salt, which is crucial for applications exposed to harsh conditions.
Specifications
-
Material: Zinc Die-Cast
-
Clamp Type: 2-Screw Clamp
-
Cable Diameter: 3/8" (suitable for cables of this diameter)
-
Certification: UL+S1 Mark (Underwriters Laboratories + S1 safety rating)
-
Finish: Corrosion-resistant, typically with a protective coating to resist rust and degradation
-
Connection Type: Combination (often allowing use with different cable types or connector styles)
-
Mounting: For secure installation into junction boxes, conduit, or electrical panels
-
Temperature Range: Typically ranges from -40°C to 100°C, depending on application
-
Voltage Rating: Suitable for low to medium voltage applications
-
Wire Type Compatibility: Often compatible with both armored and non-armored cables
Features
-
2-Screw Clamp Mechanism: Provides secure and adjustable cable grip, preventing slippage or accidental disconnection.
-
Zinc Die-Cast Construction: Ensures long-lasting durability and corrosion resistance.
-
UL+S1 Certification: Meets safety standards, providing assurance of quality and electrical safety.
-
Versatile Usage: Can be used for various cable types and sizes (specifically for 3/8" diameter).
-
Easy to Install: Designed for quick installation, reducing downtime during assembly or repairs.
-
Corrosion-Resistant Finish: Suitable for use in outdoor or harsh environments, offering protection from environmental wear.
Cases & Uses
-
Electrical Installations:
- Used in industrial control panels for connecting power supply cables to different electrical components.
- Ideal for use in lighting circuits and power distribution systems, where a secure cable connection is crucial.
-
Telecommunication:
- Employed in telecom installations for ensuring safe and stable connections in outdoor or underground environments.
-
Automation & Robotics:
- Used in automation systems, such as controlling motors, sensors, and other machinery, requiring secure cable terminations.
-
Outdoor & Harsh Environments:
- Due to its zinc die-cast construction and corrosion resistance, it is often found in outdoor electrical installations, including street lighting, substations, and heavy machinery.
-
Renewable Energy:
- Often used in solar power systems and other renewable energy installations, where robust and reliable cable connections are necessary to handle varying weather conditions.
-
Marine Applications:
- Suitable for marine electrical systems, given its resistance to corrosion from saltwater and harsh marine environments.
Summary
The Combination Cable Connector 2 Screw Clamp Type is a highly durable and reliable connector designed to ensure secure electrical connections, particularly in applications that demand strong, weather-resistant connectors. With its zinc die-cast construction and UL+S1 certification, it provides both strength and safety for a wide range of uses, from industrial and telecom to renewable energy and marine systems.
