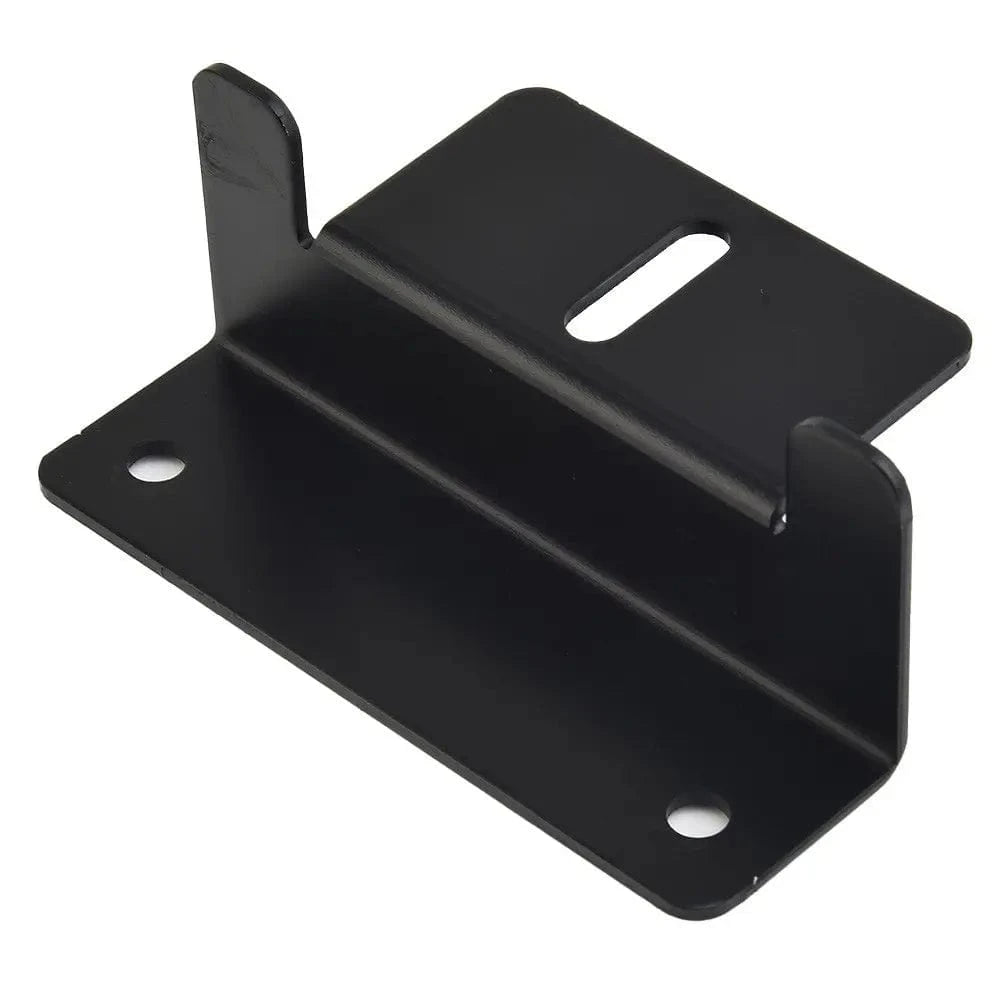

SceneX Solar | Z-Bracket Model SM-ZBR-02 | Anodized Aluminum Mounting Bracket | High Wind & Snow Load Rated
The Our is a precision-engineered photovoltaic mounting solution designed for secure mechanical attachment of solar modules across fixed, curved, and mobile platforms. Constructed from high-strength anodized aluminum alloy, this bracket delivers superior rigidity, corrosion resistance, and long-term mechanical stability under demanding environmental conditions.
Its optimized Z-profile geometry and 2 mm structural thickness ensure uniform load distribution, minimizing stress concentrations on PV module frames. Engineered for environments subject to high wind shear, snow load accumulation, continuous vibration, and marine exposure, the SM-ZBR-02 provides dependable anchoring for RVs, caravans, yachts, off-grid structures, and residential or commercial systems.
Key Features

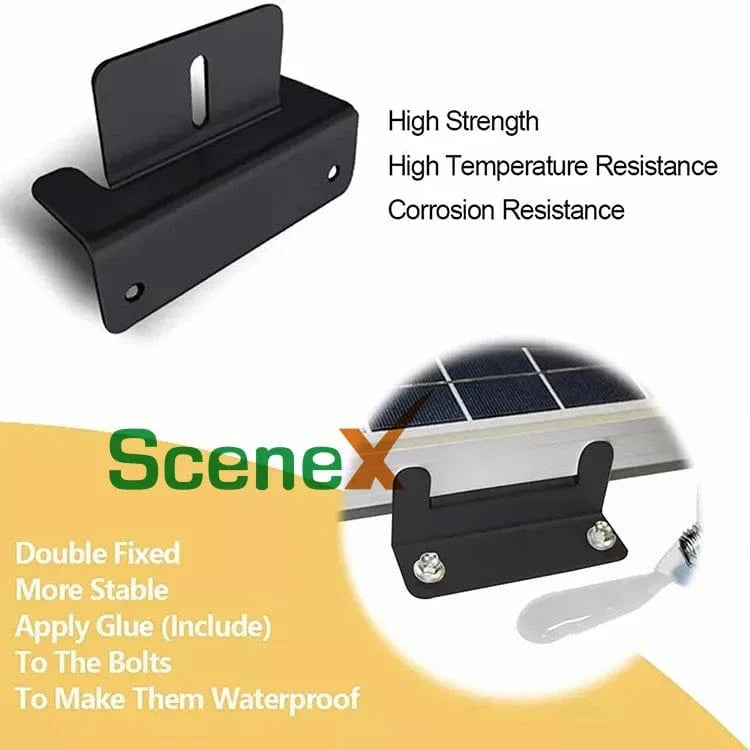

- High-Strength Aluminum Alloy: Manufactured from precision-formed anodized aluminum for enhanced structural integrity, corrosion protection, and resistance to UV and salt-mist exposure.

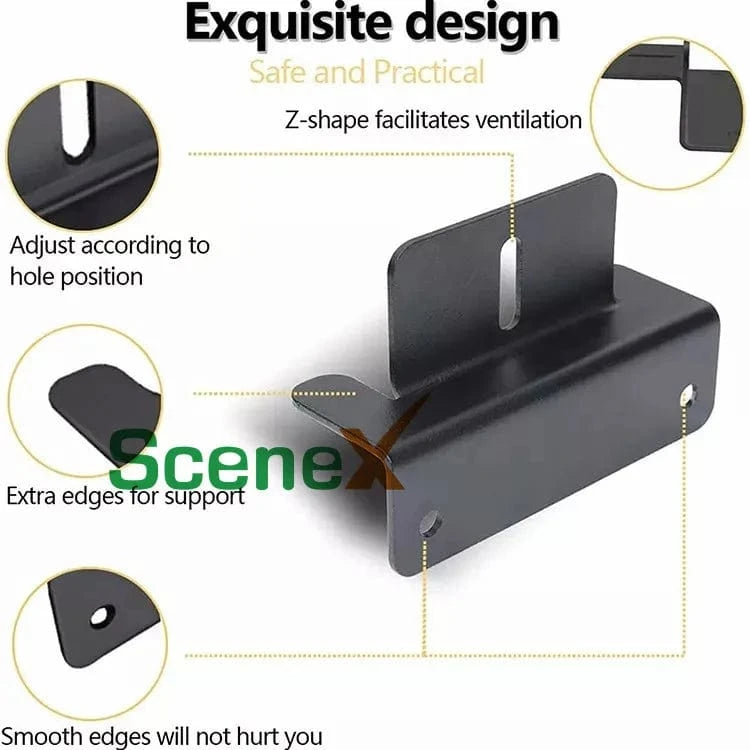

- Optimized Z-Profile: Engineered geometry distributes mechanical loads evenly, preventing deformation and ensuring long-term module stability.
- Extreme Environment Rated: Tested to withstand 1.4 kN/m² snow load and 60 m/s wind load, ideal for harsh climates and mobile platforms.
- Universal Mounting Compatibility: Suitable for flat or curved roofs, RVs, motorhomes, caravans, marine vessels, and structural mounting surfaces.
- Lightweight Yet Durable: Each bracket set weighs only 0.29 kg while maintaining high mechanical performance under torsion, uplift, and vibration forces.
- Surface Protection: Anodized (anodic oxidation) finish enhances corrosion resistance and reduces surface wear in outdoor applications.
Specifications
| Product Name | Z-Bracket Model No. 02 (SM-ZBR-02) |
| Material | High-Strength Anodized Aluminum Alloy |
| Color | Natural Anodized (Silver) or Black Anodized |
| Dimensions | 60 mm × 100 mm × 40 mm |
| Bracket Thickness | 2 mm |
| Snow Load Rating | 1.4 kN/m² |
| Wind Load Rating | 60 m/s |
| Weight | 0.29 kg per set |
| Application | Solar panel mounting on flat/curved roofs, RVs, caravans, yachts, motorhomes, and structural platforms |
| Surface Treatment | Anodized / Anodic Oxidation |
| Package | 4 Brackets per Set; 1 Set/Box; 50 Sets/Carton |
| Place of Origin | USA |
| Warranty | 10 Years |
Uses and Applications
- Mobile Solar Systems: Ideal for RVs, motorhomes, and caravans where constant vibration requires enhanced mechanical stability.
- Marine Installations: Corrosion-resistant design suitable for yachts, boats, and coastal environments with salt exposure.
- Off-Grid Structures: Supports fixed installations on cabins, remote shelters, and stand-alone solar arrays.
- Commercial & Residential Systems: Provides secure module anchoring on flat or curved roofing surfaces.
- Industrial Platforms: Used for auxiliary mounting on mobile machinery, telecom infrastructure, and structural frameworks.
