LED Strip Light Wiring Guide: Power Supply Sizing, Voltage Drop, and Installation (2026)

LED strip lights are one of the fastest-growing categories in residential and commercial lighting. But the wiring is where most installations fail: voltage drop kills brightness, wrong power supplies create flickering, and poor connections cause premature failure. This guide covers power supply sizing, wiring topologies, voltage drop management, and controller selection.

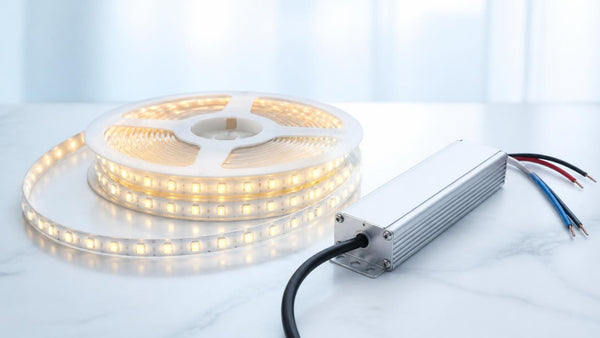

Step 1: Calculate your power supply

Every LED strip has a watts-per-meter (or watts-per-foot) rating. Multiply by total length, then add 20% headroom. Running a power supply at 100% load reduces lifespan and increases heat.

Step 2: Choose 12V or 24V

12V strips are more common and cheaper, but suffer from significant voltage drop on runs longer than 5 meters. At 12V, voltage drop is twice as severe as 24V for the same wattage because current is doubled (P=V×I, so halving voltage doubles current).

24V strips are strongly recommended for runs over 5 meters, commercial installations, and any application where consistent brightness matters. The half-current draw means less voltage drop, thinner wire runs, and smaller connectors.

Rule of thumb: Use 12V for under-cabinet lighting and short accent runs. Use 24V for everything else.

Step 3: Wire for zero visible voltage drop

The number one reason LED strip installations look bad is voltage drop: LEDs near the power supply are bright white, LEDs at the end are dim and yellowish. The fix is proper wiring topology.

Series wiring (wrong): Power supply → strip end → strip end → strip end. Each section adds resistance. The last section gets the least voltage. Never run more than 5m in series from one feed point.

Parallel wiring (correct): Run home-run power wires (18-16 AWG) from the power supply to the start of each strip section. Each section gets full voltage. Use 18 AWG for runs under 10 feet, 16 AWG for 10-20 feet, 14 AWG for 20-35 feet.

Center-feed: For a single long run, feed power from the center point instead of one end. This halves the effective run length and cuts voltage drop by 75%.

Step 4: Controllers and dimming

Single color: Use a PWM dimmer rated for the total strip wattage. PWM (Pulse Width Modulation) dims LEDs without color shift by rapidly switching them on/off. Avoid resistive dimmers, which change color temperature.

RGB/RGBW: Use a matched RGB controller. The controller goes between the power supply and the strip. Ensure the controller can handle the total amperage of your strips.

Smart/addressable: WS2812B, SK6812, and similar addressable strips need a data signal in addition to power. These require dedicated controllers (Arduino, ESP32, or commercial DMX decoders). Each pixel can be controlled independently.

Common mistakes

• Daisy-chaining strips: Running 15m in series from one feed point. The last 5m will be dim and warm. Always parallel wire.
• Undersized power supply: A 30W supply on a 28W load runs at 93% and overheats. Always add 20% headroom.
• No strain relief on connections: Solder joints and push connectors fail from vibration and thermal cycling. Use heat shrink and mechanical strain relief at every connection.
• Wrong IP rating for wet locations: Use IP65 (silicone coated) for kitchens and bathrooms, IP67 (silicone sleeve) or IP68 for outdoor and marine.
