Copper Short Barrel Compression Lug 4 AWG 1/2" Stud | 125A 90°C 35kV
Shipping calculated at checkout
SKU: 210-98010A
Only 3 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

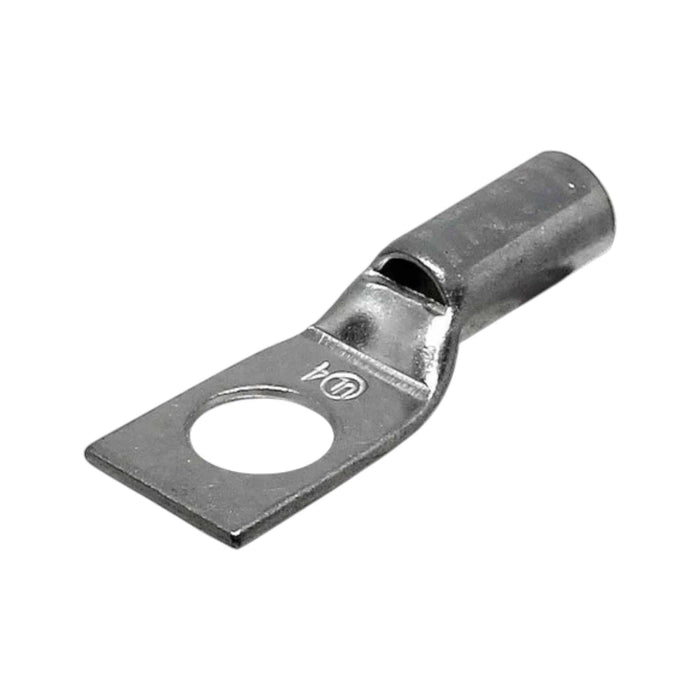

The Conversions Tech Copper Short Barrel One-Hole Compression Lug is engineered for 4 AWG conductors in industrial, commercial, and residential electrical systems. The short barrel design with integrated sight window enables visual confirmation of conductor seating during compression. Tin-plated copper construction provides corrosion resistance and reliable conductivity. Gray color coding supports quick field identification in complex panel layouts.
Specifications
- Conductor Size: 4 AWG
- Stud/Bolt Size: 1/2"
- Material: Tin-plated copper
- Overall Length (L): 50mm (1.96")
- Neck Length (L1): 28.7mm (1.13")
- Outer Diameter (D): 17.8mm (0.70")
- Inner Diameter (D1): 9.1mm (0.36")
- Hole Diameter (D2): 7.1mm (0.28")
- Width (B): 17.5mm (0.69")
- Hole Spacing (E): 13.1mm (0.52")
- Thickness (F): 1.4mm (0.06")
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Max Amp Rating: 125A
- Color Code: Gray
- Features: Sight window for visual inspection
- Certifications: UL Approved, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to standard short barrel one-hole compression lugs from major manufacturers including Burndy, Panduit, and Ilsco product lines. Conversions Tech lugs are built to equivalent dimensional and electrical specifications at competitive distributor pricing.
FAQ
What crimping tool is required for this 4 AWG compression lug?
Use a compression tool with a die set rated for 4 AWG copper lugs. The short barrel design requires proper die selection to achieve the specified compression force without over-crimping. Verify tool compatibility with UL 486A/B requirements.
Is this lug suitable for 90°C rated conductors?
Yes. The 90°C temperature rating matches standard THHN/THWN-2 and XHHW-2 insulated conductors. Do not exceed 125A continuous current per the maximum ampacity rating.
Can the sight window confirm full conductor insertion?
Yes. The sight window provides visual verification that the conductor is fully seated to the proper depth before compression. This reduces installation errors and rework in field conditions.
