1-Hole Compression Lug 1/0 AWG 1/4" Bolt | 35kV 90°C Tin-Plated Copper
Shipping calculated at checkout
SKU: 210-98017
Only 15 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

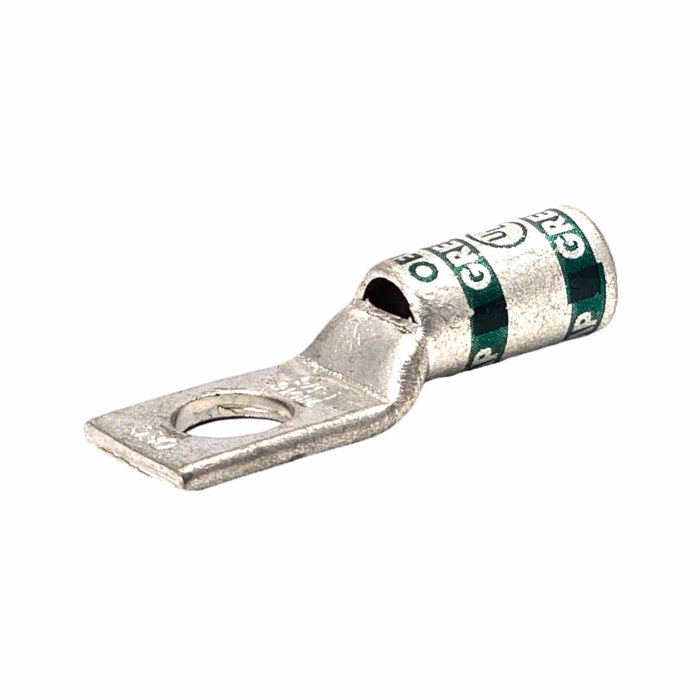

One-hole compression lug engineered for 1/0 AWG copper conductors. Tin-plated seamless copper construction with standard barrel and sight window for visual wire placement verification. Used in power distribution, industrial panels, and utility applications where reliable termination of medium-voltage circuits is required. Green color code enables quick conductor size identification in the field.
Specifications
- Material: Seamless Electro-Tin Plated Copper
- Conductor Size: 1/0 AWG
- Stud Size: 1/4 inch
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-37
- Overall Length: 1.83 inches
- Barrel Length: 0.625 inch
- Barrel Type: Standard
- Barrel Inner Diameter: 0.359 inch
- Barrel Outer Diameter: 0.468 inch
- Barrel Entry Type: Chamfered
- Pad Size: 0.875 inch L x 0.673 inch W x 0.109 inch Thk
- Pad Holes: 1
- Color Code: Green
- Conductor Material Compatibility: Copper
Cross-Reference
Equivalent form factor to standard one-hole compression lugs from major manufacturers including Crouse-Hinds, Burndy, and Panduit. Die index I-37 compatibility ensures tooling interchangeability with common crimping systems.
FAQ
What crimping tool and die are required for this lug?
Use a compression tool with die index I-37. Verify proper die alignment before crimping and inspect through the sight window to confirm full conductor insertion.
Is this lug rated for outdoor or wet location use?
The tin-plated copper construction provides corrosion resistance. For specific environmental ratings and code compliance in your application, consult the NEC or local AHJ requirements.
Can this lug be used with aluminum conductors?
The specifications list conductor material compatibility as copper only. Do not use with aluminum conductors unless explicitly approved for your specific application.
