Short Barrel Compression Lug 4/0 AWG 1/2" Bolt | 90°C 360A
Shipping calculated at checkout
SKU: 210-98031
Only 5 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

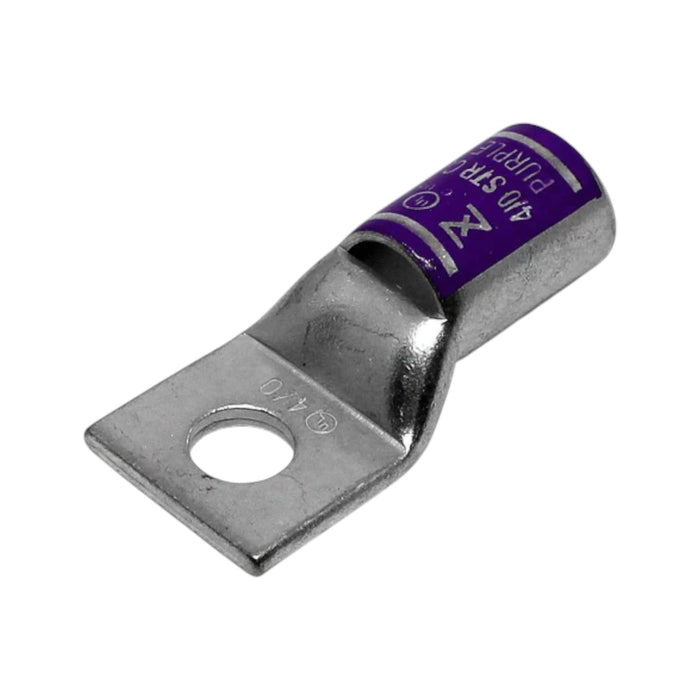

The Conversions Tech Copper Short Barrel One-Hole Compression Lug terminates 4/0 AWG conductors in industrial, commercial, and power distribution applications. The short barrel design accommodates tight termination spaces while the sight window enables visual confirmation of proper conductor insertion before compression. Tin-plated copper construction provides corrosion resistance for harsh environments.
Specifications
- Conductor Size: 4/0 AWG
- Stud/Bolt Size: 1/2"
- Configuration: 1-hole
- Barrel Type: Standard short barrel
- Sight Window: Yes
- Material: Tin-plated copper
- Color Code: Purple
- Overall Length (L): 63.0mm (2.48")
- Neck Length (L1): 28.7mm (1.13")
- Outer Diameter (D): 25.4mm (1.00")
- Inner Diameter (D1): 17.4mm (0.685")
- Hole Diameter (D2): 14.2mm (0.560")
- Width (B): 25.4mm (1.00")
- Hole Spacing (E): 13.1mm (0.515")
- Thickness (F): 3.1mm (0.122")
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Max Amp Rating: 360A
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to short barrel one-hole compression lugs from major manufacturers. Contact your purchasing agent for dimensional verification against existing specifications.
FAQ
What crimping tool is required for 4/0 AWG compression lugs?
Use an industry-standard hydraulic crimping tool with dies sized for 4/0 AWG copper compression terminals. Verify die compatibility with the specific lug barrel dimensions before crimping.
Is this lug suitable for 90°C wet locations?
The 90°C temperature rating applies to the lug material. Installation location suitability depends on the complete termination assembly and enclosure ratings. Verify against NEC requirements for your specific application.
Can I use this lug for aluminum conductors?
No. This lug is specified for copper conductors only. Aluminum conductors require lugs rated for aluminum or dual-rated copper/aluminum with appropriate antioxidant compound.
