Long Barrel One-Hole Compression Lug 1 AWG 3/8" Stud | 35 kV, 90°C
Shipping calculated at checkout
SKU: 210-98068B
690 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

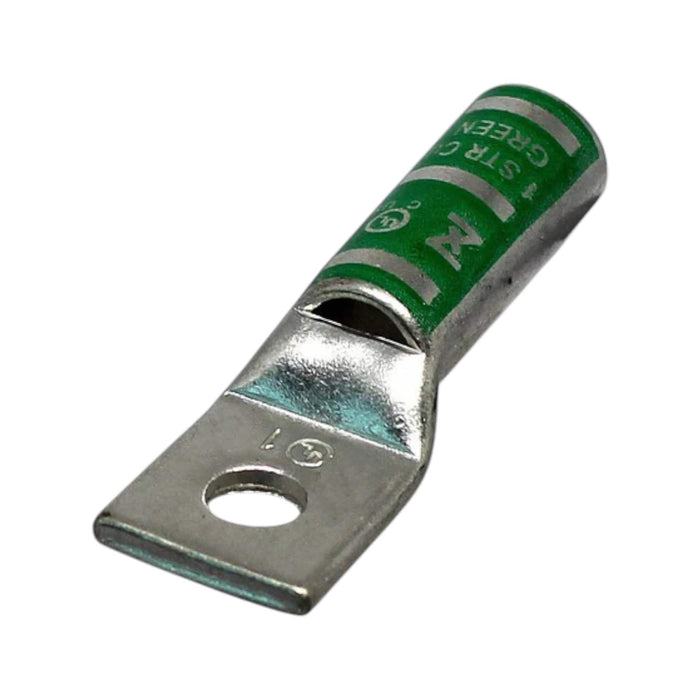

The Conversions Tech long barrel one-hole compression lug is engineered for 1 AWG copper conductors in power distribution, industrial, and renewable energy installations. The seamless electro-tin plated copper construction provides conductivity and corrosion resistance. Extended barrel length (1.375 inches) increases contact surface area for mechanical stability and electrical efficiency. Chamfered barrel entry simplifies conductor insertion during termination.
Specifications
- Conductor size: 1 AWG copper
- Stud size: 3/8 inch (source title); table indicates 1/2 inch—verify stud size for your application
- Barrel type: Long barrel
- Barrel length: 1.375 inch
- Overall length: 2.58 inch
- Pad dimensions: 0.875 inch L × 0.673 inch W × 0.109 inch thick
- Pad holes: 1
- Material: Seamless electro-tin plated copper
- Color code: Green
- Voltage rating: 35 kV
- Temperature rating: 90°C
- Die index: I-37
- Insulation ID/OD: 0.359 inch ID × 0.468 inch OD
- Barrel entry: Chamfered
Cross-Reference
Equivalent to long barrel one-hole compression lug form factors from major manufacturers including Panduit, Burndy, and Ilsco. Conversions Tech lugs are engineered to US specifications and built by certified partner factories.
FAQ
What die should I use to crimp this lug?
Use die index I-37. Verify die compatibility with your specific crimping tool manufacturer.
Is this lug rated for outdoor use?
The 35 kV voltage rating and 90°C temperature rating suit industrial applications. Environmental suitability depends on installation conditions and applicable code requirements.
What is the actual stud hole size?
The source title specifies 3/8-inch bolt size; the specifications table lists 1/2 inch stud size. Confirm the stud size matches your application requirements before ordering.
