Long Barrel Compression Lug 6 AWG 1/4" Bolt | 90°C, 35kV, UL/CE
Shipping calculated at checkout
SKU: 210-98065A
800 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

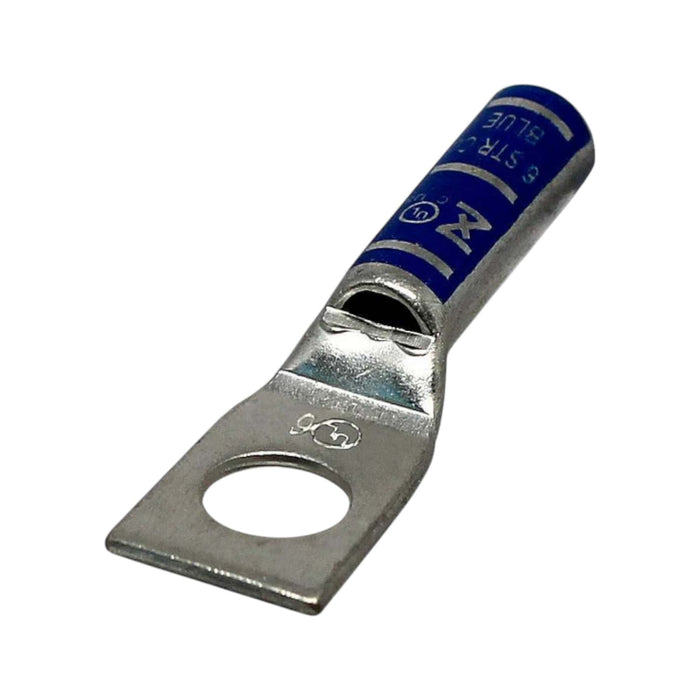

The Conversions Tech Copper Long Barrel One Hole Compression Lug terminates 6 AWG conductors to 1/4-inch studs. Engineered for power distribution panels, industrial machinery, and construction projects where secure, high-conductivity connections are required. The long barrel design provides extended contact surface for enhanced mechanical stability and electrical performance. Electro-tin plating delivers corrosion resistance, while the blue color code enables quick wire size identification in the field.
Specifications
- Wire Size: 6 AWG
- Stud Size: 1/4" (6.35mm)
- Terminal Material: Tin-plated copper
- Overall Length: 44.4mm (1.75") / 2" (marketing spec)
- Barrel Length: 1.125"
- Neck Length: 18.4mm (0.72")
- Outer Diameter: 11.4mm (0.45")
- Inner Diameter: 7.9mm (0.31")
- Hole Diameter: 5.8mm (0.23")
- Width: 22.8mm (0.90")
- Thickness: 1.9mm (0.07")
- Hole Spacing: 7.1mm (0.28")
- Pad Size: 0.68" L x 0.411" W x 0.087" thick
- Pad Holes: 1
- Die Index: I-24
- Barrel Type: Long barrel, chamfered entry
- Color Code: Blue
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Max Amp Rating: 65A
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
Cross-Reference
Equivalent to long barrel compression lug form factors from major manufacturers including Burndy, Panduit, and Ilsco series. Provides comparable electrical and mechanical performance at reduced cost for high-volume installations.
FAQ
What crimping tool and die are required for this lug?
Use a compression tool with I-24 die index. Verify die alignment before crimping to ensure full barrel compression and proper electrical contact.
Is this lug rated for 90°C conductor ampacity?
Yes. The 90°C temperature rating supports full ampacity of 6 AWG copper per NEC tables when installed in appropriate conditions. Always verify application-specific derating requirements.
Can this lug be used in medium voltage applications?
The 35 kV voltage rating suits many industrial power distribution applications. Confirm specific system voltage, insulation requirements, and clearances against your engineering specifications.
