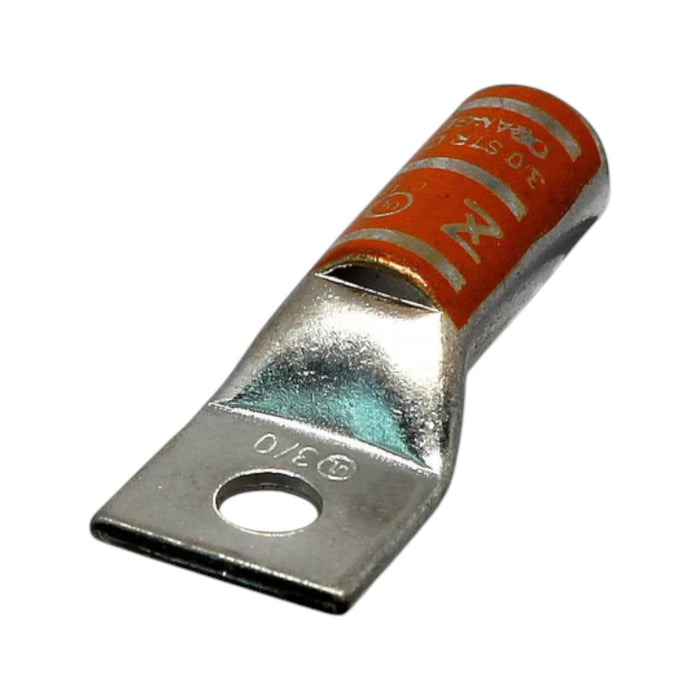

Copper Long Barrel One Hole Compression Lug 3/0 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98072
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech robust copper compression lug engineered for secure electrical connections. Designed for a conductor size of 3/0, it features a 1/4-inch bolt size and a long barrel with tin plating to ensure reliable performance. The vibrant orange color code makes for easy identification, streamlining efficient installations. Its absence of a sight window enhances the design for optimal performance, making it a dependable choice for a variety of electrical applications.
Key Features
- Robust Copper Construction: Ensures high conductivity and long-term durability for secure electrical connections.
- 3/0 Conductor Size: Designed for 3/0 gauge conductors, making it ideal for medium to large wiring applications.
- 1/4-inch Bolt Size: Features a 1/4-inch bolt hole, providing a secure attachment point for reliable installation.
- Long Barrel Design: Offers a larger crimping area for a more secure, stable electrical connection.
- Tin-Plated Finish: Provides resistance to corrosion, ensuring a longer lifespan even in challenging environments.
- Orange Color Code: The orange color makes it easy to identify the lug's size, improving installation efficiency.
-
Streamlined Design (No Sight Window): The absence of a sight window ensures a clean, compact design without sacrificing performance.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Orange |
| Overall Length | 3.189 Inch |
| Barrel Length | 1.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 3/0 AWG |
| Stud Size | 1/4 Inch |
| Die Index | I-50 |
| Pad Size | 1.25 Inch L X 0.885 Inch W X 0.125 Inch Thk |
| Pad Holes | 1 |
| Barrel Type | Long Barrel |
| Insulation ID/OD | 0.484 Inch ID X 0.609 Inch OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90 Deg C |
