Long Barrel Compression Lug 2 AWG #10 Stud Dual Hole | 35kV 90°C UL/CE
Shipping calculated at checkout
SKU: 210-98088A
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

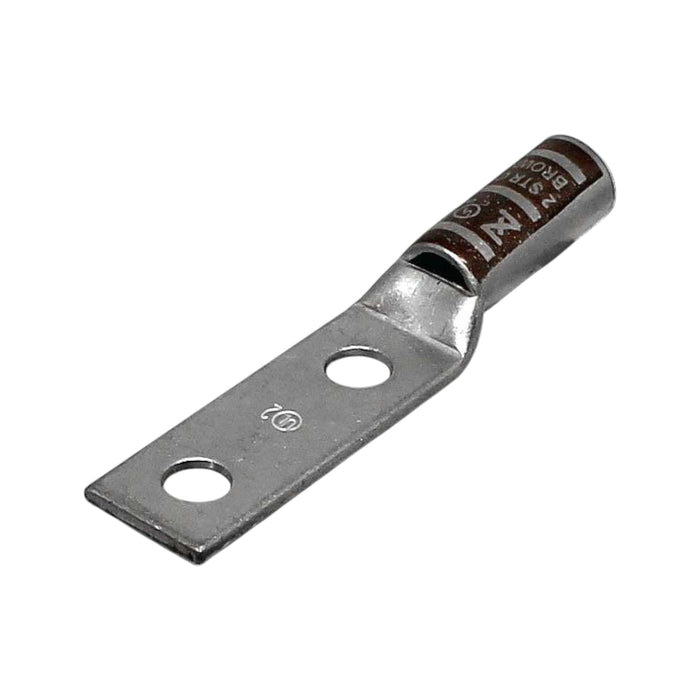

The 2 AWG Long Barrel Compression Lug is engineered for secure, high-current terminations in switchgear, distribution panels, solar arrays, and industrial grounding systems. The long barrel design maximizes conductor engagement and crimp contact area, reducing resistance and heat generation under load. Dual pad holes with 1-inch spacing provide installation flexibility for multiple connection configurations.
Specifications
- Wire Size: 2 AWG
- Stud Size: #10
- Color Code: Brown
- Overall Length (L): 63.4 mm (2.50")
- Neck Length (L1): 34.3 mm (1.35")
- Barrel Length (L2): 19.1 mm (0.75")
- Outer Diameter (D): 15.9 mm (0.63")
- Inner Diameter (D1): 10.8 mm (0.43")
- Hole Diameter (D2): 8.5 mm (0.34")
- Width (B): 24.5 mm (0.97")
- Hole Spacing (E): 5.6 mm (0.22")
- Thickness (F): 2.2 mm (0.09")
- Terminal Material: Tin-Plated Copper
- Temperature Rating: 90 °C
- Voltage Rating: 35 kV
- Maximum Amp Rating: 170 A
- Certifications: UL Recognized, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to long barrel two-hole compression lug form factors from Crouse-Hinds and Appleton, offering comparable electrical performance and dimensional specifications at reduced cost.
FAQ
What crimping die is required for this lug?
Use a compression tool with dies sized for 2 AWG long barrel lugs. Verify die compatibility with your specific crimp tool manufacturer.
Is this lug suitable for wet locations?
The electro-tin plated copper construction provides corrosion resistance. Verify enclosure ratings and local code requirements for wet location installations.
What does the 35 kV rating indicate?
The 35 kV rating specifies maximum voltage for high-voltage applications. Confirm system voltage requirements and applicable NEC or local code provisions for your installation.
