Conversions Technology Copper Long Barrel Two Hole Compression Lugs 1 AWG 1/4-inch Bolt Size

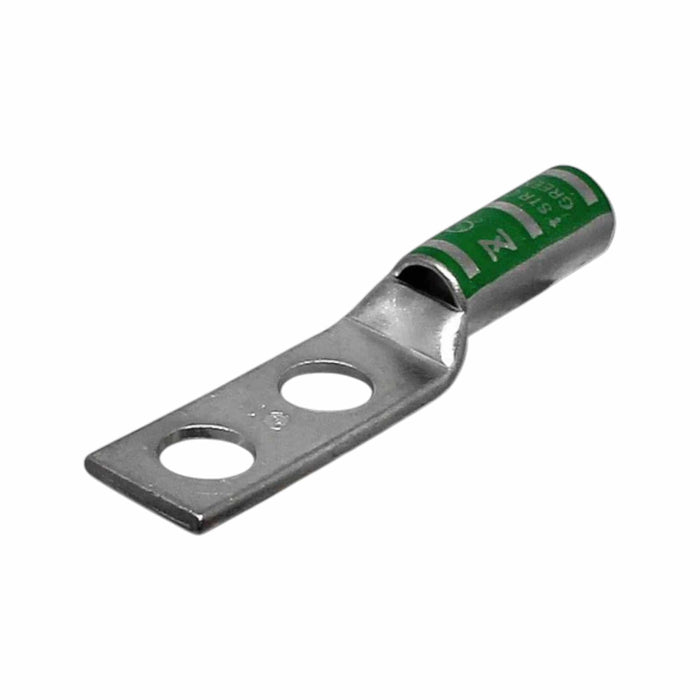

Copper Long Barrel Two Hole Compression Lugs 1 AWG 1/4-inch Bolt Size

by Conversions Technology
Availability:
1000 in stock, ready to be shipped
$1.52 - $1.52
$1.52
$1.52 - $1.52
$1.52
Request Distributor or Volume Pricing
SKU 210-98091A

The Conversions Tech 2-Hole Lug is a dependable copper compression lug designed for secure electrical connections. With a conductor size of 1, 1/4-inch bolt size, and a long barrel, this tin-plated lug facilitates efficient crimping, featuring a distinctive green color code for easy identification.

Key Features

  • Designed for 1 AWG conductors - Specifically made to accommodate 1 AWG gauge cables for secure electrical connections.
  • 1/4-inch bolt size - Standard bolt size for stable and reliable attachment.
  • Long barrel construction - Enhances crimping efficiency, providing a strong and durable connection.
  • Tin-plated finish - Offers corrosion resistance, ensuring long-lasting performance in various environments.
  • Green color code - Easily identifiable for quick and accurate conductor size identification.
  • Two holes for connection - Provides flexibility and versatility for multiple attachment points in installations.

Technical Specifications

Material Seamless Electro-Tin Plated Copper
Color Green
Overall Length 3.142 Inches
Barrel Length 1.375 Inches
Conductor Material Copper
Voltage Rating 35 kV
Conductor Size 1 AWG
Stud Size 1/4 Inch
Die Index I-37
Pad Size 1.437 Inches (L) x 0.673 Inch (W) x 0.109 Inch (Thk)
Pad Hole(s) 2
Pad Hole Spacing 5/8 Inch
Barrel Type Long
ID X OD 0.359 Inch x 0.468 Inch
Cable Entry Type Chamfered Entry
Temperature Rating 90°C
