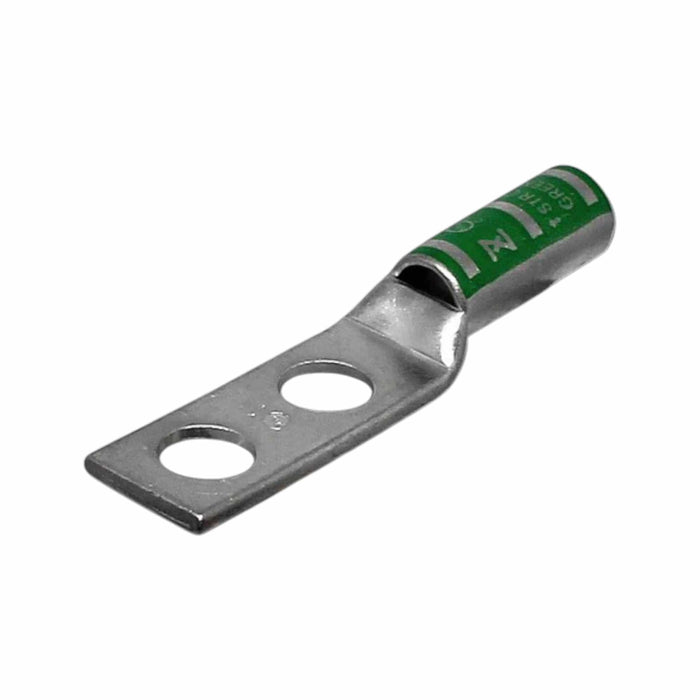

Long Barrel Two-Hole Compression Lug 1 AWG 1/2" Stud | 35kV 90°C Tin-Plated
Shipping calculated at checkout
SKU: 210-98093
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech long barrel two-hole compression lug is engineered for secure termination of 1 AWG copper conductors in industrial power distribution, switchgear, and utility applications. The extended barrel design maximizes contact surface area for high-integrity crimped connections, while the tin-plated seamless copper construction resists oxidation and maintains conductivity in demanding environments.
Specifications
- Conductor Size: 1 AWG
- Stud/Bolt Size: 1/2 Inch
- Pad Holes: 2
- Pad Hole Spacing: 1-3/4 Inches
- Pad Dimensions: 3" (L) x 0.75" (W) x 0.109" (Thk)
- Barrel Type: Long
- Barrel Length: 1.375 Inches
- Barrel ID x OD: 0.359" x 0.468"
- Overall Length: 4.705 Inches
- Material: Seamless Electro-Tin Plated Copper
- Conductor Material: Copper
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-37
- Cable Entry: Chamfered Entry
- Color Code: Green
Cross-Reference
Equivalent to long barrel two-hole compression lug form factors from major manufacturers. Specified by Conversions Tech's US engineering team and built to specification by certified partner factories.
FAQ
What crimping die do I need for this lug?
Use die index I-37. Verify your crimping tool manufacturer's compatibility chart before installation.
Is this lug rated for 35kV applications?
Yes, the 35kV voltage rating applies to the lug itself. Always verify your complete termination assembly meets system voltage requirements per NEC and local utility standards.
Why does this lug have two holes?
The dual-hole pad design distributes mechanical load and provides redundant fastening for high-vibration environments or heavy-current connections requiring additional stability.
