Long Barrel Two-Hole Compression Lug 1/0 AWG 1/2" Stud | 35kV 90°C
Shipping calculated at checkout
SKU: 210-98097
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

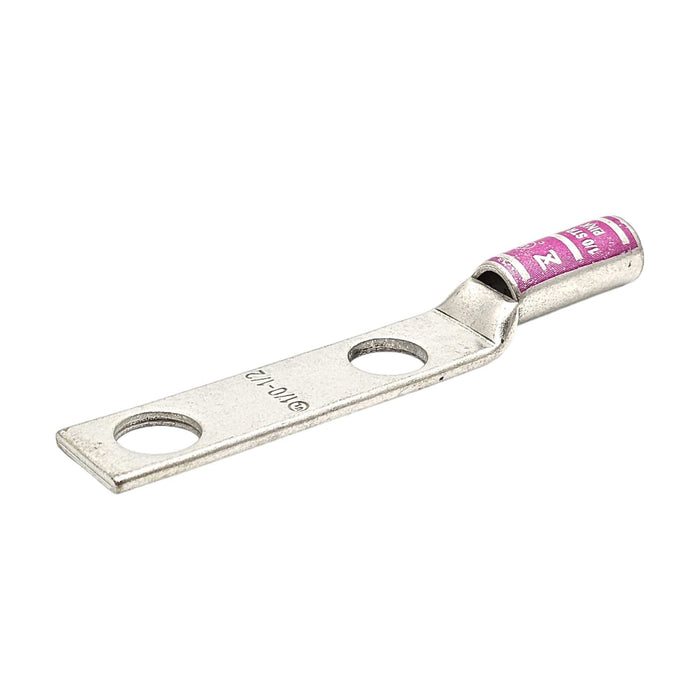

The Conversions Tech Copper Long Barrel Two-Hole Compression Lug is engineered for 1/0 AWG copper conductors in medium-voltage and heavy-current applications. The long barrel design provides extended contact surface for mechanical stability, while the dual-hole pad with 1-3/4 inch spacing allows secure mounting to bus bars or equipment terminals. The electro-tin plated copper construction delivers corrosion resistance and maintains conductivity in industrial electrical environments, switchgear terminations, and power distribution systems.
Specifications
- Conductor Size: 1/0 AWG
- Material: Electro-Tin Plated Copper
- Barrel Type: Long
- Barrel Length: 1.5 inches
- Barrel Size: Inner Diameter 0.39 inches, Outer Diameter 0.515 inches
- Cable Entry Type: Chamfered Entry
- Stud Size: 1/2 inch
- Pad Holes: 2
- Pad Hole Spacing: 1-3/4 inches
- Pad Size: 3 inches L x 0.738 inches W x 0.125 inches Thk
- Overall Length: 4.856 inches
- Voltage Rating: 35 kilovolts
- Temperature Rating: 90°C
- Die Index: I-42
- Color: Pink
Cross-Reference
Equivalent to long-barrel two-hole compression lug form factors used in medium-voltage termination systems. Compatible with tooling and installation practices for standard industrial compression lugs at lower cost than comparable branded alternatives.
FAQ
What crimping tool and die are required for this lug?
Use die index I-42. Verify your compression tool manufacturer's chart for 1/0 AWG long-barrel copper lugs to confirm compatibility.
Is this lug rated for medium-voltage applications?
Yes. The 35kV voltage rating suits medium-voltage terminations. Confirm installation meets NEC and local code requirements for the specific application voltage class.
Why choose a long barrel over a standard barrel lug?
The 1.5-inch barrel length increases surface contact area and mechanical grip on the conductor, reducing loosening from thermal cycling and vibration in heavy-current circuits.
