1-Hole Copper Compression Lug 2/0 AWG 3/8" Stud | 90°C, 265A, UL Listed
Shipping calculated at checkout
SKU: 210-98022
988 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

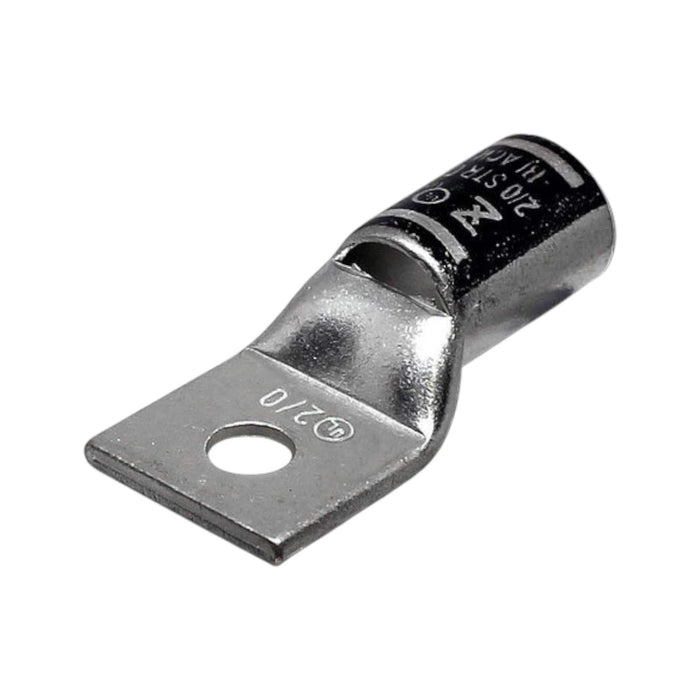

The Conversions Tech 1-Hole Copper Compression Lug is a short-barrel terminal engineered for 2/0 AWG conductors in power distribution, panelboard, and equipment grounding applications. The straight barrel design with chamfered cable entry facilitates installation, while the integrated sight window allows visual confirmation of conductor insertion depth. Tin-plated copper construction provides conductivity and corrosion resistance for industrial and commercial electrical systems.
Specifications
- Conductor Size: 2/0 AWG (also accommodates 4 AWG to 2/0 AWG)
- Stud/Bolt Size: 3/8"
- Pad Holes: 1
- Pad Dimensions: 0.875" L × 0.811" W × 0.125" thick
- Barrel Type: Standard, straight barrel with sight window
- Material: Electro-tin plated copper
- Color Code: Black
- Die Index: I45
- Cable Entry: Chamfered
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Maximum Ampacity: 265A
- Dimensional Data: L=48.8mm (1.90"), L1=21.1mm (0.80"), D=20.8mm (0.80"), D1=14.2mm (0.60"), D2=11.7mm (0.50"), B=21.3mm (0.80"), E=10.4mm (0.40"), F=2.5mm (0.10")
- Certifications: UL Listed, CE Certified, RoHS Compliant
Cross-Reference
Equivalent to standard one-hole copper compression lugs from major manufacturers. Compatible with tooling and installation practices used with Panduit, Burndy, and Ilsco short-barrel terminals. Specifications match industry-standard 2/0 AWG 3/8" stud compression lugs at reduced cost.
FAQ
What crimping tool die is required for this lug?
This lug requires die index I45. Verify your crimping tool manufacturer's die chart to confirm compatibility with I45 dies before installation.
Can this lug be used for equipment grounding conductors?
Yes. The tin-plated copper construction and 90°C temperature rating meet requirements for equipment grounding conductor terminations. Ensure installation follows NEC Article 250 requirements for grounding and bonding.
Is this lug rated for medium voltage applications?
The lug is rated for 35 kV. Verify compatibility with your cable insulation rating and overall system voltage classification. Proper stress control and insulation methods per applicable standards are required for medium voltage terminations.
