1-Hole Compression Lug 750 MCM 1/2" Stud | 35 kV, 90°C, I-106
Shipping calculated at checkout
SKU: 210-09820
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

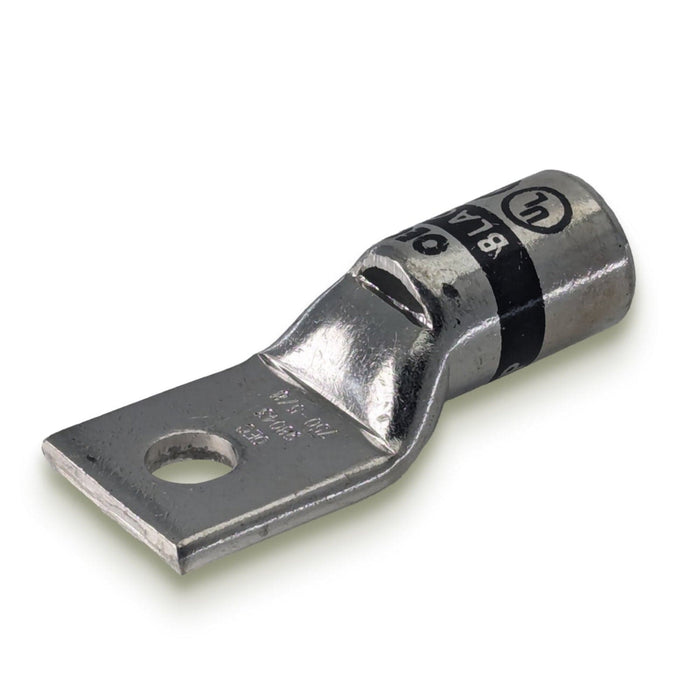

The Conversions Tech 1-Hole Compression Lug is engineered for heavy-duty electrical applications requiring secure termination of large-gauge copper conductors. This 750 MCM short barrel lug features a 1/2-inch stud size for compatibility with standard hardware, a sight window for visual verification of proper conductor insertion, and seamless electro-tin plated copper construction for corrosion resistance. The black color code provides quick field identification. Commonly used in switchgear, transformers, panelboards, and industrial power distribution where reliable high-current connections are critical.
Specifications
- Conductor Size: 750 MCM
- Stud/Bolt Size: 1/2 inch
- Material: Seamless Electro-Tin Plated Copper
- Barrel Type: Standard, Straight with Chamfered Entry
- Barrel Dimensions: 1.031 inch ID x 1.313 inch OD
- Barrel Length: 1.5 inches
- Pad Size: 1.437 inches L x 1.901 inches W x 0.282 inches Thk
- Pad Holes: 1
- Overall Length: 3.839 inches
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- Die Index: I-106
- Color Code: Black
- Sight Window: Equipped
- Conductor Material Compatibility: Copper
Cross-Reference
Equivalent to standard one-hole compression lug form factors from major manufacturers including Burndy, Panduit, and Ilsco series. Conversions Tech specifications match industry-standard 750 MCM short barrel designs at competitive distributor pricing.
FAQ
What crimping tool is required for this lug?
The I-106 die index specifies compatibility with crimping tools designed for this die code. Verify your tool manufacturer's die chart for I-106 compatibility before installation.
Is this lug suitable for outdoor or corrosive environments?
The seamless electro-tin plated copper construction provides corrosion resistance. The 90°C temperature rating and 35 kV voltage rating support use in demanding applications; verify specific environmental requirements against your installation code.
Can I use this with aluminum conductors?
No. The conductor material specification is copper. For aluminum conductors, use lugs specifically rated for aluminum or dual-rated copper/aluminum with appropriate antioxidant compound.
