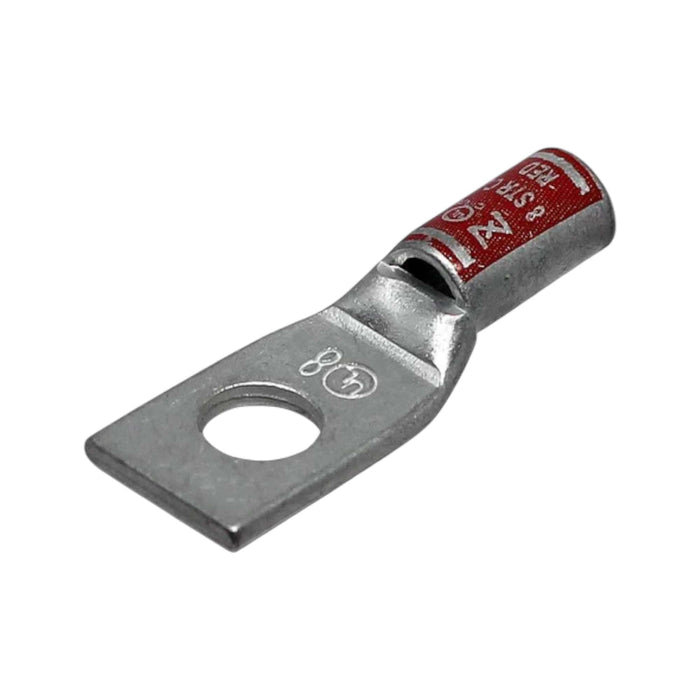

Copper Short Barrel One Hole Compression Lugs 8 AWG #10 Bolt Size
Shipping calculated at checkout
SKU: 210-98001
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
8 AWG Copper Compression Lug | 1-Hole | #10 Stud | Standard Barrel | Red | Conversions Tech
The Conversions Tech Copper Compression Lug is engineered for precision and reliability, accommodating 8 AWG conductors with a #10 bolt size for secure and efficient electrical terminations. Its one-hole design ensures quick installation and dependable connectivity, while the sight window allows for easy inspection to verify proper wire insertion. Constructed from high-conductivity copper and finished with a tin-plated coating, this lug offers corrosion resistance, consistent electrical performance, and durability in demanding environments.
Color-coded in red for easy identification, this lug meets UL, CE, and RoHS compliance standards and is ideal for professional electrical installations requiring high performance and precision.
Key Features
- High-Conductivity Copper: Ensures maximum electrical efficiency and secure 8 AWG wire connections.
- #10 Bolt Size: Provides a stable, vibration-resistant connection to terminals and busbars.
- One-Hole Design: Enables fast, simplified installation for single-point terminations.
- Sight Window: Allows visual verification of conductor seating for guaranteed connection integrity.
- Tin-Plated Finish: Protects against corrosion while enhancing conductivity and long-term performance.
- Red Color Code: Simplifies circuit identification for efficient wiring and maintenance.
- UL, CE, and RoHS Certified: Meets international standards for safety, performance, and sustainability.
Technical Specifications
| Wire Size | 8 AWG |
| Stud Size | #10 Stud |
| Color | Red |
| Overall Length (L) | 31.1 mm (1.20") |
| Neck Length (L1) | 15.2 mm (0.60") |
| Outer Diameter (D) | 11.2 mm (0.44") |
| Inner Diameter (D1) | 7.1 mm (0.28") |
| Hole Diameter (D2) | 4.8 mm (0.19") |
| Width (B) | 12.7 mm (0.50") |
| Hole Spacing (E) | 5.6 mm (0.22") |
| Thickness (F) | 1.9 mm (0.08") |
| Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Max Electrical Rating | 35 kV |
| Max Electrical Current | 50 A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Applications
- Control Panels: Ideal for compact installations requiring quick and secure terminations.
- Power Distribution: Ensures reliable performance in feeders and branch circuits.
- Renewable Energy Systems: Supports solar and energy storage wiring for consistent, safe conductivity.
- Commercial & Industrial Projects: Suitable for OEM equipment, MCCs, and power-management devices.
Frequently Asked Questions (FAQs)
1. What conductor size is this lug designed for?
This lug is designed for 8 AWG copper conductors.
2. Does it include a sight window?
Yes, the built-in sight window provides visual confirmation of conductor seating.
3. Can it be used for high-voltage applications?
Yes, it is rated for up to 35 kV and 90°C, ensuring reliability under demanding conditions.
4. What material is it made from?
Manufactured from seamless tin-plated copper for superior conductivity and corrosion protection.
5. Is it color-coded for easy identification?
Yes, it features a red color code for fast wire size identification during installation.
