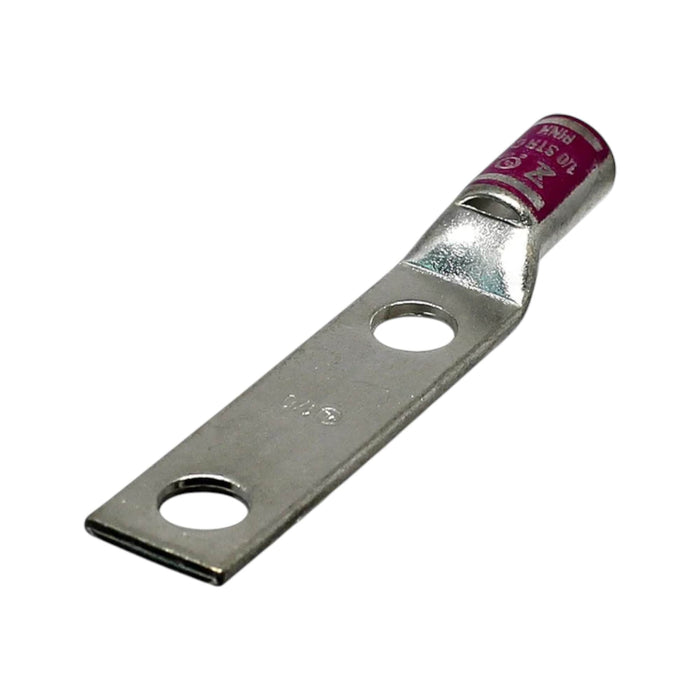

Copper Short Barrel Two Hole Compression Lugs 1/0 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09936
850 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Compression Lug is a durable and high-performance connector designed for the secure termination of 1/0 AWG conductors. With a 3/8-inch bolt size and 2-hole configuration, it provides a strong, stable connection ideal for a range of electrical applications. The standard barrel design allows for easy crimping, while the sight window ensures proper installation by providing clear visibility during the crimping process. The tin-plated finish enhances corrosion resistance, and the distinctive pink color code allows for quick and easy identification, making it a reliable and efficient choice for electrical connections in demanding environments.
Key Features
-
Seamless Electro-Tin Plated Copper Material: High-quality construction for reliable electrical conductivity and corrosion resistance.
-
Pink Color: Distinctive pink color code for quick identification in electrical systems.
-
3.043 Inch Overall Length: Optimal size for versatile use in various electrical applications.
-
0.75 Inch Barrel Length: Balanced barrel length for secure conductor termination.
-
Conductor Material: Copper: Utilizes copper, a highly conductive and durable material.
-
35 kV Voltage Rating: Suitable for applications with higher voltage requirements.
-
1/0 AWG Conductor Size: Accommodates 1/0 AWG wire size for diverse wiring needs.
-
3/8 Inch Stud Size: Compatible with standard 3/8-inch stud sizes for ease of installation.
-
I-42 Die Index: Designated die index for efficient and precise crimping.
-
1.937 Inch L X 0.738 Inch W X 0.125 Inch Thk Pad Size: Appropriate pad dimensions for secure electrical connections.
-
2 Pad Hole(S): Dual pad holes for flexibility in conductor termination.
-
1 Inch Pad Hole Spacing: Standardized spacing for consistent and organized installations.
-
Standard Barrel Type: Conforms to the industry standard barrel design for compatibility.
-
Size 0.39 Inch ID X 0.515 Inch OD: Specific inner and outer diameters for precise connections.
-
Barrel Type Chamfered Entry: Facilitates smooth and easy wire insertion during installation.
- Temperature Rating 90 Deg C: Suitable for applications with elevated temperature requirements.
Technical Specifications
| Wire Size | 1/0 AWG |
|---|---|
| Color | Pink |
| Overall Length (L) | 73.1mm (2.88") |
| Length 1 (L1) | 46.5mm (1.83") |
| Length 2 (L2) | 25.4mm (1.00") |
| Diameter (D) | 18.4mm (0.72") |
| Diameter 1 (D1) | 12.9mm (0.51") |
| Diameter 2 (D2) | 10.1mm (0.40") |
| Width (B) | 20.3mm (0.80") |
| Height (E) | 10.4mm (0.41") |
| Thickness (F) | 2.7mm (0.10") |
| Terminal Material | Tin-Plated Copper |
| Stud Size | 3/8" |
| Temperature Rating | 90°C |
| Voltage Rating | 35 kV |
| Max Amp Rating | 150 Amps |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
