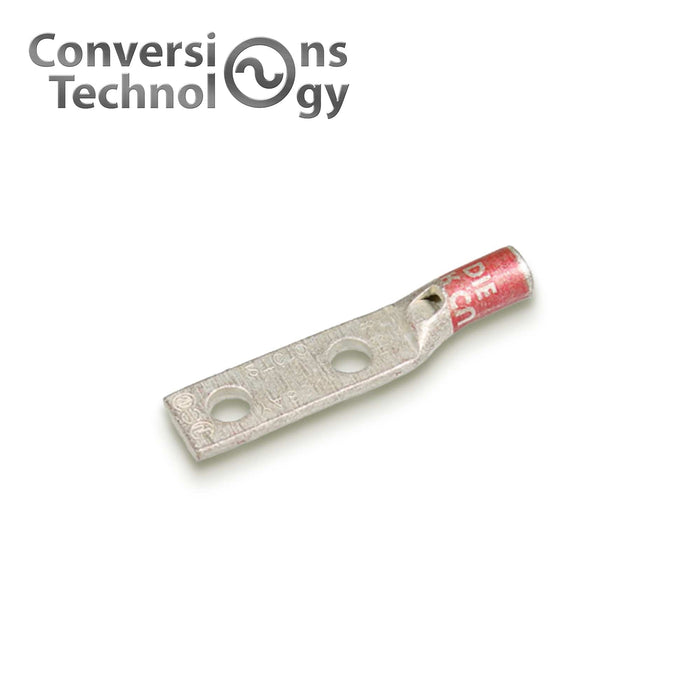

Copper Short Barrel Two Hole Compression Lugs 8 AWG #10 Bolt Size
Shipping calculated at checkout
SKU: 210-98044
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech high-quality compression lug designed for reliable electrical connections. It accommodates an 8 AWG conductor size and features 2 holes for secure fastening with #10 bolts, ensuring a strong and stable connection. The lug includes a standard barrel with an integrated sight window, allowing for easy inspection during installation. Its tin-plated finish provides enhanced corrosion resistance, while the red color code improves identification and ensures compatibility with standard color-coding systems. This lug offers efficient and durable performance, making it a trusted choice for a variety of electrical applications.
Key Features
- Copper Construction – Offers excellent electrical conductivity for reliable and efficient connections.
- 8 AWG Conductor Size – Specifically designed for 8 AWG wire, ideal for smaller electrical conductors.
- #10 Bolt Size – Features a standard #10 bolt size for secure and stable attachment.
- Two-Hole Design – Dual holes provide added stability and secure electrical connections.
- Standard Barrel – Standard barrel ensures easy wire insertion and consistent compression.
- Sight Window – Integrated sight window allows for visual inspection to ensure proper crimping and installation.
-
Tin Plating & Red Color Code – Tin plating enhances corrosion resistance, and the red color code ensures quick identification and compatibility with color-coding systems.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Red |
| Overall Length | 1.945 Inch |
| Barrel Length | 0.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 8 AWG |
| Stud Size | #10 |
| Die Index | I-21 |
| Pad Size | 1.25 Inch Length x 0.374 Inch Width x 0.093 Inch Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 5/8 Inch |
| Barrel Type | Standard |
| Inner Diameter | 0.179 Inch |
| Outer Diameter | 0.272 Inch |
| Barrel Entry | Chamfered |
| Temperature Rating | 90°C |
