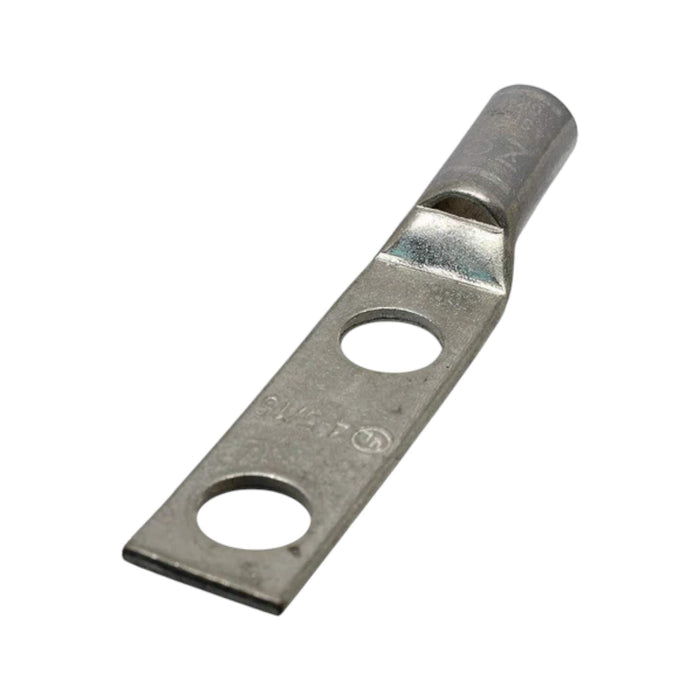

Copper Short Barrel Two Hole Compression Lugs 4 AWG 5/16 Inch Bolt Size
Shipping calculated at checkout
SKU: 210-09919
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech robust copper connector designed for a range of electrical applications. It supports a 4 AWG conductor size and features two holes, a 5/16-inch bolt size, and 1-inch hole spacing, ensuring secure and efficient electrical connections. The lug includes a standard barrel and a built-in sight window for easy visual inspection. Its tin-plated finish offers superior corrosion resistance, while the distinctive gray color code allows for quick identification and compatibility with standard color-coding systems. This connector guarantees reliable and long-lasting performance in various electrical settings.
Key Features
- Copper Construction – Provides reliable electrical conductivity and ensures long-term performance in electrical systems.
- 4 AWG Conductor Size – Specifically designed for 4 AWG wire, making it suitable for medium to larger conductors.
- 5/16-inch Bolt Size – Standard bolt size for secure and stable connections.
- 1-inch Hole Spacing – Offers optimal spacing for secure attachment points, ensuring reliable electrical connections.
- Standard Barrel – Features a standard barrel for easy wire insertion and consistent compression.
- Sight Window – Allows for visual inspection of the crimped connection, ensuring proper installation and quality control.
-
Tin Plating & Gray Color Code – Tin plating enhances corrosion resistance, while the gray color code ensures quick identification and compatibility with standard color-coding systems.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Gray |
| Overall Length | 2.671 Inches |
| Barrel Length | 0.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 4 AWG |
| Stud Size | 5/16 Inch |
| Die Index | I-29 |
| Pad Size | 1.937 Inches Length x 0.486 Inches Width x 0.093 Inches Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Standard |
| Inner Diameter | 0.25 Inch |
| Outer Diameter | 0.343 Inch |
| Cable Entry | Chamfered Type |
