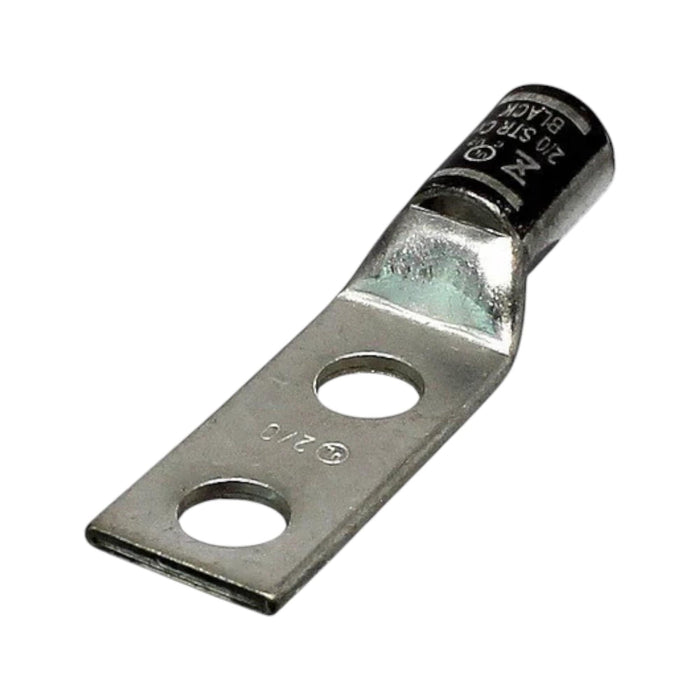

Copper Short Barrel Two Hole Compression Lugs 2/0 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09941
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech robust copper compression lug designed for the secure termination of 2/0 AWG conductors. Featuring a 3/8-inch bolt size and 2 holes, it ensures a strong and reliable connection. The lug is equipped with a standard barrel and an integrated sight window for easy visual inspection of the connection. Its tin-plated finish provides enhanced corrosion resistance, while the distinctive black color code offers quick identification and ensures compatibility with standard color-coding systems. This lug guarantees reliable and efficient electrical connections for a variety of applications.
Key Features
- Copper Construction – Provides excellent electrical conductivity and long-lasting durability for reliable connections.
- 2/0 Conductor Size – Designed specifically for 2/0 AWG wire, ensuring compatibility with medium-sized conductors.
- 3/8-inch Bolt Size – Standard bolt size that ensures a secure and efficient attachment for reliable performance.
- 2-Hole Design – Offers two secure attachment points for stable and effective connections.
- Standard Barrel – Features a standard barrel shape for consistent wire insertion and compression.
- Sight Window – Enables easy visual inspection of the crimped connection, ensuring correct installation.
-
Tin Plating & Black Color Code – Tin plating enhances corrosion resistance, while the black color code ensures easy identification and compatibility with standard color-coding systems.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Black |
| Overall Length | 3.083 Inches |
| Barrel Length | 0.75 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 2/0 AWG |
| Stud Size | 3/8 Inch |
| Die Index | I-45 |
| Pad Size | 1.937 Inch Length x 0.811 Inch Width x 0.125 Inch Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Standard |
| ID x OD Size | 0.437 Inch Inner Diameter x 0.562 Inch Outer Diameter |
| Entry Type | Chamfered |
| Temperature Rating | 90°C |
