Copper Short Barrel Two Hole Compression Lugs 2/0 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09942
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

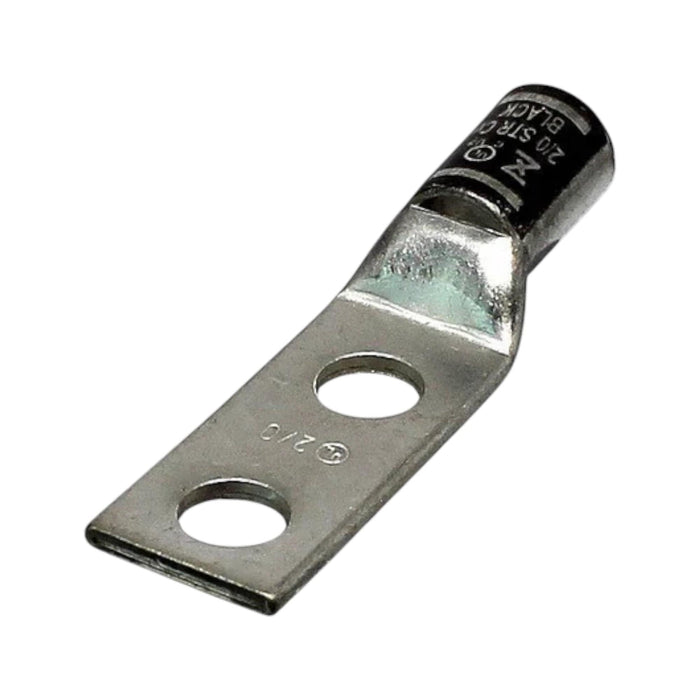

The Conversions Tech 2-hole lug is a high-quality copper compression lug designed for secure connections in electrical systems. It is compatible with a 2/0 conductor size and features a 1/2-inch bolt size, ensuring reliable conductivity and durability. The lug includes a standard barrel, a built-in sight window for easy visual inspection, and is tin-plated for enhanced corrosion resistance. The black color code provides easy identification and ensures compatibility with standard color-coding systems, making it a dependable choice for various electrical applications
Key Features
- Copper Construction – Ensures excellent electrical conductivity and long-lasting performance.
- 2/0 Conductor Size – Designed specifically for 2/0 wire, ensuring compatibility with medium conductors.
- 1/2-inch Bolt Size – Standard bolt size that ensures a secure and reliable connection.
- Standard Barrel – Features a standard barrel for consistent wire insertion and compression.
- Sight Window – Allows for easy visual inspection of the connection, ensuring proper crimping.
- Tin Plating – Provides enhanced corrosion resistance, improving the lug's durability and longevity.
-
Black Color Code – Offers quick identification and compatibility with color-coding systems for efficient use.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Black |
| Overall Length | 4.146 Inches |
| Barrel Length | 0.75 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 2/0 AWG |
| Stud Size | 1/2 Inch |
| Die Index | I-45 |
| Pad Size | 3 Inches Length x 0.811 Inch Width x 0.125 Inch Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1-3/4 Inches |
| Barrel Type | Standard |
| ID x OD Size | 0.437 Inch Inner Diameter x 0.562 Inch Outer Diameter |
| Barrel Entry | Chamfered |
| Temperature Rating | 90°C |
