Copper Short Barrel Two Hole Compression Lugs 3/0 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09943
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

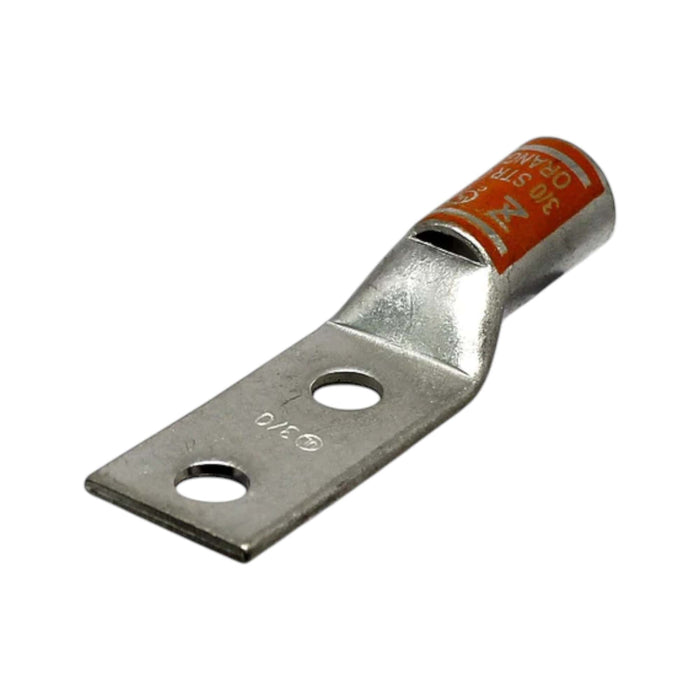

The Conversions Tech 2-hole lug is a high-quality copper compression lug designed for secure electrical connections. It is built to accommodate a 3/0 conductor size and features a 1/2-inch bolt size, a standard barrel, and an integrated sight window for easy visual inspection. The tin plating provides superior corrosion resistance, ensuring the lug's durability and long-lasting performance. The orange color code allows for easy identification, making it compatible with standard color-coding systems. This lug is engineered to offer reliable performance and convenient inspection in various electrical applications.
Key Features
- Copper Construction – Ensures excellent electrical conductivity and reliable connections.
- 3/0 Conductor Size – Ideal for 3/0 wire, designed for medium-sized conductors.
- 1/2-inch Bolt Size – Standard bolt size for a secure and efficient connection.
- Standard Barrel – Features a standard barrel shape for consistent performance in compression.
- Sight Window – Provides a visual inspection feature for easy verification of the crimped connection.
- Tin Plating – Enhances corrosion resistance, ensuring the lug's longevity even in harsh environments.
-
Orange Color Code – Easy identification and compatibility with standard color-coding systems for quick and clear recognition.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Orange |
| Overall Length | 4.189 Inches |
| Barrel Length | 0.75 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 3/0 AWG |
| Stud Size | 1/2 Inch |
| Die Index | I-50 |
| Pad Size | 3 Inches Length x 0.885 Inch Width x 0.125 Inch Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1-3/4 Inches |
| Barrel Type | Standard |
| ID x OD Size | 0.484 Inch Inner Diameter x 0.609 Inch Outer Diameter |
| Barrel Entry | Chamfered |
| Temperature Rating | 90°C |
