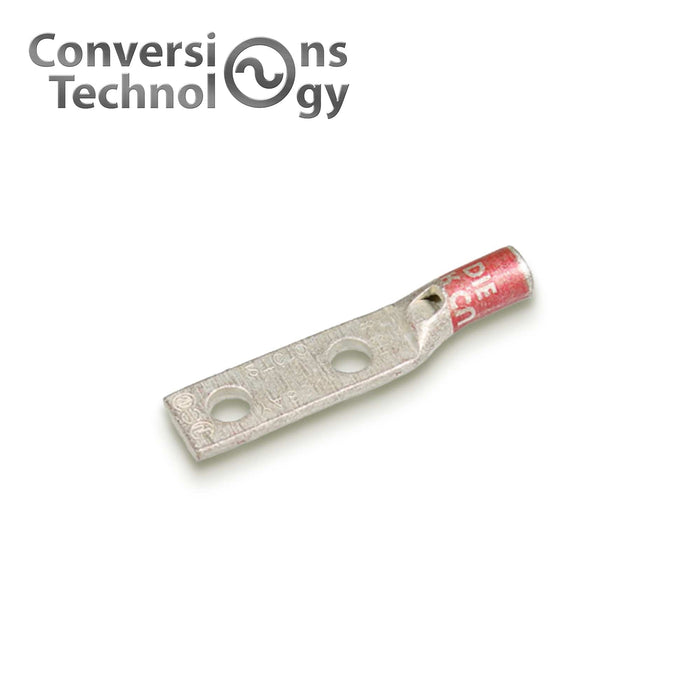

Copper Short Barrel Two Hole Compression Lugs 300 MCM 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98057
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech 2-Hole Lug is a high-quality copper compression lug designed for conductors up to size 300 AWG. Featuring a standard barrel, 1/2-inch bolt size, and a red color code for easy identification, this tin-plated lug ensures reliable performance. The inclusion of a sight window allows for visual inspection, providing confidence in secure electrical connections across various applications.
Key Features
- Designed for conductors up to 300 AWG - Accommodates 300 AWG conductors, providing secure and reliable connections for medium to high-performance electrical applications.
- Standard barrel design - Ensures efficient crimping and enhances connection stability for long-lasting performance.
- 1/2-inch bolt size - Compatible with 1/2-inch bolts, ensuring stable and secure attachment to electrical components.
- Distinctive red color code - Simplifies identification, making it easy to recognize the conductor size during installation.
- Tin-plated finish - Provides excellent corrosion resistance, enhancing durability and ensuring reliable performance in various environments.
- Sight window - Allows visual inspection, offering confirmation of secure connections during installation, adding extra assurance.
-
Ideal for various electrical applications - This lug is well-suited for use in industrial, commercial, and other demanding electrical systems, ensuring stability and security.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Red |
| Overall Length | 4.65 Inches |
| Barrel Length | 1.063 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 300 MCM |
| Stud Size | 1/2 Inch |
| Die Index | I-66 |
| Pad Size | 3 Inch Length x 1.189 Inch Width x 0.152 Inch Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1-3/4 Inch |
| Barrel Type | Standard |
| Insulation Diameter (ID) | 0.66 Inch |
| Outer Diameter (OD) | 0.812 Inch |
| Barrel Entry Type | Chamfered |
| Temperature Rating | 90°C |
