Copper Long Barrel Two Hole Compression Lugs 600 MCM 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98109
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

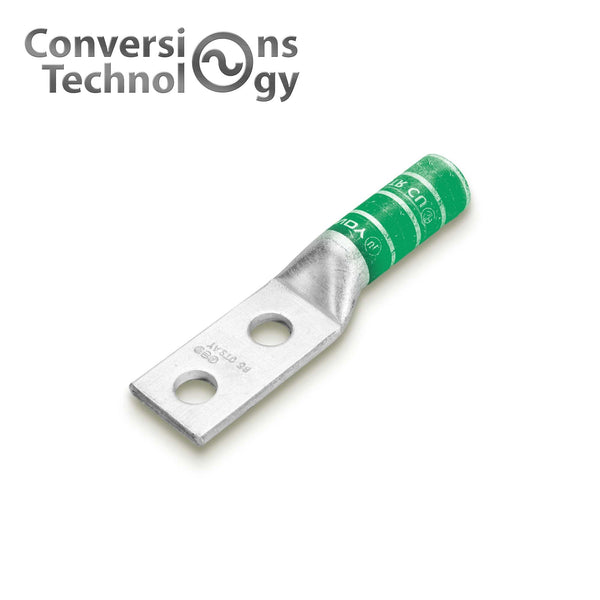

The Conversions Tech 2-Hole Copper Compression Lug is a robust connector designed for reliable electrical connections with 600 MCM conductors. Featuring two holes, a 1/2-inch bolt size, and a long barrel design, this tin-plated lug ensures secure and efficient connectivity. Its distinctive green color code provides easy identification, while the durable construction guarantees high performance and long-lasting reliability in demanding electrical applications.
Key Features
- Robust Copper Construction: Provides excellent conductivity and ensures secure, reliable electrical connections for 600 MCM conductors.
- Dual Holes and 1/2-Inch Bolt Size: Features two holes with a 1/2-inch bolt size for secure attachment to terminals or busbars, ensuring stable and dependable connections.
- Long Barrel Design: Enhances crimping, providing a strong and durable connection that resists vibration and loosening over time.
- Tin-Plated Finish: Offers superior corrosion resistance and enhances conductivity, ensuring long-lasting performance in demanding environments.
- Distinctive Green Color Code: Facilitates easy identification, streamlining the installation process and improving organization in electrical systems.
- High-Performance Reliability: Ideal for demanding electrical applications, ensuring secure, efficient, and reliable connections for critical systems.
Technical Specifications
| Material | Seamless Electro-Tin Plated High Strength Copper |
| Color | Green |
| Overall Length | 6.496 Inches |
| Barrel Length | 2.687 Inches |
| Conductor Material | Copper |
| Voltage Rating | 600 Volt to 35 Kilovolt |
| Conductor Size | 600 kcmil |
| Stud Size | 1/2 Inch |
| Die Index | I-94 |
| Pad Size | 3 Inches Length X 1.712 Inches Width X 0.267 Inches Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 1.75 Inch |
| Barrel Type | Long, Straight Barrel Type, Less Sight Hole |
| Cable Entry Type | Chamfered |
| Wire Strip Length | 2.749 Inches |
| Temperature Rating | 90°C |
