Copper Long Barrel Two Hole Compression Lugs 2/0 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98097C
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

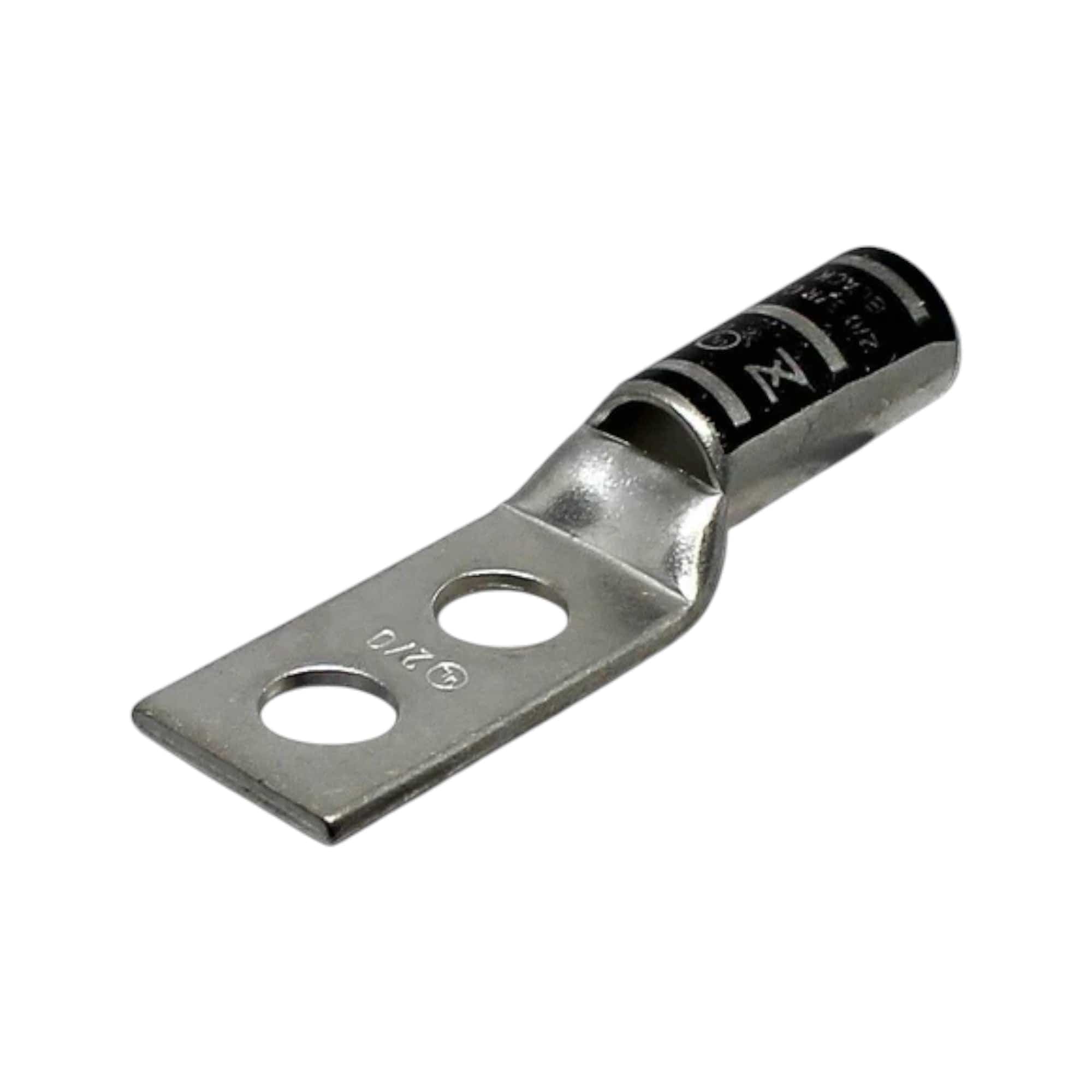

The Conversions Tech Copper Compression Lug is a durable connector designed for secure and efficient electrical connections with 2/0 AWG conductors. Featuring a long barrel, dual holes, and a 1/4-inch bolt size, this tin-plated lug ensures reliable, high-performance connections. Its sleek black color code enhances easy identification, making it an ideal choice for a wide range of demanding electrical applications.
Key Features
- Seamless Electro-Tin Plated Copper: Ensures a durable and corrosion-resistant construction.
- Long Barrel Design: Provides versatility for applications requiring extended barrel length.
- 2-Hole Configuration: Allows secure and stable connections for 2/0 AWG conductors.
- 1/4 Inch Bolt Size: Accommodates various stud sizes for flexibility in installation.
- 35 kV Voltage Rating: Suitable for applications requiring higher voltage capabilities.
- Black Color: Facilitates easy identification in electrical installations.
- No Sight Window: Designed without a sight window for a clean and streamlined appearance.
Technical Specifications
| Wire Size | 2/0 AWG |
| Stud Size | 1/4" |
| Color | Black |
| L (Overall Length) | 71.1mm (2.80") |
| L1 (Length 1) | 34.3mm (1.35") |
| L2 (Length 2) | 15.9mm (0.63") |
| D (Diameter) | 20.8mm (0.82") |
| D1 (Diameter 1) | 14.2mm (0.56") |
| D2 (Diameter 2) | 11.7mm (0.46") |
| B (Width) | 30.5mm (1.20") |
| E (Width E) | 7.1mm (0.28") |
| F (Thickness) | 2.5mm (0.10") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 265A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
