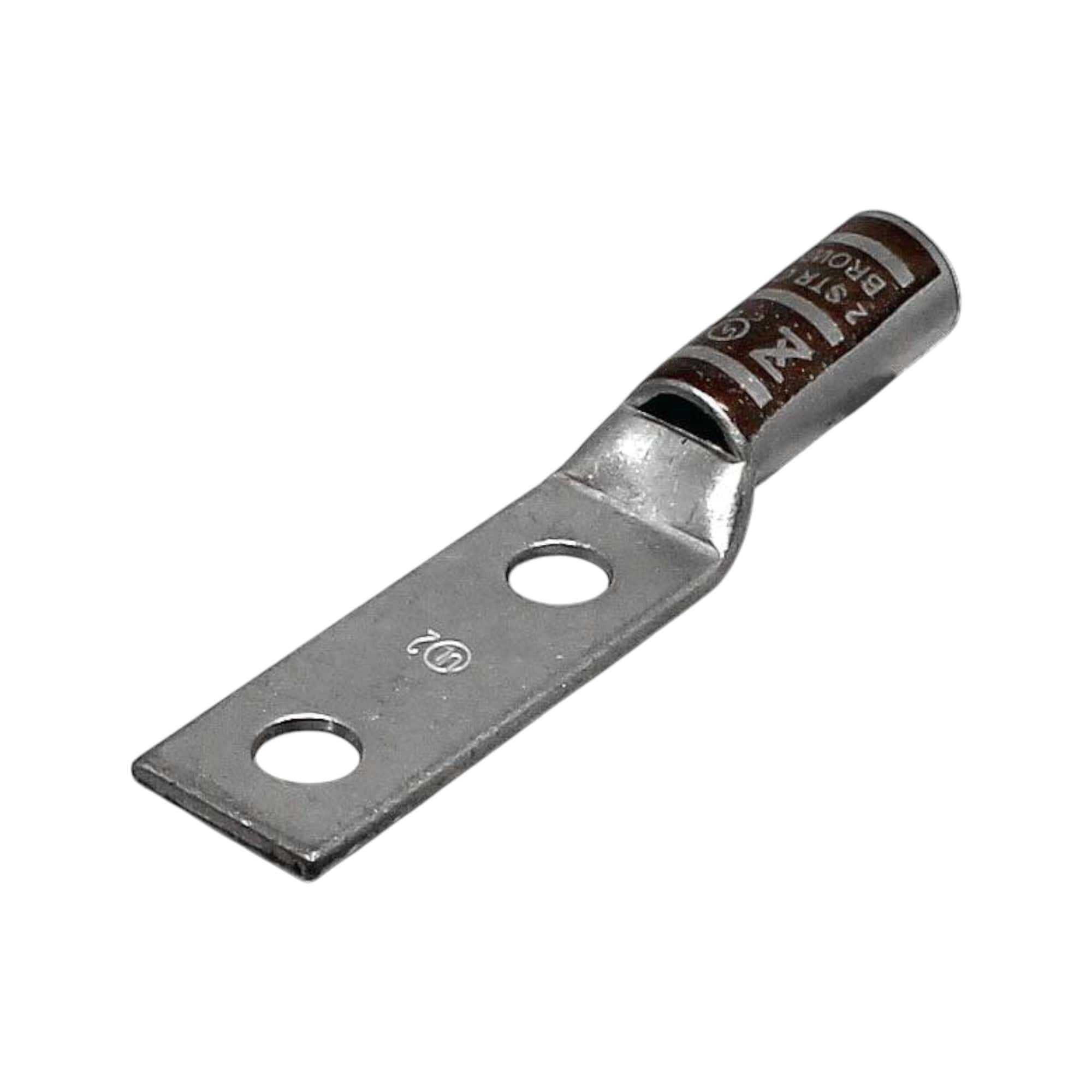

Copper Long Barrel Two Hole Compression Lugs 2 AWG #10 Bolt Size
Shipping calculated at checkout
SKU: 210-98088A
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Long Barrel Lug is designed for versatile use in a range of electrical applications. With a #10 bolt size and 1-inch hole spacing, it accommodates 2 AWG conductors, offering flexibility for various wiring needs. The long barrel construction simplifies installation, while the tin-plated finish ensures excellent corrosion resistance for long-lasting durability. The brown color code facilitates easy identification, and the absence of a sight window maintains a streamlined, sleek design. This lug ensures reliable, secure electrical connections across a wide array of settings.
Key Features
-
Seamless Electro-Tin Plated Copper Material: Provides high conductivity and corrosion resistance for reliable electrical connections.
-
Brown Color: Simplifies identification with a distinctive color code.
-
4.036 Inch Overall Length: Offers ample length for secure conductor termination.
-
1.125 Inch Barrel Length: Accommodates 2 AWG conductors for efficient crimping.
-
35 kV Voltage Rating: Suitable for applications requiring high voltage resistance.
-
2 AWG Conductor Size: Designed to handle 2 AWG conductors for versatility.
-
#10 Inch Stud Size: Compatible with common stud sizes for easy installation.
-
I-33 Die Index: Indicates compatibility information for proper crimping tools.
-
2.625 Inch L x 0.599 Inch W x 0.109 Inch Thk Pad Size: Provides a stable mounting surface for the lug.
-
2 Pad Hole(s): Allows flexibility in conductor termination and installation.
-
1 Inch Pad Hole Spacing: Facilitates consistent and efficient spacing in various applications.
-
Long Barrel Type: Enhances flexibility and ease of use during installation.
-
Size 0.312 Inch ID x 0.421 Inch OD: Accommodates specific wire dimensions for secure connections.
-
Barrel Type Chamfered Entry: Streamlines conductor insertion, improving installation efficiency.
- Temperature Rating 90 Deg C: Suitable for applications with elevated temperature requirements.
Technical Specifications
| Wire Size | 2 AWG |
|---|---|
| Stud Size | #10 Stud |
| Color | Brown |
| Overall Length (L) | 63.4mm (2.50") |
| Neck Length (L1) | 34.3mm (1.35") |
| Neck Length (L2) | 19.1mm (0.75") |
| Outer Diameter (D) | 15.9mm (0.63") |
| Inner Diameter (D1) | 10.8mm (0.43") |
| Hole Diameter (D2) | 8.5mm (0.34") |
| Width (B) | 24.5mm (0.97") |
| Hole Spacing (E) | 5.6mm (0.22") |
| Thickness (F) | 2.2mm (0.09") |
| Terminal Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35KV |
| Max Amp Rating | 170A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
