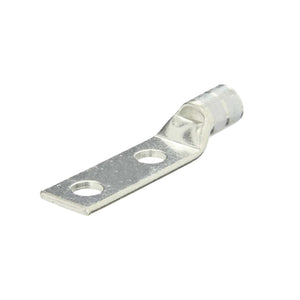

Copper Long Barrel Two Hole Compression Lugs 300 MCM 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98105
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech high-quality 2-hole copper compression lug designed for reliable electrical connections. With a conductor size of 300 MCM, 1/2in bolt size, and 1-3/4in hole spacing, this long barrel lug ensures secure and efficient conductivity. Its durable tin-plated finish and distinctive white color code make it easy to identify and contribute to a corrosion-resistant performance.
Key Features
- Conductor Size: Designed for 300 MCM conductors, providing a secure and reliable electrical connection for this large wire gauge.
- Bolt Size: Features a 1/2-inch bolt size, ensuring a stable and secure attachment to electrical systems.
- Hole Spacing: 1-3/4-inch hole spacing for enhanced flexibility in connecting multiple conductors or adapting to various mounting configurations.
- Long Barrel Design: The long barrel design enhances conductivity and mechanical retention, ensuring a strong and stable connection.
- Material: Made from tin-plated copper, offering excellent conductivity, corrosion resistance, and durability for long-lasting performance.
- Color Code: White color code for easy identification, making it simpler to recognize during installations and reducing the chance of errors.
- Applications: Ideal for high-performance electrical applications, including industrial, commercial, and power distribution systems, where secure and efficient conductivity is critical.
Technical Specifications
| Conductor Size | 300 MCM |
|---|---|
| Stud Size | 1/2 Inch |
| Material | Seamless Electro-Tin Plated Copper |
| Color | White |
| Overall Length | 5.587 Inches |
| Barrel Length | 2 Inches |
| Voltage Rating | 35 kV |
| Pad Size | 3 Inches (L) x 1.189 Inches (W) x 0.152 Inches (Thk) |
| Pad Holes | 2 |
| Pad Hole Spacing | 1-3/4 Inches |
| Barrel Type | Long Barrel |
| ID/OD Size | 0.66 Inches ID x 0.812 Inches OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90 Degrees Celsius |
