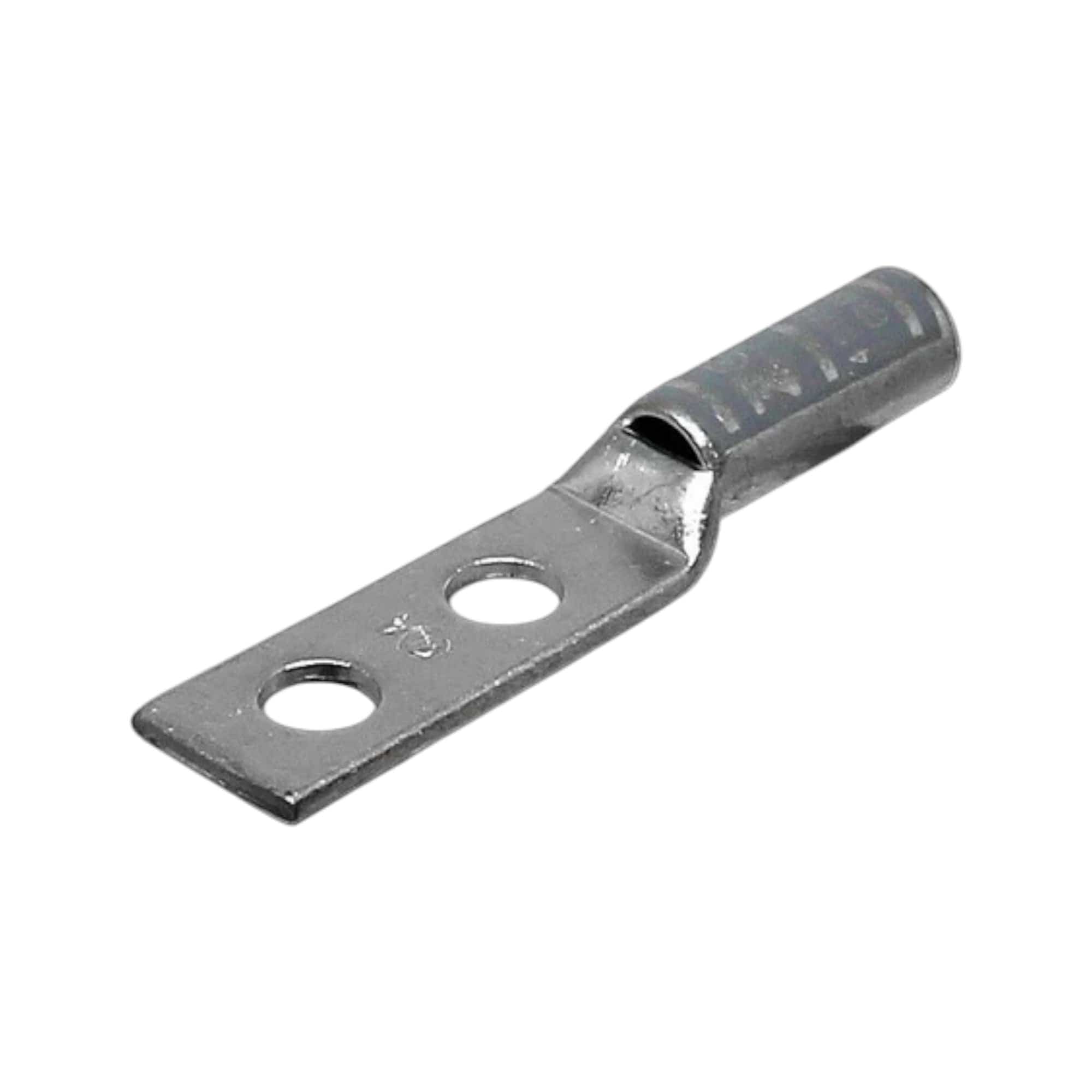

Copper Long Barrel Two Hole Compression Lugs 4 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09957
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Long Barrel Two Hole Compression Lug is expertly engineered for durability and reliable electrical connections with conductor size 4. This high-quality, tin-plated lug features a 3/8-inch bolt size, two holes, and 1-inch hole spacing, ensuring secure and efficient performance. Its long barrel design enhances stability, providing a solid and dependable connection. Whether used in industrial, commercial, or other high-performance applications, this compression lug guarantees consistent, reliable performance, making it the ideal choice for a wide range of electrical installations.
Key Features
-
Material: Seamless Electro-Tin Plated Copper for optimal conductivity and corrosion resistance.
-
Color: Gray for easy identification in electrical installations.
-
Overall Length: 2.796 inches providing ample space for secure connections.
-
Barrel Length: 1.125 inches accommodating various conductor sizes for flexibility.
-
Conductor Material: Copper ensuring reliable electrical conductivity.
-
Voltage Rating: 35 kV suitable for high-voltage applications.
-
Conductor Size: 4 AWG specifically designed for conductor size 4.
-
Stud Size: 3/8 inch compatible with standard stud sizes for ease of installation.
-
Die Index: I-29 indicating compatibility with specific crimping tools.
-
Pad Size: 1.437 inch L x 0.486 inch W x 0.093 inch Thk providing a stable base for connections.
-
Pad Holes: 2 allowing for secure attachment to electrical components.
-
Pad Hole Spacing: 1 inch offering flexibility in wiring configurations.
-
Long Barrel Type: Enhances stability and conductivity in connections.
-
Size: 0.25 inch ID x 0.343 inch OD accommodating specific wire dimensions.
-
Barrel Type Chamfered Entry: Facilitates smooth wire insertion.
- Temperature Rating: 90°C suitable for applications with moderate temperature conditions.
Technical Specifications
| Wire Size | 4 AWG |
|---|---|
| Stud Size | 3/8" Stud |
| Color | Gray |
| Overall Length (L) | 66.8mm (2.63") |
| Neck Length (L1) | 40.1mm (1.58") |
| Neck Length (L2) | 19.05mm (0.75") |
| Outer Diameter (D) | 15.2mm (0.60") |
| Inner Diameter (D1) | 9.1mm (0.36") |
| Hole Diameter (D2) | 7.1mm (0.28") |
| Width (B) | 22.9mm (0.90") |
| Hole Spacing (E) | 10.4mm (0.41") |
| Thickness (F) | 1.7mm (0.07") |
| Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35KV |
| Max Amp Rating | 85A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
