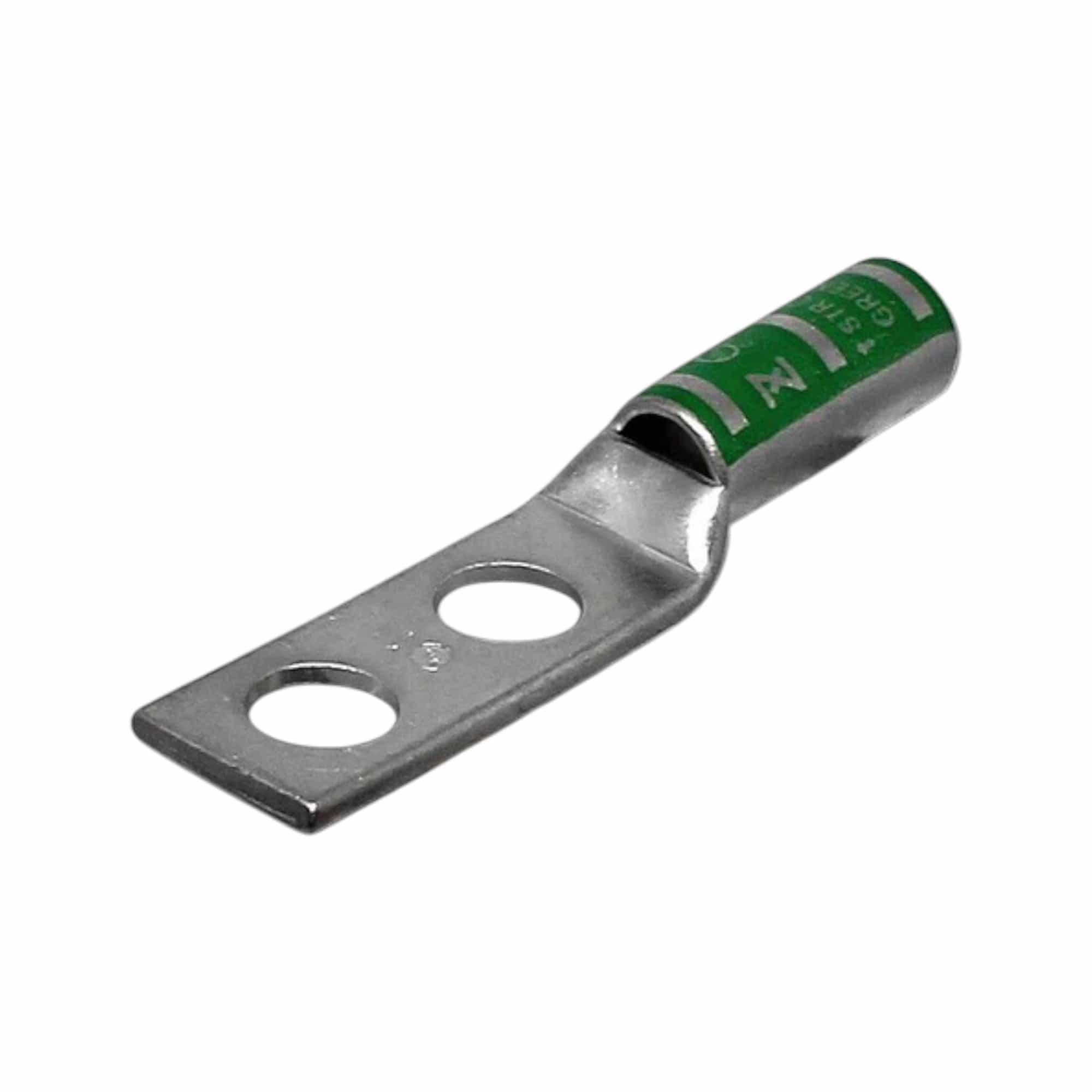

Copper Long Barrel Two Hole Compression Lugs 1 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98093
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech copper compression lug designed for efficient and secure electrical connections. With a conductor size of 1, 1/2-inch bolt size, and a long barrel, this tin-plated lug ensures reliable crimping and easy identification with its green color code.
Key Features
- Designed for 1/0 conductors - Specifically made to fit 1/0 gauge cables, ensuring a secure and reliable connection.
- 1/2-inch bolt size - Standard bolt size for a stable and secure attachment.
- Long barrel construction - Provides a strong, durable connection with efficient crimping.
- Tin-plated finish - Ensures corrosion resistance and enhances conductivity for long-lasting performance.
- Green color code - Easily identifiable for quick and accurate conductor size identification during installation.
-
Durable and reliable - Designed for secure and efficient electrical connections in demanding environments.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Green |
| Overall Length | 4.705 Inches |
| Barrel Length | 1.375 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 1 AWG |
| Stud Size | 1/2 Inch |
| Die Index | I-37 |
| Pad Size | 3 Inches (L) x 0.75 Inch (W) x 0.109 Inch (Thk) |
| Pad Hole(s) | 2 |
| Pad Hole Spacing | 1-3/4 Inches |
| Barrel Type | Long |
| ID X OD | 0.359 Inch x 0.468 Inch |
| Cable Entry Type | Chamfered Entry |
| Temperature Rating | 90°C |
