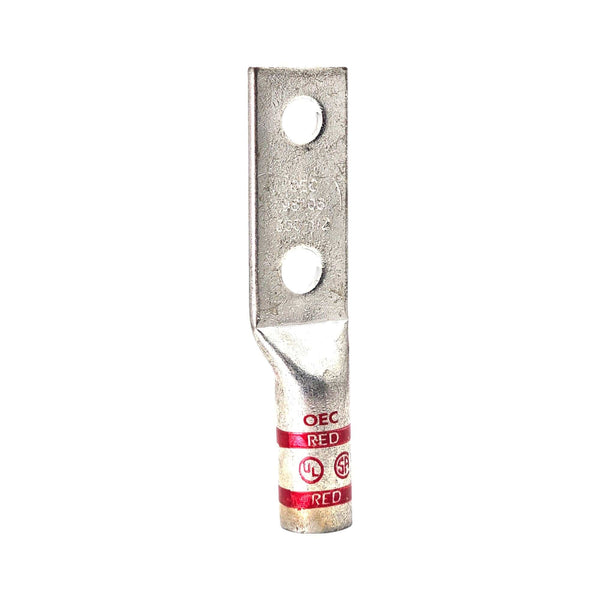

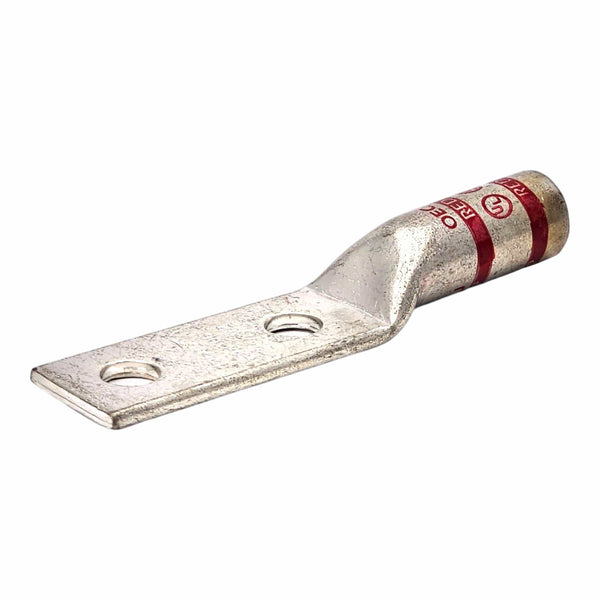

Copper Long Barrel Two Hole Compression Lugs 350 MCM 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98106
Only 2 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Compression Lug is crafted for optimal performance with 350 MCM copper conductors. Featuring a 1/2-inch bolt size and 1-3/4-inch hole spacing, this lug ensures a secure and efficient connection. The long barrel enhances conductivity, while the tin-plated finish provides corrosion resistance for long-lasting durability. Its red color code enables quick identification, ensuring compatibility with various electrical systems. This lug is a dependable choice for demanding electrical applications, providing reliable and high-performance connections.
Key Features
- Specifically designed for 350 MCM copper conductors, providing a secure and perfect fit for heavy-duty applications.
- Made from electro tin-plated high-strength copper, ensuring superior conductivity and resistance to environmental stressors.
- Equipped with a sight hole for accurate installations, ensuring all connections are correctly aligned.
- The red color coding aids in quick visual identification, facilitating faster and more reliable installations.
| Material | Electro Tin Plated High Strength Seamless Copper |
|---|---|
| Color | Red |
| Overall Length | 5.623 inches |
| Barrel Length | 2 inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 350 MCM |
| Stud Size | 1/2 inch |
| Die Index | I-71 |
| Pad Size | 3 inches L x 1.291 inches W x 0.187 inches Thk |
| Pad Holes | 2 |
| Pad Hole Spacing | 1-3/4 inches |
| Barrel Type | Long Barrel, Chamfered Entry |
| ID x OD | 0.703 inches x 0.89 inches |
| Temperature Rating | 90°C |
