Copper Short Barrel Two Hole Compression Lugs 4/0 AWG 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09945
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

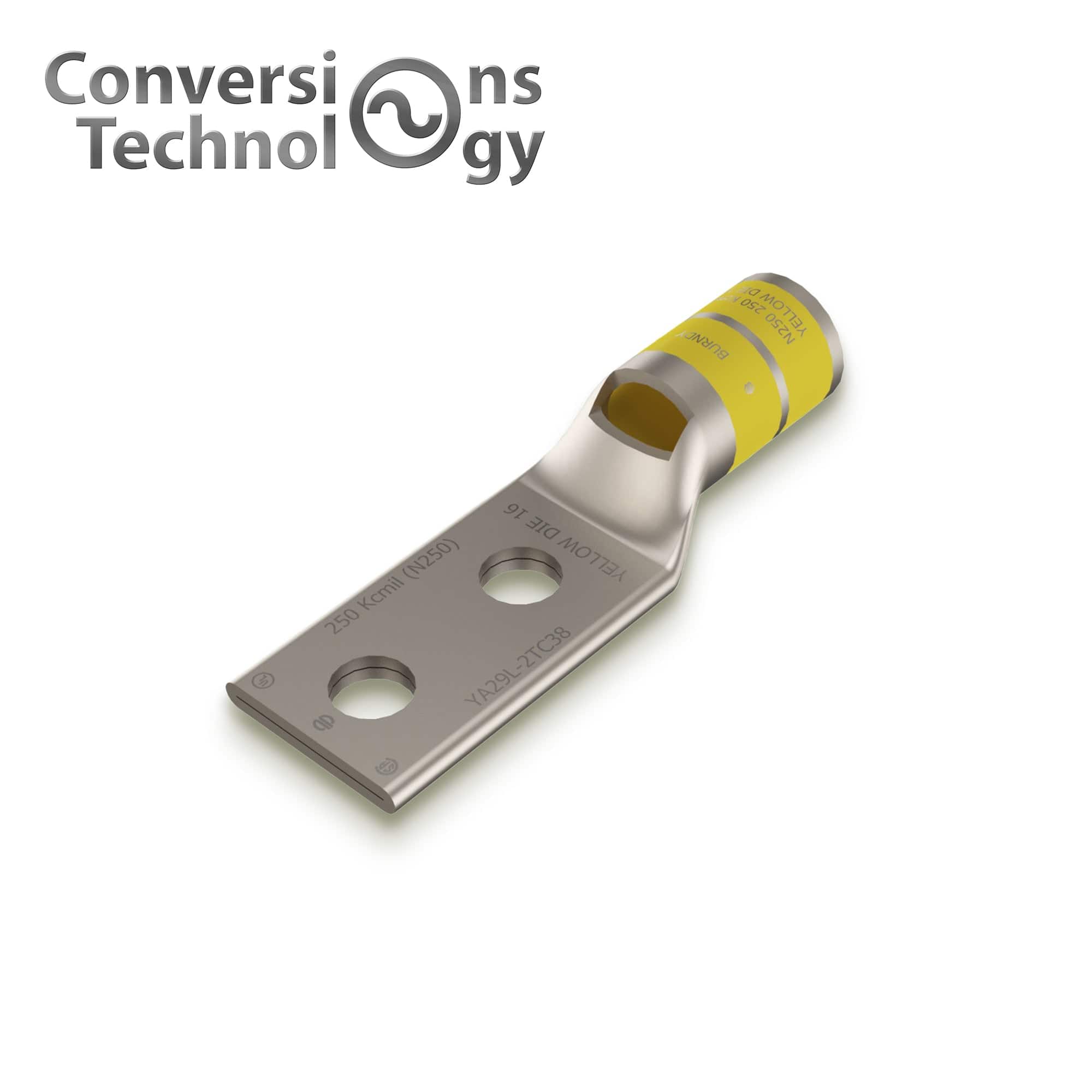

The Conversions Tech 2-Hole Copper Compression Lug is a reliable and durable connector designed for secure electrical connections. Built for 4/0 AWG conductors, it features a 3/8-inch bolt size and a 2-hole configuration, providing a strong and stable connection. The standard barrel design allows for efficient crimping, while the sight window enables easy visual inspection during installation to ensure a proper crimp. The tin-plated finish enhances corrosion resistance, and the distinctive yellow color code ensures quick identification, making this lug an excellent choice for long-lasting performance and reliable electrical connections in various applications.
Key Features
- 4/0 AWG Conductor Size: Designed for securely terminating 4/0 AWG conductors, making it ideal for high-power electrical systems.
- 3/8-Inch Bolt Size: Ensures a strong and stable connection with a 3/8-inch bolt size, offering a secure attachment point for terminals or equipment.
- 2-Hole Configuration: Dual attachment points provide a reliable and robust connection, enhancing stability for demanding electrical applications.
- Standard Barrel Design: Facilitates efficient crimping with compression tools, ensuring a secure, durable electrical connection.
- Sight Window: Allows for easy visual inspection during installation, ensuring the crimp is properly made for optimal performance.
- Tin-Plated Finish: Offers enhanced corrosion resistance, providing protection against environmental factors and extending the connector's lifespan.
- Yellow Color Code: Ensures quick and easy identification, simplifying the installation process and reducing the risk of mistakes.
-
Durable and Reliable: Built for long-lasting performance, making it a dependable choice for various electrical applications, especially in high-power systems.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Yellow |
| Overall Length | 3.303 Inches |
| Barrel Length | 0.875 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 4/0 AWG |
| Stud Size | 3/8 Inch |
| Die Index | I-54 |
| Pad Size | 1.937 Inch L x 0.999 Inch W x 0.141 Inch Thk |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Standard |
| Inner Diameter | 0.546 Inch |
| Outer Diameter | 0.687 Inch |
| Cable Entry | Chamfered Type |
| Temperature Rating | 90 Deg C |
