Copper Short Barrel Two Hole Compression Lugs 4 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09921
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

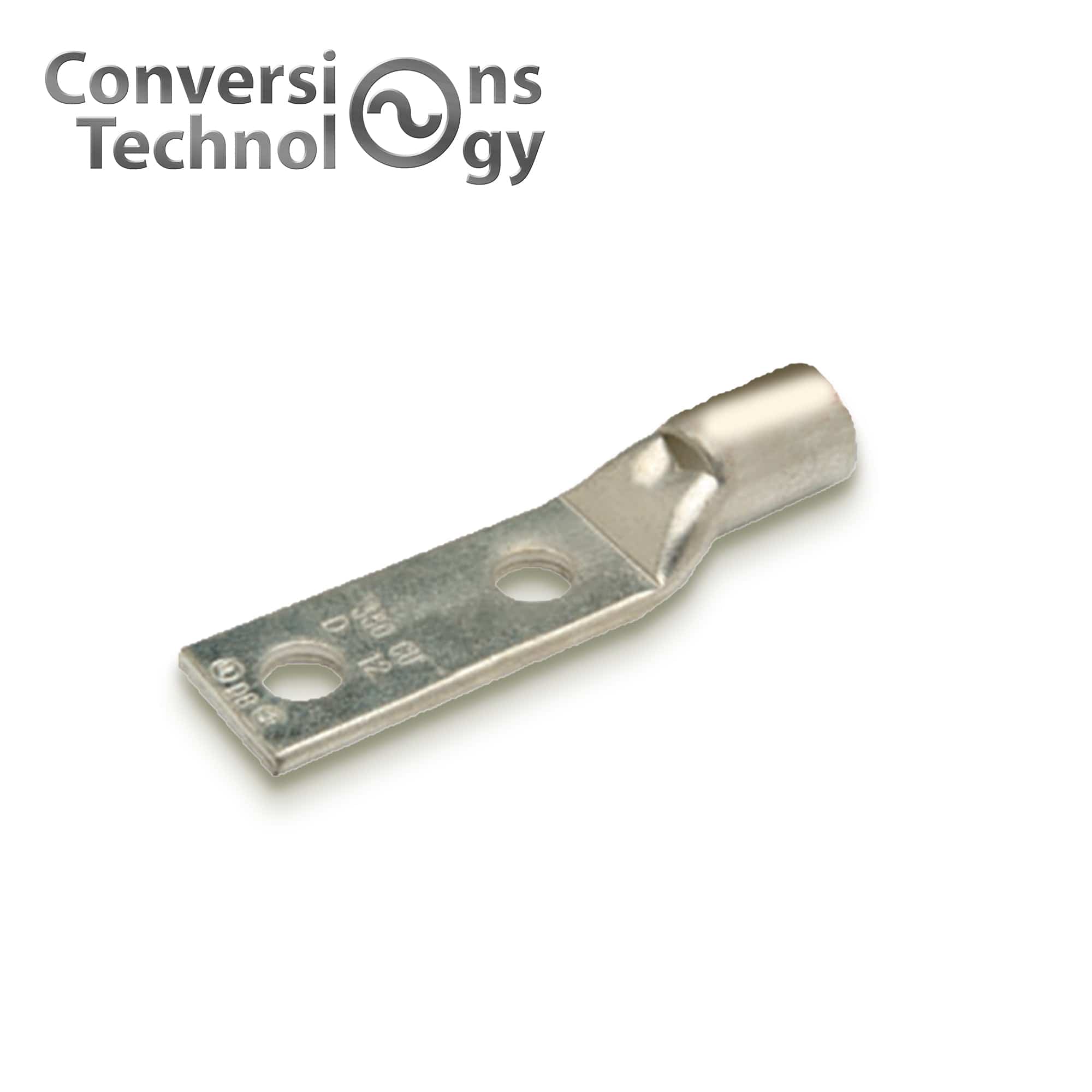

The Conversions Tech Copper Connector is a durable and reliable lug designed for electrical applications. Engineered for 4 AWG conductors, it features a 2-hole configuration, 1/2-inch bolt size, and 1-inch hole spacing, ensuring a stable and secure electrical connection. The standard barrel design allows for easy crimping, while the sight window provides visual inspection during installation, ensuring a proper crimp every time. The tin-plated finish enhances corrosion resistance, and the distinctive gray color code allows for quick and easy identification, making this lug a dependable choice for long-lasting electrical connections in various applications
Key Features
- 4 AWG Conductor Size: Designed for secure termination of 4 AWG conductors, ideal for medium power electrical systems.
- 2-Hole Configuration: Provides dual attachment points, ensuring a stable and reliable connection in various electrical applications.
- 1/2-Inch Bolt Size: Offers a strong, stable connection with a 1/2-inch bolt size for secure attachment to terminals or equipment.
- 1-Inch Hole Spacing: Standardized spacing ensures consistent, organized installations and optimal connection alignment.
- Standard Barrel Design: Facilitates easy crimping with compression tools, ensuring a secure and efficient electrical connection.
- Sight Window: Allows for visual inspection during installation, ensuring the crimp is properly made for maximum reliability.
- Tin-Plated Finish: Enhances corrosion resistance, ensuring the lug's longevity and protecting it from environmental factors.
- Gray Color Code: Provides easy identification, simplifying the installation process and reducing the risk of errors.
-
Durable and Reliable: Engineered for long-lasting performance, making it a dependable choice for a wide range of industrial, commercial, and electrical applications.
Technical Specifications
| Material | Seamless Electro Tin Plated Copper |
|---|---|
| Color | Gray |
| Overall Length | 2.421 Inches |
| Barrel Length | 0.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 4 AWG |
| Stud Size | 1/2 Inch |
| Die Index | I-29 |
| Pad Size | 1.687 Inches L x 0.486 Inches W x 0.093 Inches Thk |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Standard |
| Inner Diameter | 0.25 Inch |
| Outer Diameter | 0.343 Inch |
| Cable Entry | Chamfered Type |
