Copper Short Barrel Two Hole Compression Lugs 6 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09912
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

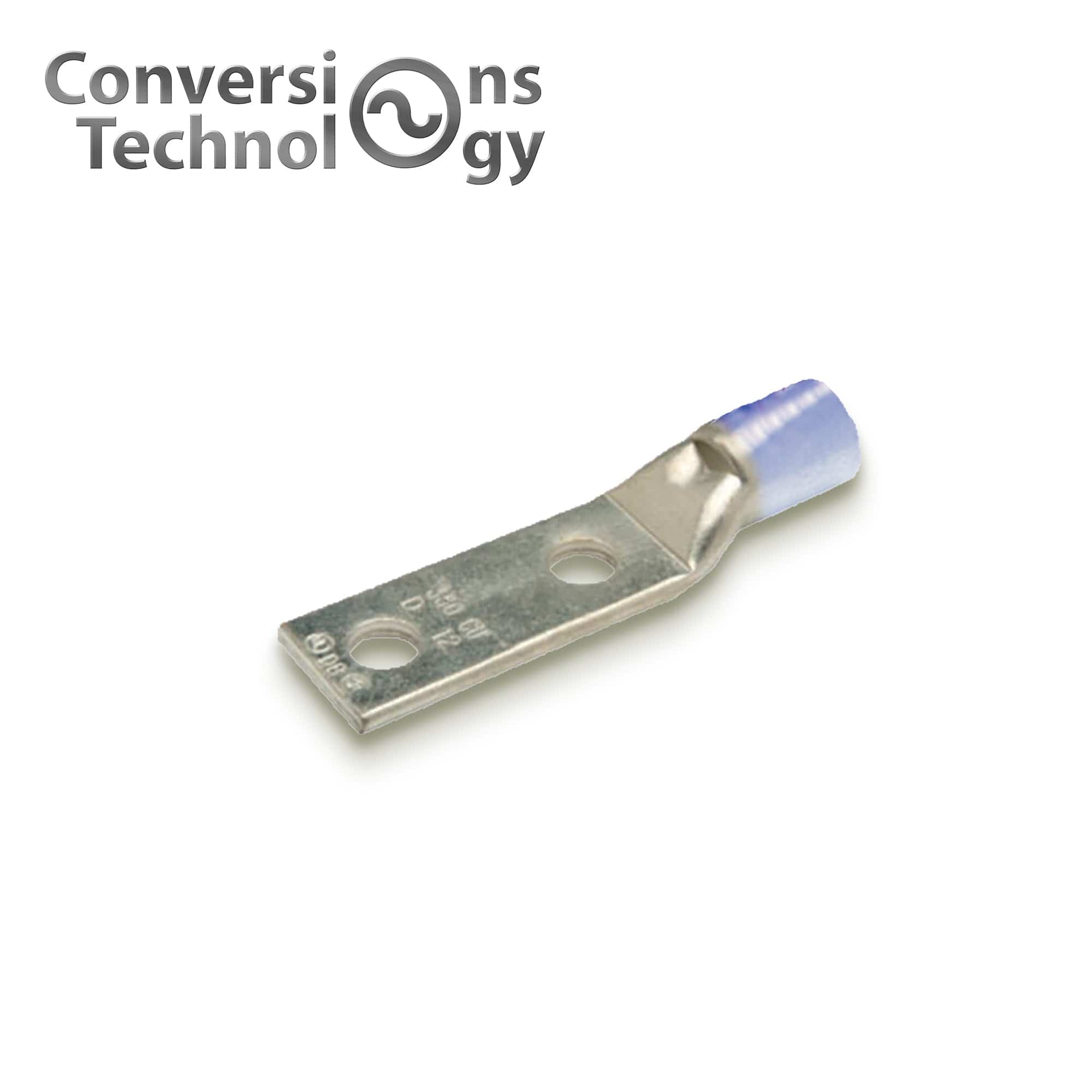

The Conversions Tech Copper Compression Lug is a high-quality and reliable connector designed for electrical applications. Built for 6 AWG conductors, it features a 2-hole configuration and 1/4-inch bolt size, ensuring a secure and stable electrical connection. The standard barrel design allows for easy crimping, while the sight window facilitates easy visual inspection during installation, ensuring a proper crimp every time. The tin-plated finish provides enhanced corrosion resistance, and the distinctive blue color code ensures quick identification, making this lug an ideal choice for efficient and long-lasting electrical connections in a variety of applications.
Key Features
- 6 AWG Conductor Size: Designed for securely terminating 6 AWG conductors, ideal for medium-power electrical systems and installations.
- 2-Hole Configuration: Dual attachment points ensure a stable, secure electrical connection, perfect for various applications.
- 1/4-Inch Bolt Size: Offers a strong and secure connection with a 1/4-inch bolt size, making it compatible with standard terminals or equipment.
- Standard Barrel Design: Allows for easy crimping, ensuring a secure and reliable electrical connection when using compression tools.
- Sight Window: Provides visual inspection during installation, helping to verify proper crimping and ensuring optimal connection integrity.
- Tin-Plated Finish: Enhances corrosion resistance, ensuring the connector's durability and long-term performance even in harsh environments.
- Blue Color Code: Facilitates quick and easy identification, simplifying the installation process and reducing the risk of mistakes.
-
Durable and Reliable: Engineered for long-lasting performance, making it a dependable choice for a wide range of electrical applications.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Blue |
| Overall Length | 2.382 Inches |
| Barrel Length | 0.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 6 AWG |
| Stud Size | 1/4 Inch |
| Die Index | I-24 |
| Pad Size | 1.687 Inches L x 0.44 Inches W x 0.087 Inches Thk |
| Pad Holes | 2 |
| Pad Hole Spacing | 1 Inch |
| Barrel Type | Standard |
| Inner Diameter | 0.203 Inch |
| Outer Diameter | 0.295 Inch |
| Cable Entry | Chamfered Type |
| Temperature Rating | 90 Deg C |
