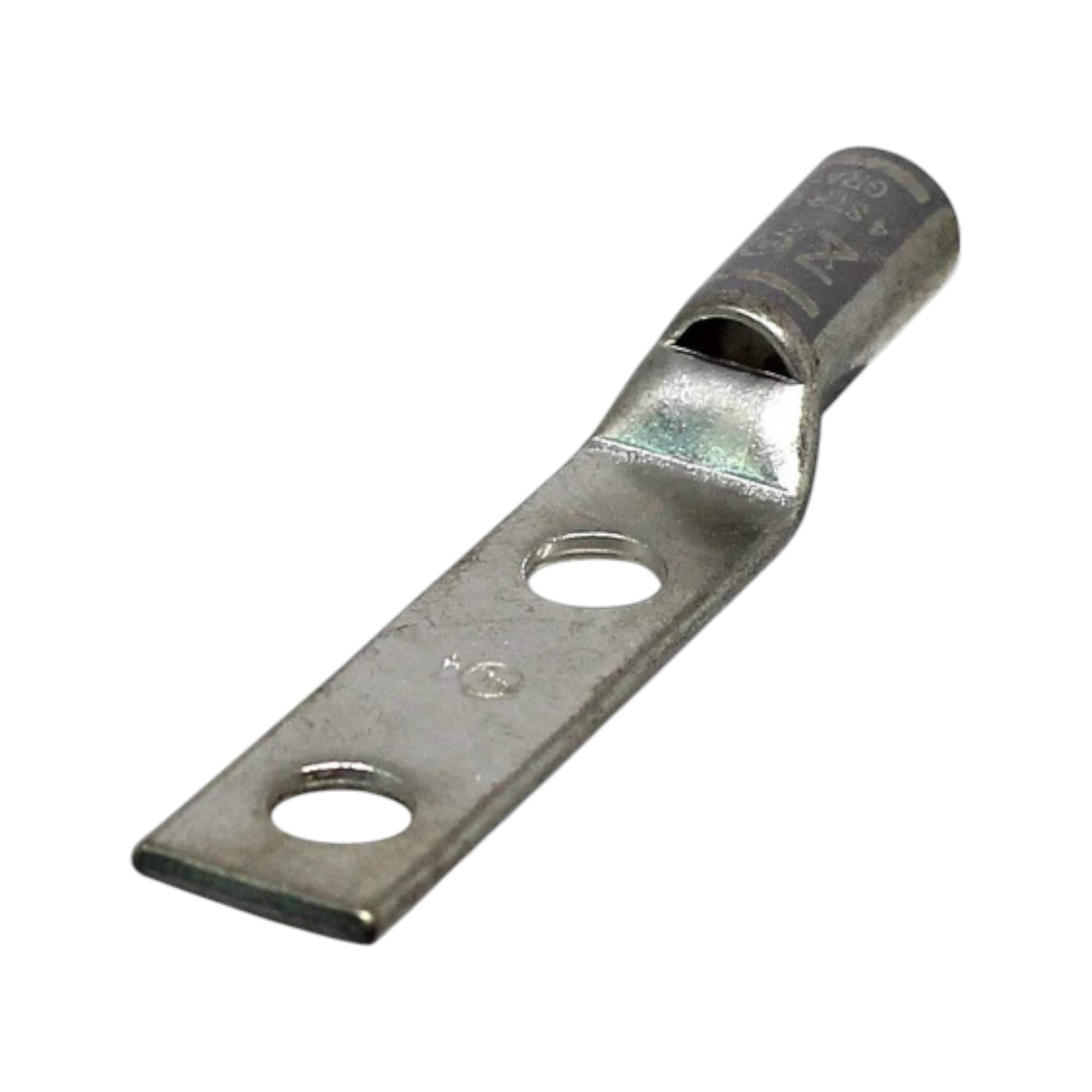

Copper Short Barrel Two Hole Compression Lugs 4 AWG 1/4-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09918
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech robust copper compression lug designed for a wide range of electrical applications. It supports a 4 AWG conductor size and features two holes, a 1/4-inch bolt size, and 5/8-inch hole spacing, ensuring secure and efficient electrical connections. The lug is equipped with a standard barrel and an integrated sight window for easy visual inspection. Its tin-plated finish provides excellent corrosion resistance, while the distinctive gray color code enables quick identification and ensures compatibility with standard color-coding systems. This lug guarantees reliable and long-lasting performance in various electrical settings.
Key Features
- Copper Construction – Provides excellent electrical conductivity and ensures reliable, long-lasting connections.
- 4 AWG Conductor Size – Designed for 4 AWG wire, suitable for medium to larger conductors.
- 1/4-inch Bolt Size – Standard bolt size that ensures a secure and stable connection.
- 5/8-inch Hole Spacing – Provides optimal hole spacing for secure attachment points and efficient electrical connections.
- Standard Barrel – Features a standard barrel for easy wire insertion and consistent compression.
- Sight Window – Allows for visual inspection of the crimped connection to ensure proper installation and quality control.
-
Tin Plating & Gray Color Code – Tin plating increases corrosion resistance, and the gray color code ensures quick identification and compatibility with standard color-coding systems.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Gray |
| Overall Length | 2.171 Inches |
| Barrel Length | 0.5 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 4 AWG |
| Stud Size | 1/4 Inch |
| Die Index | I-29 |
| Pad Size | 1.437 Inches Length x 0.486 Inches Width x 0.093 Inches Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 5/8 Inch |
| Barrel Type | Standard |
| ID/OD Size | 0.25 Inch ID x 0.343 Inch OD |
| Barrel Entry | Chamfered Entry |
| Temperature Rating | 90°C |
