Copper Short Barrel Two Hole Compression Lugs 1/0 AWG 5/16-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09935
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

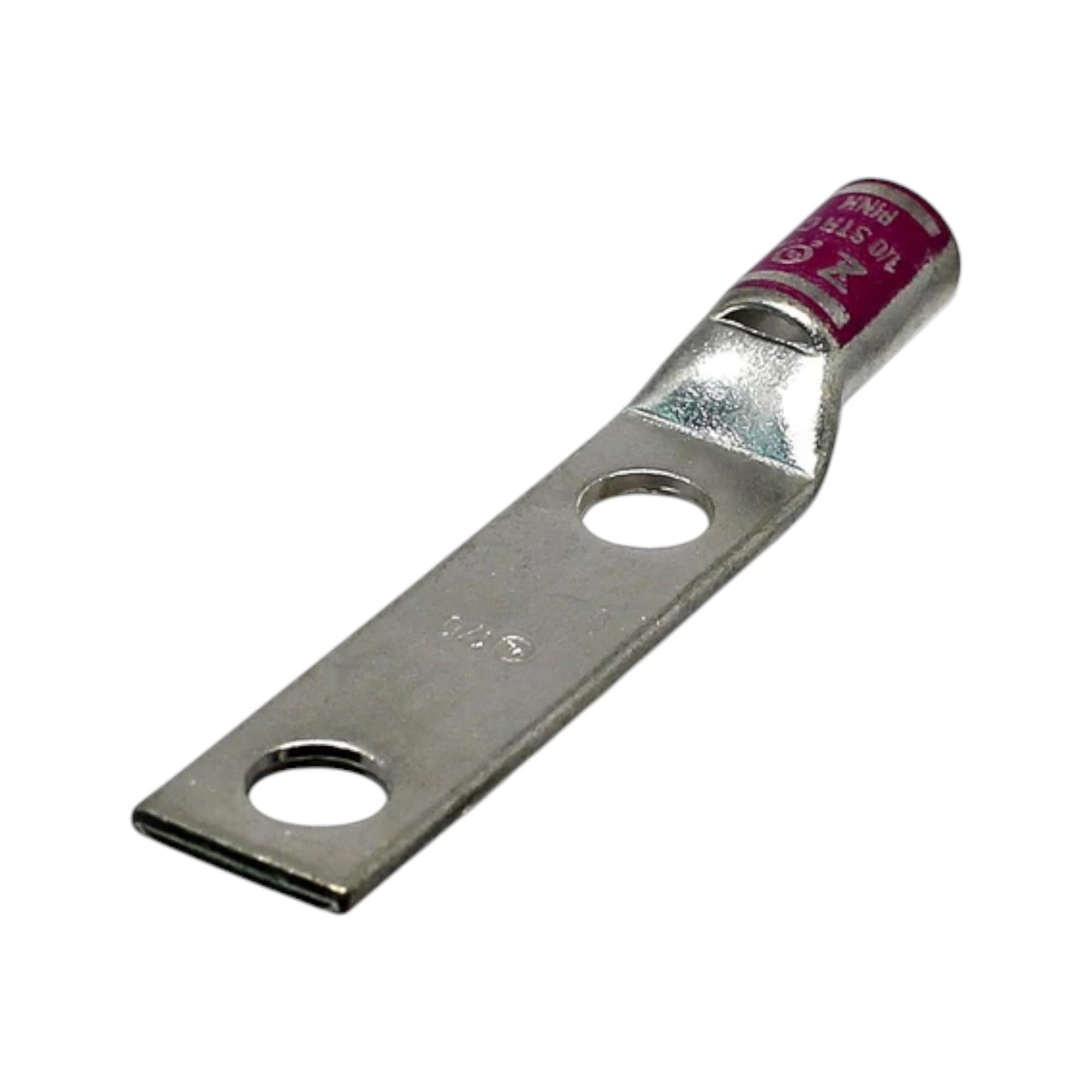

The Conversions Tech robust copper compression lug designed for the reliable termination of 1/0 AWG conductors. It features a 5/16-inch bolt size and 2 holes, ensuring a secure and stable connection. The lug includes a standard barrel and a built-in sight window for easy visual inspection. Its tin-plated finish offers superior corrosion resistance, while the distinctive pink color code allows for easy identification and compatibility with standard color-coding systems. This lug guarantees secure and efficient electrical connections across various applications.
Key Features
- Copper Construction – Provides excellent electrical conductivity and ensures a strong, reliable connection.
- 1/0 AWG Conductor Size – Designed for 1/0 AWG wire, making it perfect for medium-sized conductors.
- 5/16-inch Bolt Size – Standard bolt size for secure, easy attachment to electrical systems.
- 2-Hole Design – Offers dual connection points for a stable and effective electrical termination.
- Standard Barrel – Features a standard barrel for straightforward wire insertion and reliable compression.
- Sight Window – Allows for visual inspection of the crimped connection to ensure proper installation.
-
Tin Plating & Pink Color Code – Tin plating increases corrosion resistance, while the pink color code ensures easy identification and compatibility with color-coding systems.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Pink |
| Overall Length | 2.793 Inches |
| Barrel Length | 0.75 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 1/0 AWG |
| Stud Size | 5/16 Inch |
| Die Index | I-42 |
| Pad Size | 1.687 Inches Length x 0.738 Inches Width x 0.125 Inches Thickness |
| Pad Holes | 2 |
| Pad Hole Spacing | 7/8 Inch |
| Barrel Type | Standard |
| Inner Diameter | 0.39 Inch |
| Outer Diameter | 0.515 Inch |
| Cable Entry | Chamfered Type |
