Copper Short Barrel Two Hole Compression Lugs 500 MCM 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98060
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

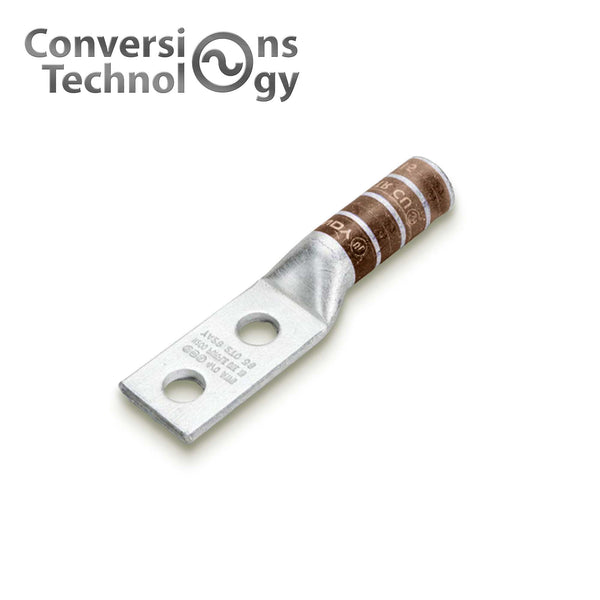

The Conversions Tech 2-Hole Lug is a high-performance copper compression lug designed for robust electrical connections, accommodating conductors up to size 500 AWG. Featuring a standard barrel, 1/2-inch bolt size, and a distinctive brown color code for easy identification, this tin-plated lug ensures durable and reliable performance. The inclusion of a sight window allows for visual confirmation of secure connections, making it an ideal choice for demanding electrical applications.
Key Features
- Designed for conductors up to 500 AWG - Specifically engineered to accommodate 500 AWG conductors, ensuring secure and reliable electrical connections in medium to high-performance applications.
- Standard barrel design - Provides efficient crimping, enhancing connection stability and ensuring long-lasting performance.
- 1/2-inch bolt size - Compatible with 1/2-inch bolts, ensuring stable and secure attachment to electrical components.
- Distinctive brown color code - Simplifies conductor size identification, making installation and organization easier.
- Tin-plated finish - Offers excellent corrosion resistance, ensuring durability and long-term reliability in various environments.
- Sight window - Provides visual confirmation of a secure connection, offering additional assurance during installation.
-
Ideal for high-demand electrical applications - Ensures reliable and stable connections, making it suitable for industrial, commercial, and high-performance electrical systems.

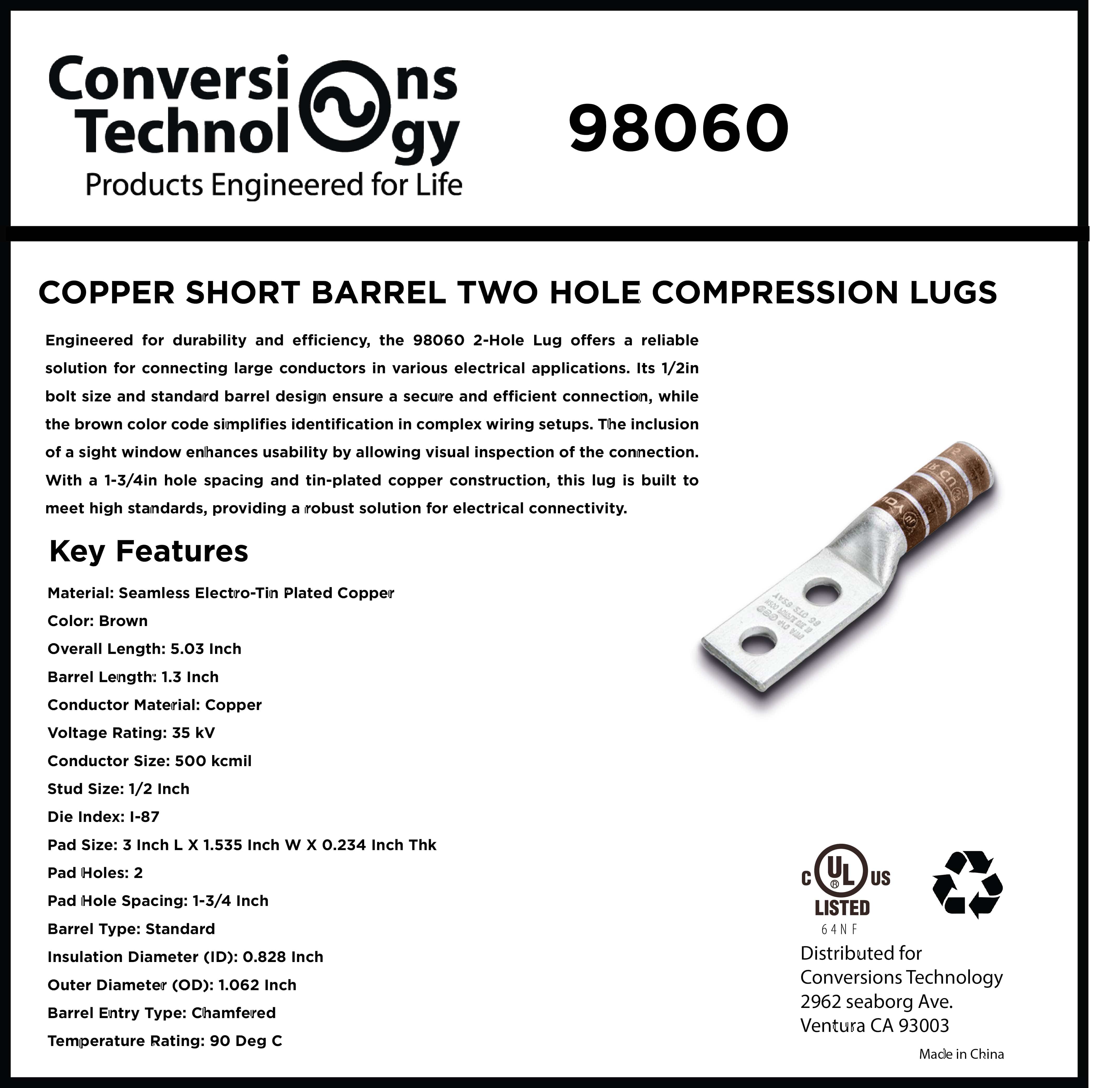

Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Brown |
| Overall Length | 5.03 Inches |
| Barrel Length | 1.3 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 500 MCM |
| Stud Size | 1/2 Inch |
| Die Index | I-87 |

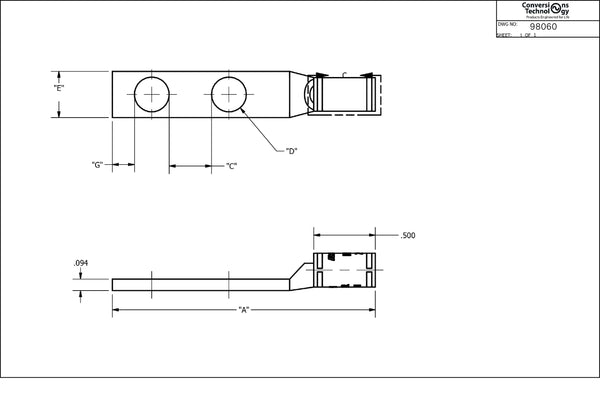

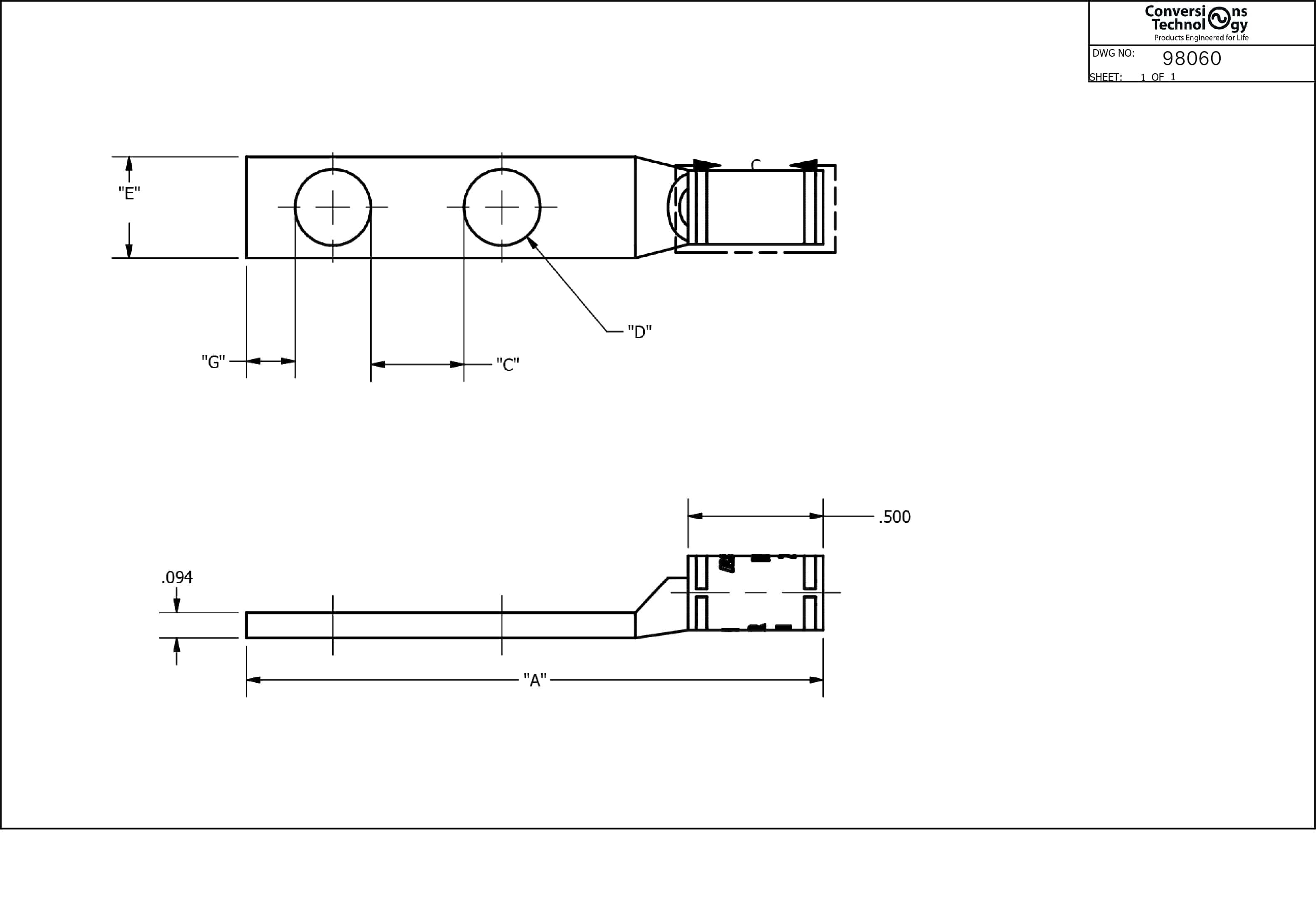

| Pad Size | 3 Inch L x 1.535 Inch W x 0.234 Inch Thk |
| Pad Holes | 2 |
| Pad Hole Spacing | 1-3/4 Inch |
| Barrel Type | Standard |
| Insulation Diameter (ID) | 0.828 Inch |
| Outer Diameter (OD) | 1.062 Inch |
| Barrel Entry Type | Chamfered |
| Temperature Rating | 90°C |
