Copper Short Barrel Two Hole Compression Lugs 600 MCM 3/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98061
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

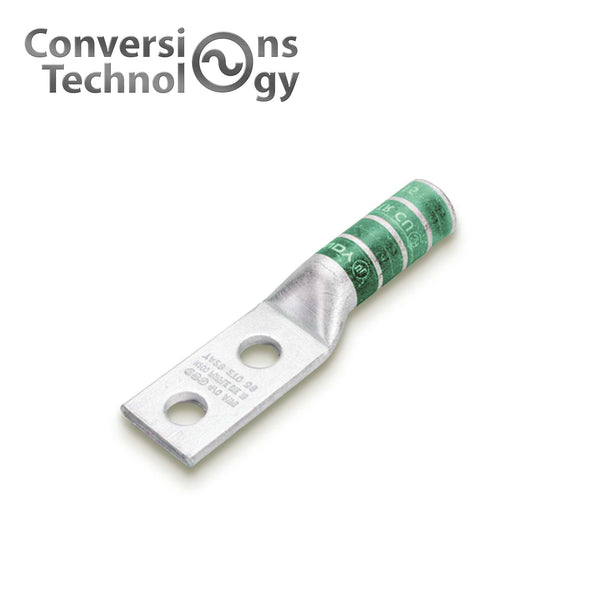

The Conversions Tech 2-Hole Lug is a high-performance copper compression lug designed for robust electrical connections, accommodating conductors up to size 600 AWG. Featuring a standard barrel, 3/8-inch bolt size, and a distinctive green color code for easy identification, this tin-plated lug ensures reliable performance. The inclusion of a sight window allows for visual confirmation of secure connections, making it an ideal solution for high-demand electrical applications.
Key Features
- Designed for conductors up to 600 AWG - Accommodates large conductor sizes, ensuring secure and reliable electrical connections in high-performance applications.
- Standard barrel design - Enhances the reliability and efficiency of the connection, ensuring durable performance.
- 3/8-inch bolt size - Compatible with 3/8-inch bolts, providing stable and secure attachment to electrical components.
- Distinctive green color code - Easily identifiable for quick and accurate conductor size recognition during installation.
- Tin-plated finish - Provides excellent corrosion resistance, ensuring longevity and optimal performance in various environments.
- Sight window - Allows for visual confirmation of a secure connection, providing added confidence during installation.
-
Ideal for high-demand electrical applications - Ensures reliable, secure, and efficient connections, making it suitable for demanding industrial and commercial environments.

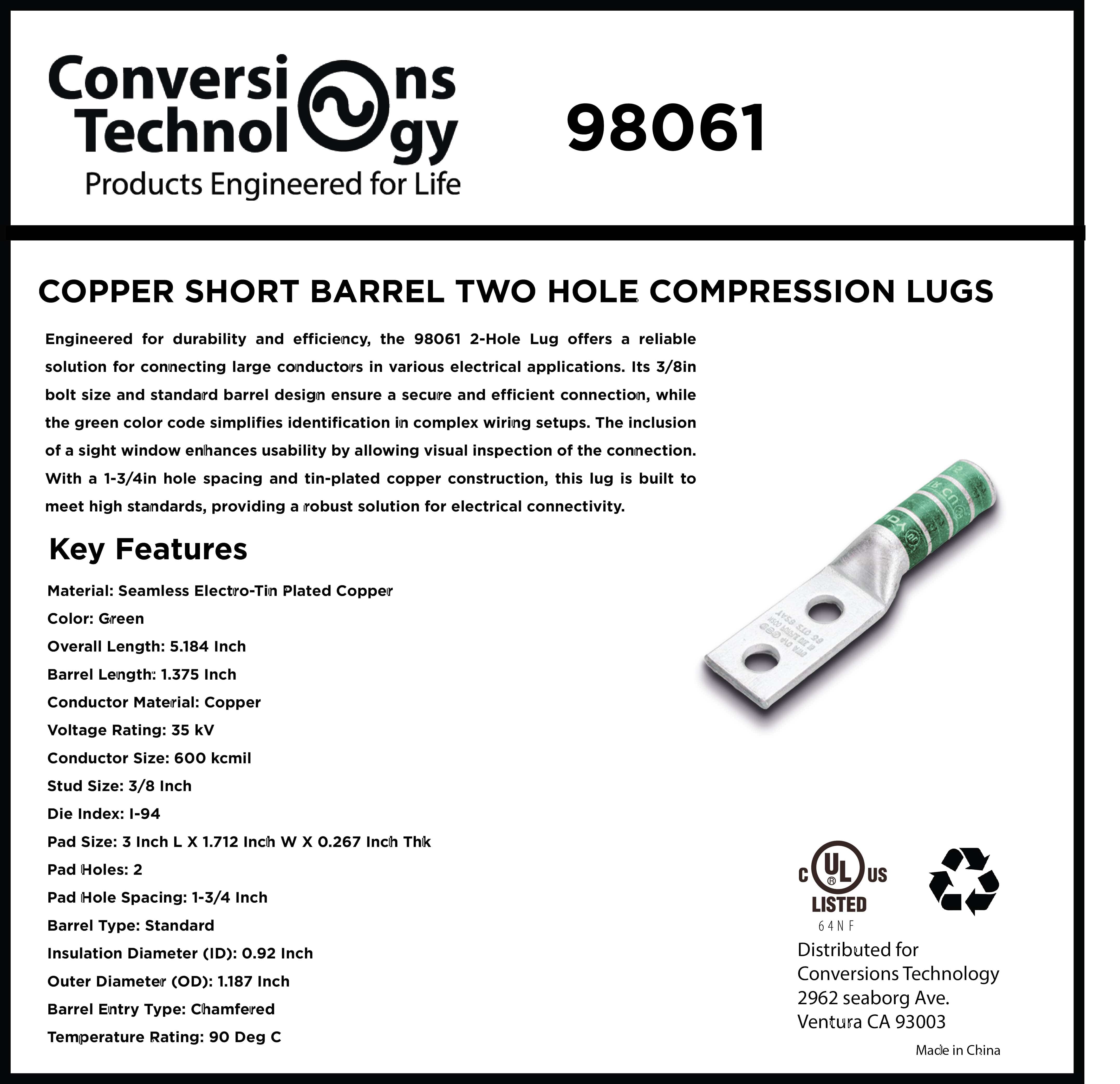

Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Green |
| Overall Length | 5.184 Inches |
| Barrel Length | 1.375 Inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 600 MCM |
| Stud Size | 3/8 Inch |
| Die Index | I-94 |
| Pad Size | 3 Inch L x 1.712 Inch W x 0.267 Inch Thk |
| Pad Holes | 2 |
| Pad Hole Spacing | 1-3/4 Inch |
| Barrel Type | Standard |
| Insulation Diameter (ID) | 0.92 Inch |
| Outer Diameter (OD) | 1.187 Inch |
| Barrel Entry Type | Chamfered |
| Temperature Rating | 90°C |
