Copper Short Barrel One Hole Compression Lugs 4/0 AWG 5/16 Bolt Size
Shipping calculated at checkout
SKU: 210-98029
980 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

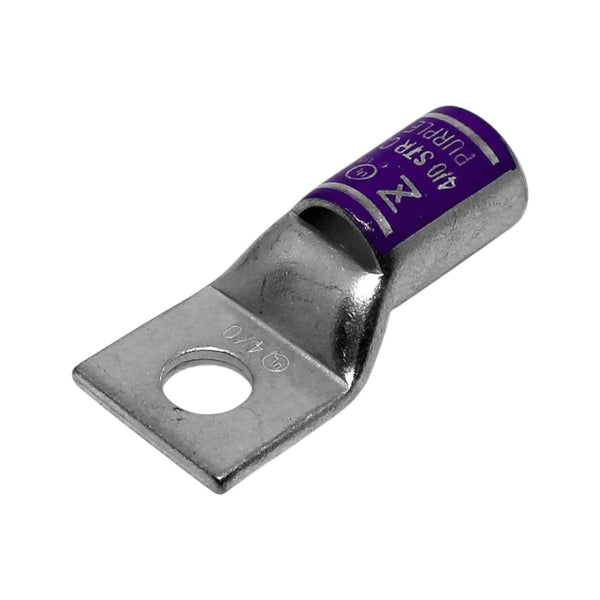

The Conversions Tech Copper Compression Lug is designed for 4/0 AWG conductors, featuring a 1-hole configuration with a 5/16-inch bolt size. Equipped with a standard barrel, sight window, and a purple color code for easy identification, this tin-plated lug ensures a secure and efficient electrical connection in various applications. Its durable construction and corrosion resistance make it a reliable choice for professionals seeking high-performance electrical terminations.
Key Features
- High-Quality Copper Construction: Made from durable copper for superior electrical conductivity, ensuring long-term reliability.
- 4/0 AWG Conductor Size: Designed for 4/0 AWG cables, ideal for high-power electrical systems and heavy-duty applications.
- 1-Hole Configuration: Features a single hole for a secure and stable connection to terminals, ensuring efficient electrical terminations.
- 5/16-Inch Bolt Size: The 5/16-inch bolt hole size is compatible with standard-sized terminals, making installation easy and efficient.
- Standard Barrel Design: The standard barrel design allows for a strong, secure crimp connection that is reliable over time.
- Sight Window: Equipped with a sight window for visual inspection, ensuring accurate wire insertion and proper crimping.
-
Tin-Plated & Purple Color Code: The tin-plated surface offers enhanced corrosion resistance, while the purple color code aids in easy identification, improving efficiency during installations.

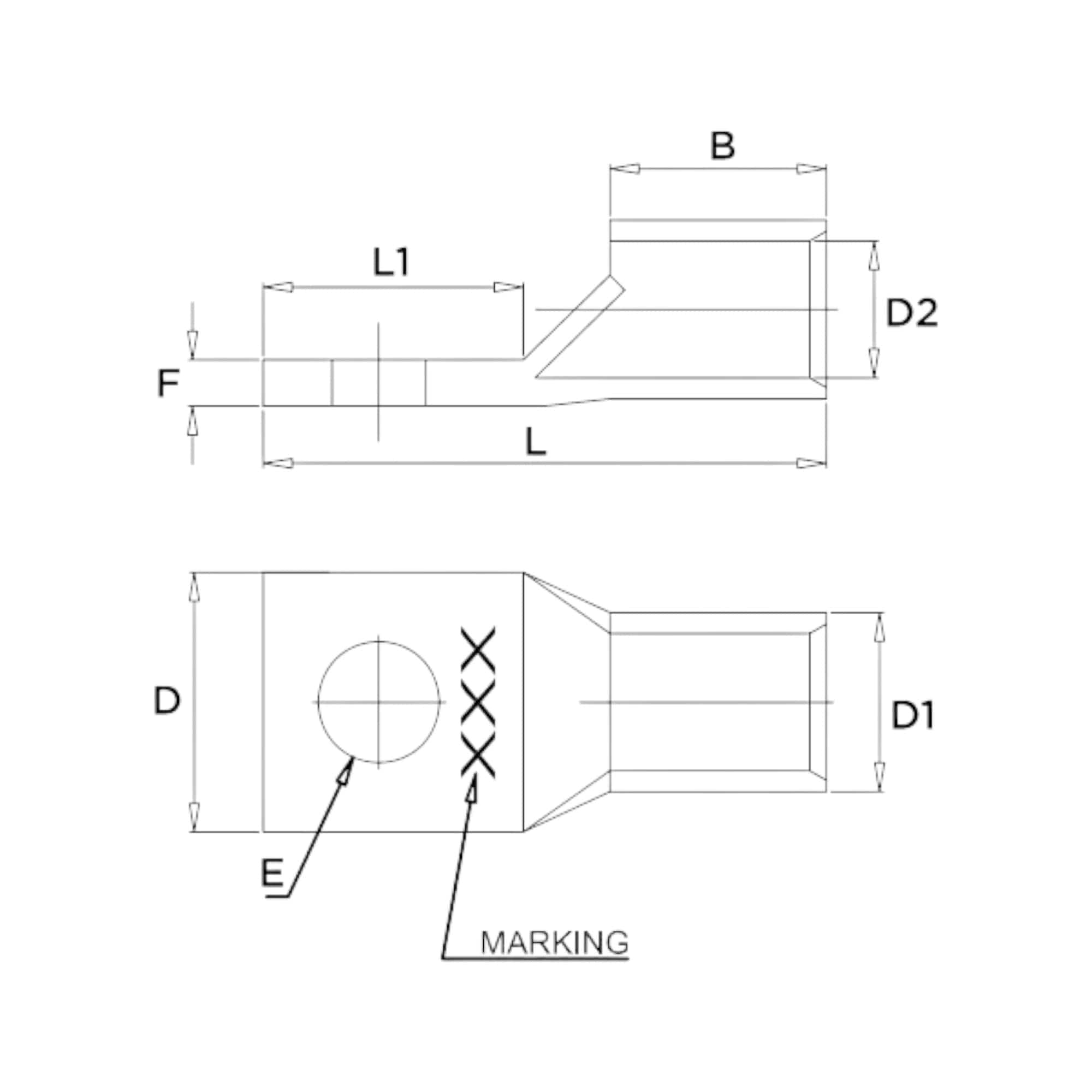

Technical Specifications
| Wire Size | 4/0 AWG |
|---|---|
| Stud Size | 5/16" Stud |
| Color | Purple |
| Overall Length (L) | 53.4mm (2.10") |
| Length 1 (L1) | 19.1mm (0.80") |
| Diameter (D) | 25.4mm (1.00") |
| Diameter 1 (D1) | 17.4mm (0.70") |
| Diameter 2 (D2) | 14.2mm (0.60") |
| Width (B) | 25.4mm (1.00") |
| Width 1 (E) | 8.8mm (0.30") |
| Thickness (F) | 3.1mm (0.12") |
| Material | Tin Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 360A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
