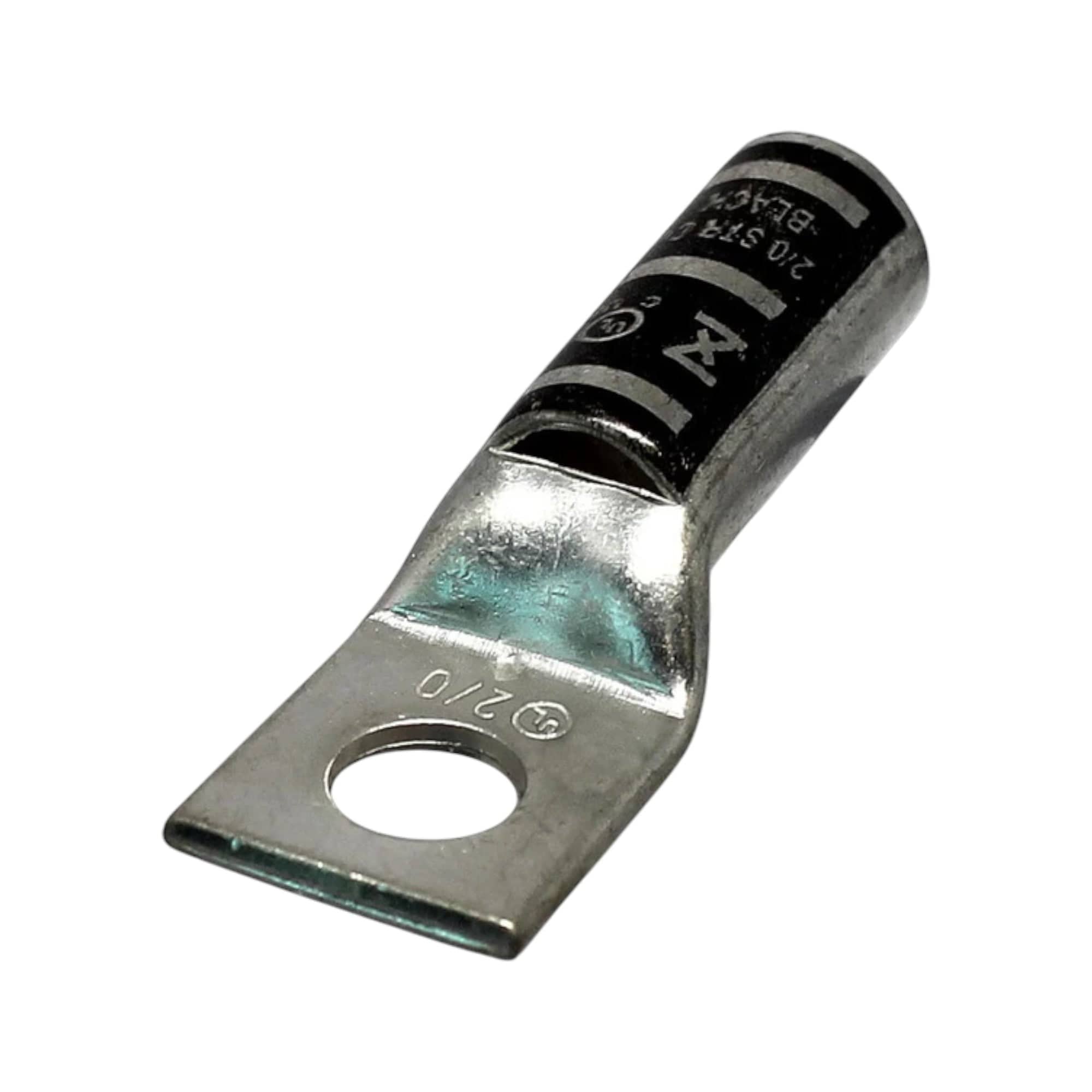

Copper Long Barrel One Hole Compression Lug 2/0 AWG 5/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09859
985 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Compression Lug is a durable connector designed for secure electrical connections. Built for 2/0 AWG conductors, it features a 5/8-inch bolt size and a long barrel, ensuring stable and reliable connectivity. The tin-plated finish provides excellent corrosion resistance for long-lasting performance. The distinctive black color code allows for easy identification, streamlining the installation process. While it does not have a sight window, its robust design ensures reliable performance, making it an ideal choice for efficient and secure electrical connections in various applications.
Key Features
-
Seamless Electro-Tin Plated Copper Material: Ensures high conductivity and corrosion resistance.
-
Black Color: Facilitates easy identification during installations.
-
5.275 Inch Overall Length: Provides ample space for secure conductor termination.
-
3 Inch Barrel Length: Long barrel design for optimal performance and stability.
-
35 kV Voltage Rating: Suitable for a wide range of voltage applications.
-
2/0 AWG Conductor Size: Accommodates various conductor sizes for versatility.
-
3/8 Inch Stud Size: Compatible with standard 5/8-inch stud sizes for easy installation.
-
I-125 Die Index: Precision die index for consistent and reliable crimping.
-
1.25 Inch L X 2.169 Inch W X 0.328 Inch Thk Pad Size: Adequate pad size for secure connections.
-
1 Pad Hole(S): Designed for a single conductor termination for simplicity.
-
Long Barrel Type: Ideal for applications requiring an extended barrel for enhanced connectivity.
-
Size 0.437 Inch ID X 0.562 Inch OD: Precise insulation dimensions for effective electrical insulation.
-
Barrel Type Chamfered Entry: Facilitates easy and smooth conductor insertion.
- Temperature Rating 90 Deg C: Suitable for applications with moderate temperature requirements.
Technical Specifications
| Material | Seamless Electro Tin-Plated Copper |
|---|---|
| Color | White |
| Overall Length | 5.275 Inch |
| Barrel Length | 3 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 1000 kcmil |
| Stud Size | 5/8-Inch |
| Die Index | I-125 |
| Pad Size | 1.25 Inch L X 2.169 Inch W X 0.328 Inch Thk |
| Pad Hole(s) | 1 |
| Barrel Type | Long |
| Inner Diameter | 1.172 Inch |
| Outer Diameter | 1.5 Inch |
| Cable Entry | Chamfered Type |
