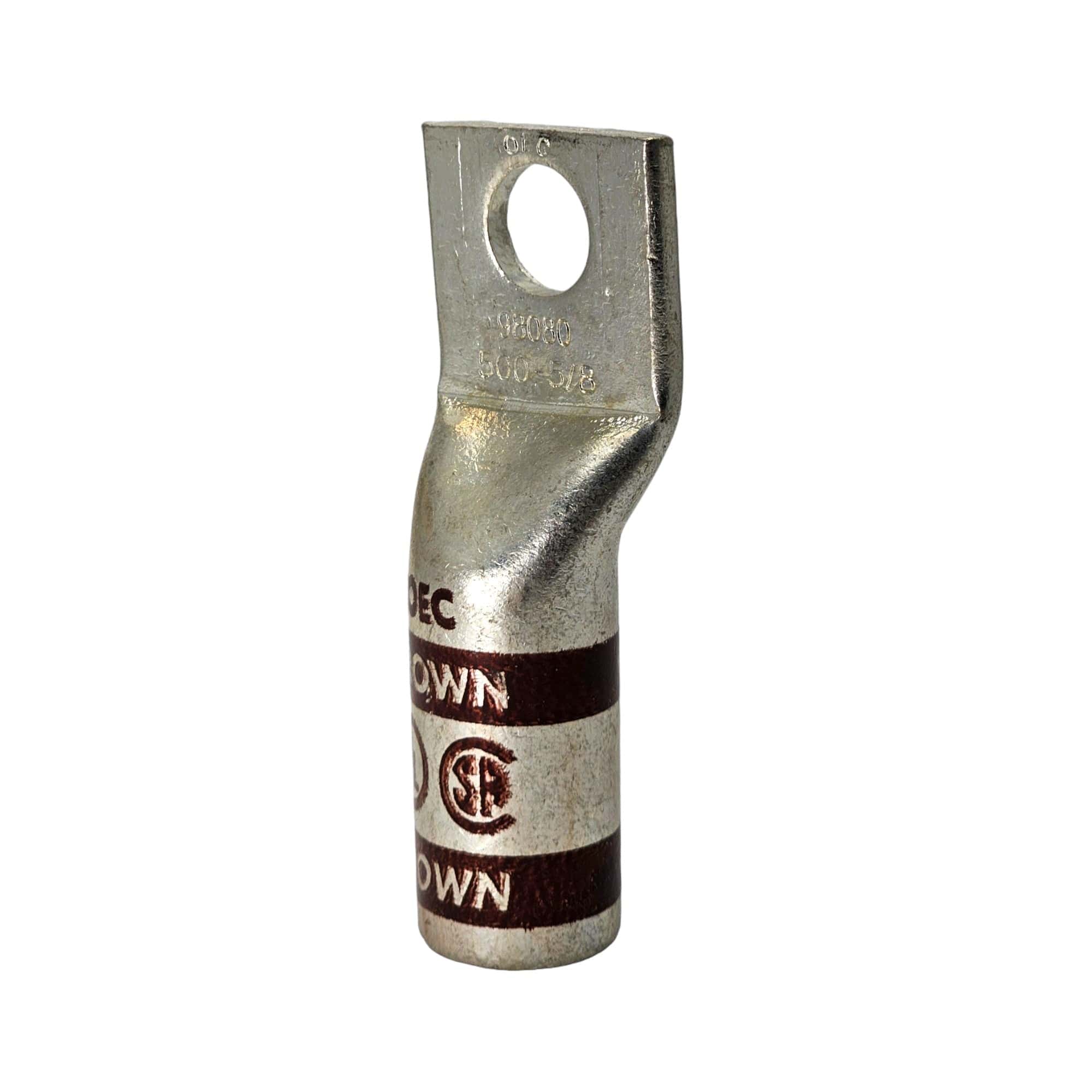

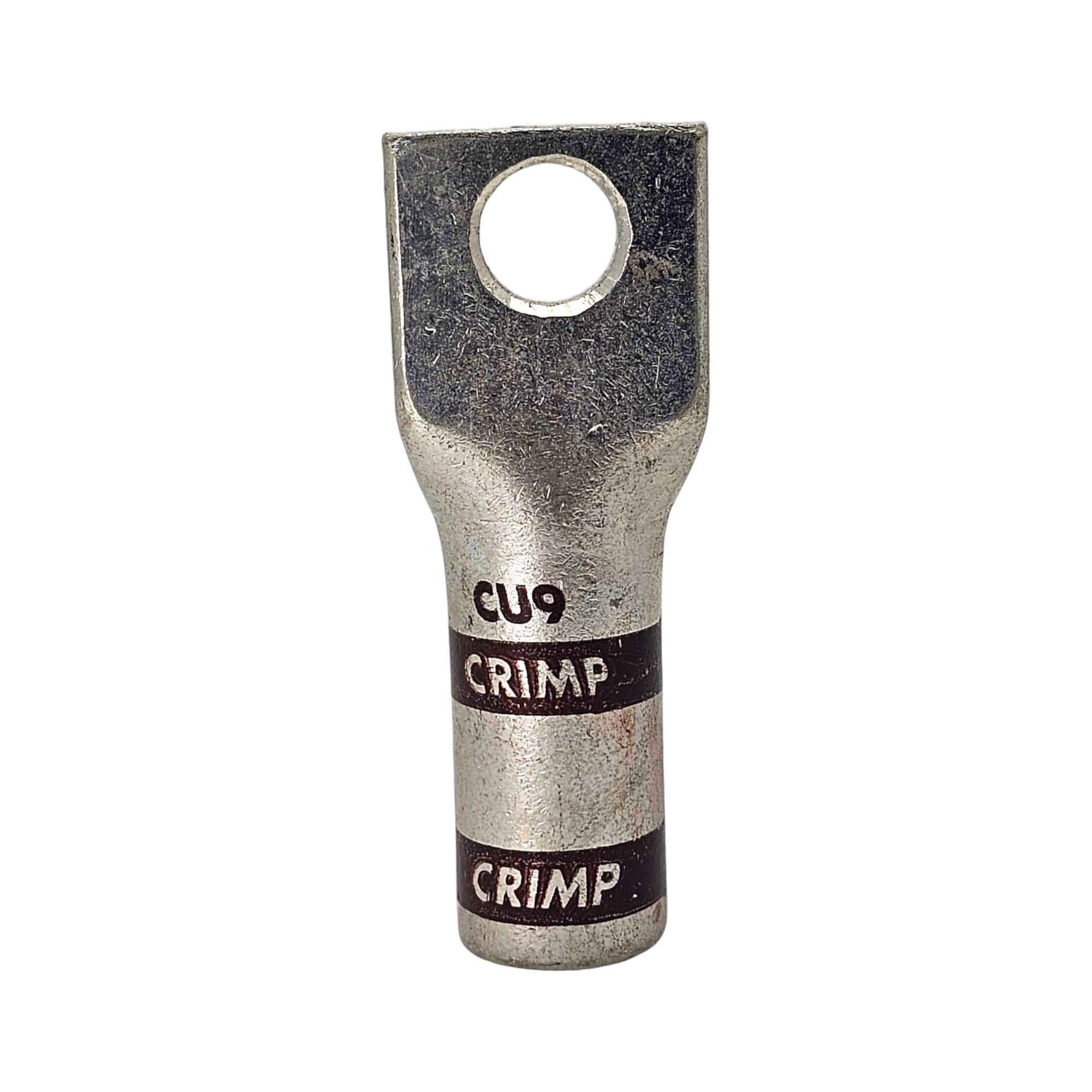

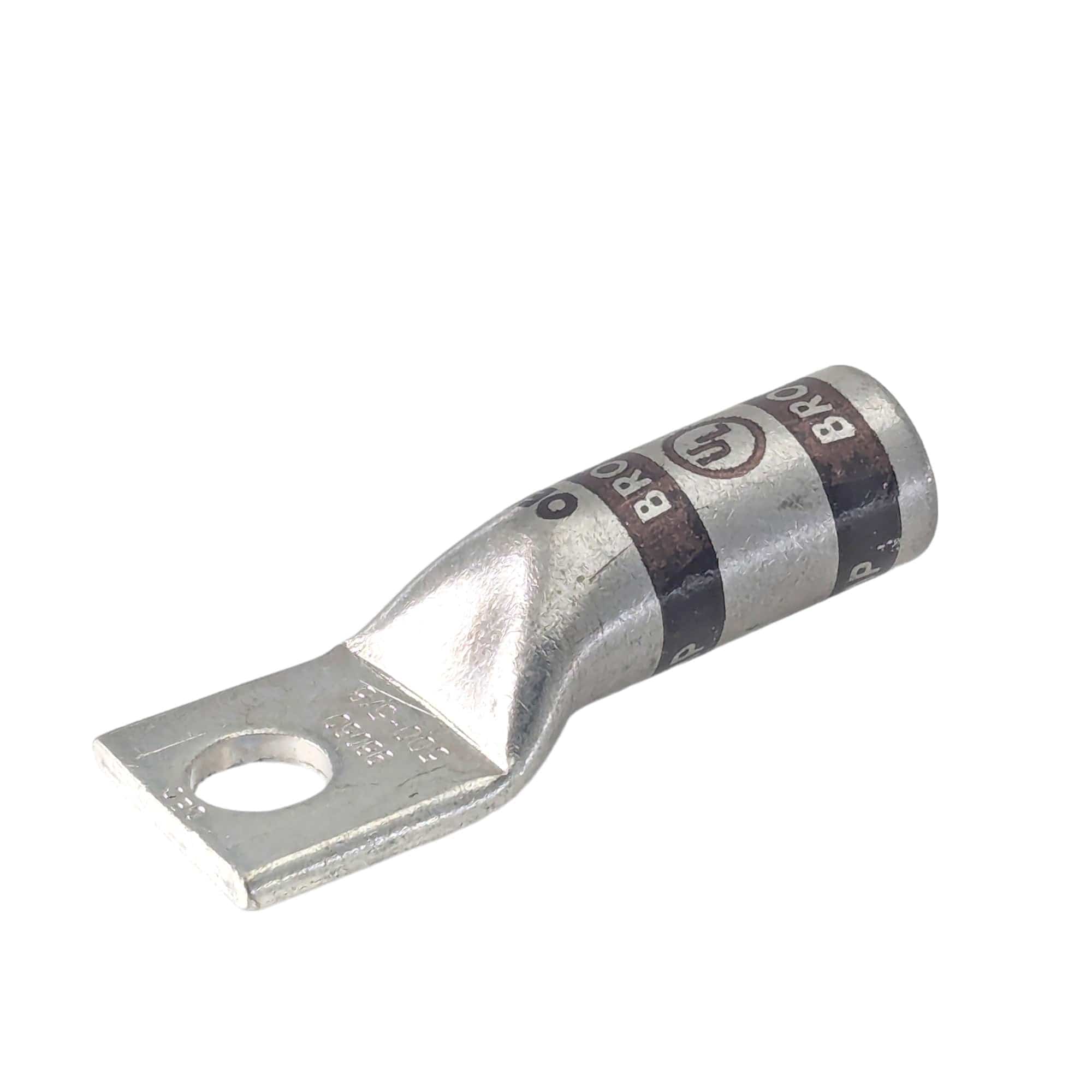

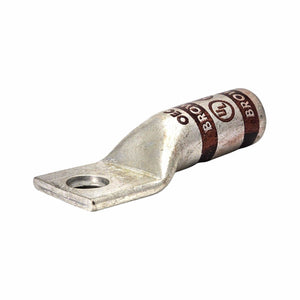

Copper Long Barrel One Hole Compression Lug 500 MCM 5/8-inch Bolt Size
Shipping calculated at checkout
SKU: 210-98080
Only 23 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Compression Lug is designed for high efficiency and durability in electrical setups. This one-hole lug, ideal for 500 MCM conductors, features a 5/8-inch bolt size and a long barrel that enhances flexibility across various applications. The distinctive brown color aids in quick identification, ensuring seamless integration into existing systems.
Key Features
- Material: Made from high-quality copper, providing excellent electrical conductivity and long-lasting durability.
- Compatible with 500 MCM Conductors: Specifically designed to work with 500 MCM (thousand circular mils) conductors, ensuring optimal performance for larger gauge wires.
- Bolt Size: Features a 5/8-inch bolt hole size for secure attachment to bolts or studs in various electrical installations.
- Long Barrel Design: The long barrel design allows for greater flexibility and ease of use in different application environments, making it ideal for use in tight or complex installations.
- Distinctive Brown Color: The unique brown color helps with quick identification and makes integration into existing systems more straightforward.
- High Efficiency: Designed to reduce electrical resistance and improve system efficiency, ensuring reliable and long-term electrical connections.
- Durable and Corrosion-Resistant: Copper material ensures that the lug is resistant to corrosion and wear, even in harsh environments, extending the life of the electrical system.
- Versatile Application: Suitable for use in industrial, commercial, and residential electrical setups where high-performance, secure connections are needed.
-
Easy Integration: The compression lug is designed for straightforward installation, ensuring a strong, reliable connection without the need for extra tools or complicated processes.

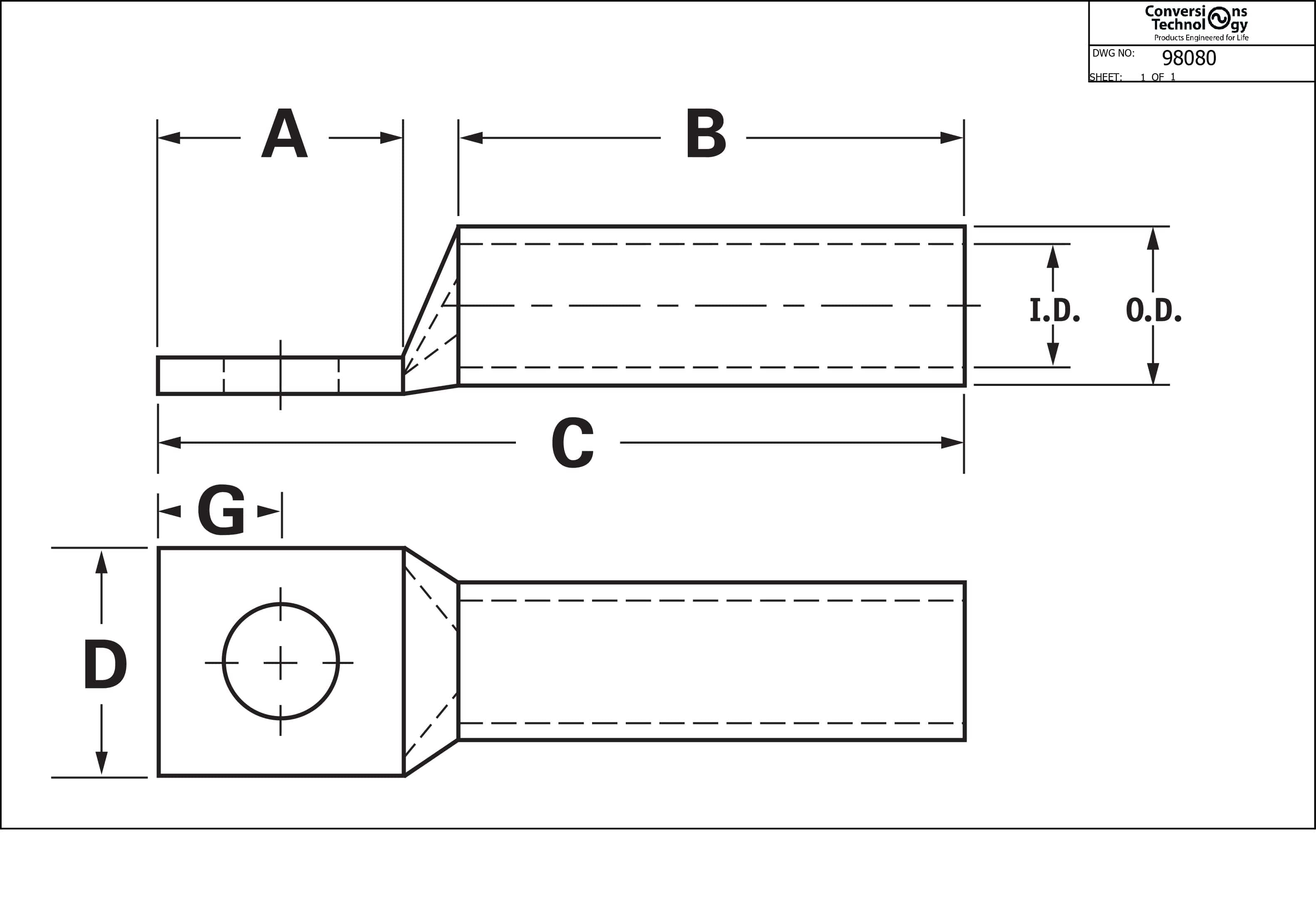

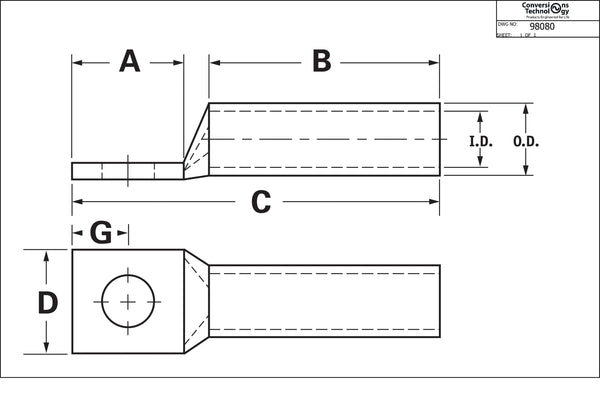

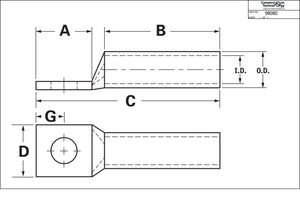

Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
| Color | Brown |
| Overall Length | 4.419 inches |
| Barrel Length | 2.25 inches |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 500 MCM |
| Stud Size | 5/8 inch |
| Die Index | I-87 |
| Pad Size | 1.437 inches L x 1.535 inches W x 0.234 inches Thk |
| Number of Pad Holes | 1 |
| Barrel Type | Long |
| Inner Diameter | 0.828 inches |
| Outer Diameter | 1.062 inches |
| Barrel Entry Type | Chamfered |
| Temperature Rating | 90°C |
