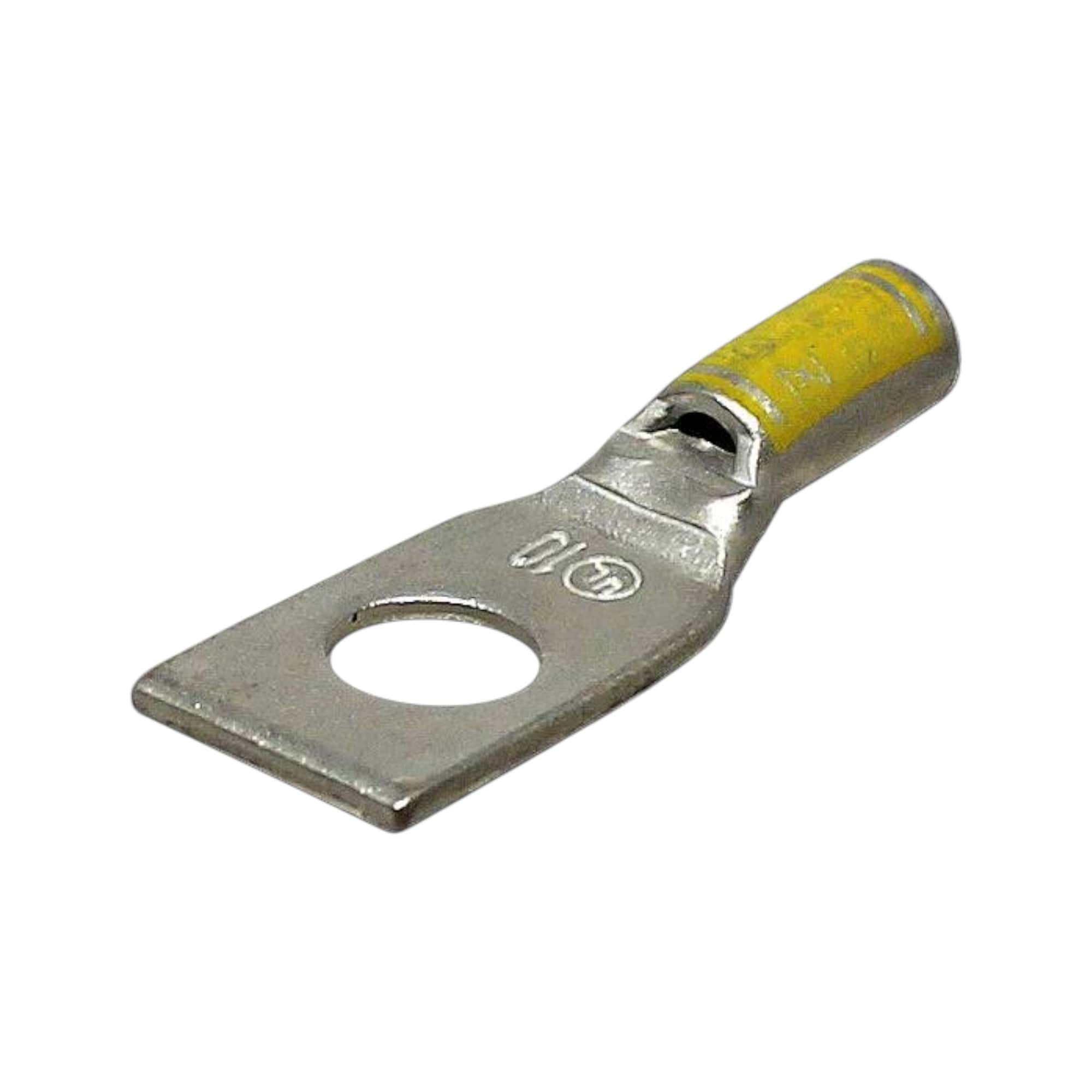

Copper Short Barrel One Hole Compression Lugs 10 AWG 5/16 Bolt Size
Shipping calculated at checkout
Out of stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
The Conversions Tech Copper Compression Lug is a high-quality connector designed for secure electrical connections. Built for 10 AWG conductors, it features a 5/16-inch bolt size and a long barrel, ensuring a strong and stable connection. The tin-plated construction provides corrosion resistance for long-lasting performance. The distinctive red color code allows for quick identification, making installations faster and more efficient. This lug is an excellent choice for reliable and efficient electrical connections in various applications.
Key Features
- Long Barrel Design: Promotes secure crimping and reliable conductor connections.
- Tin-Plated Copper Construction: Offers excellent durability and corrosion resistance.
- Blue Color Code: Facilitates easy identification during installation.
- High Standards: UL Recognized, CE Certified, and RoHS Compliant, ensuring quality and safety.
- Versatile: Suitable for 6 AWG wire and 1/4" stud size, supporting a maximum amp rating of 65A at 35KV.
Technical Specifications
| Material | Seamless Electro-Tin Plated Copper |
|---|---|
| Color | Yellow |
| Overall Length | 1.569 Inch |
| Barrel Length | 0.812 Inch |
| Conductor Material | Copper |
| Voltage Rating | 35 kV |
| Conductor Size | 10 AWG |
| Stud Size | 5/16 |
| Die Index | I-21 |
| Pad Size | 0.562 Inch L x 0.374 Inch W x 0.093 Inch Thk |
| Pad Holes | 1 |
| Barrel Type | Short Barrel |
| Insulation ID/OD | 0.179 Inch ID x 0.272 Inch OD |
| Barrel Entry | Chamfered |
| Temperature Rating | 90 Deg C |
