Copper Short Barrel One Hole Compression Lugs 6 AWG #10 Bolt Size
Shipping calculated at checkout
SKU: 210-98003
30 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

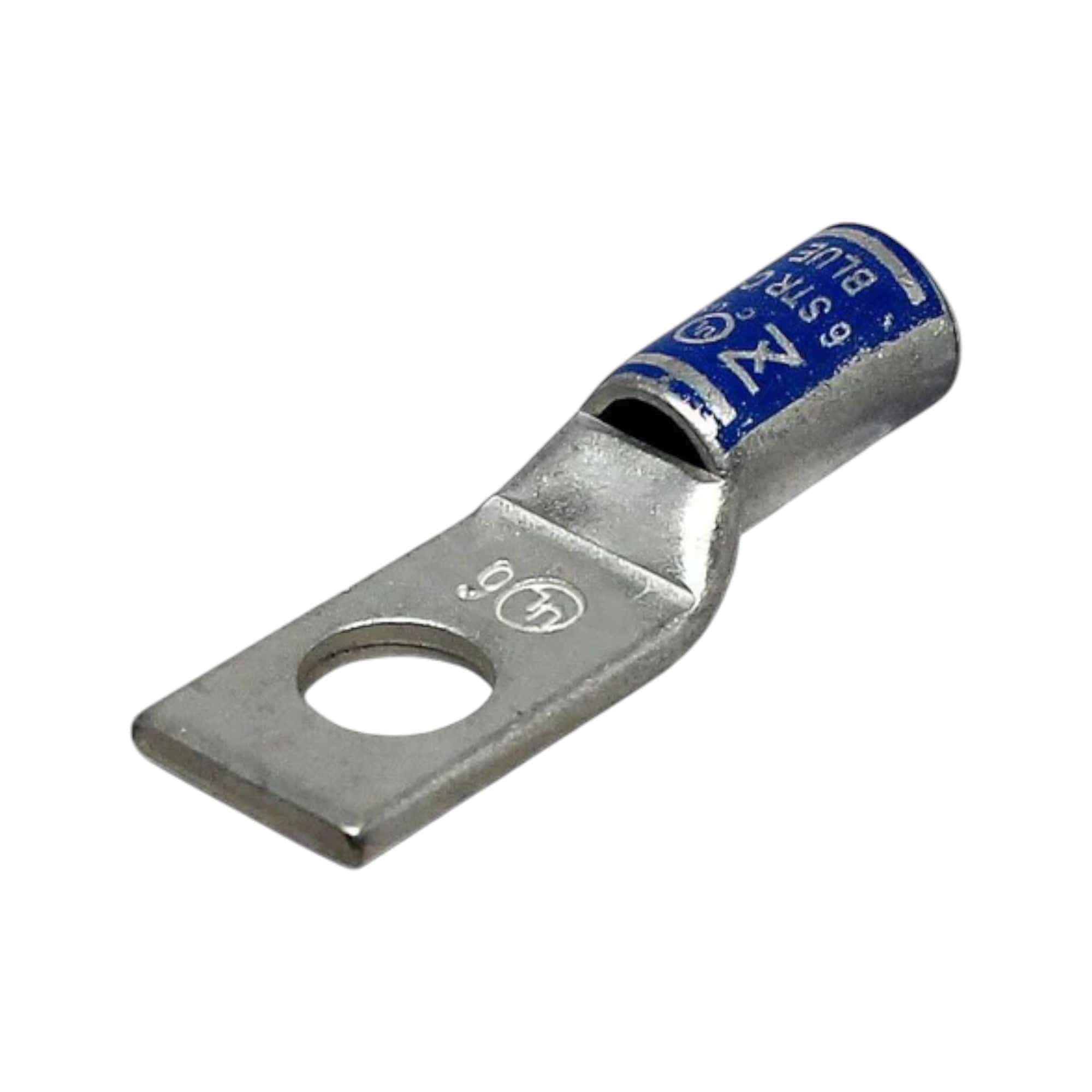

The Conversions Tech 1-Hole Lug is a high-quality copper compression lug designed for 6 AWG conductors, featuring a #10 bolt size, standard barrel, sight window, and tin-plated finish. The lug's blue color code provides easy visual identification, ensuring a secure and efficient electrical connection.
Key Features
- High-Quality Copper Construction: Ensures excellent conductivity and a long-lasting, reliable connection for 6 AWG conductors.
- #10 Bolt Size: Compatible with a #10 bolt size, ensuring a secure attachment to terminals or busbars.
- Standard Barrel Design: Provides a strong, stable connection while simplifying the installation process.
- Sight Window: Allows for easy visual inspection to confirm proper conductor seating, ensuring an accurate and reliable connection.
- Tin-Plated Finish: Enhances corrosion resistance and conductivity, ensuring a high-performance connection over time.
- Blue Color Code: Facilitates easy identification within electrical systems, aiding in phase organization and simplifying installation.
Technical Specifications
| Wire Size | 6 AWG |
| Stud Size | #10 Stud |
| Color | Blue |
| L | 32.1mm (1.30") |
| L1 | 15.2mm (0.60") |
| D | 11.4mm (0.40") |
| D1 | 7.9mm (0.30") |
| D2 | 5.9mm (0.20") |
| B | 13.7mm (0.50") |
| E | 5.6mm (0.20") |
| F | 1.9mm (0.08") |
| Material | Tin Plated Copper |
| Temperature Rating | 90°C |
| Max Electrical Rating | 35 KV |
| Max Electrical Current | 65A |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
