Copper Short Barrel One Hole Compression Lugs 6 AWG 1/2-inch Bolt Size
Shipping calculated at checkout
SKU: 210-09823
1000 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

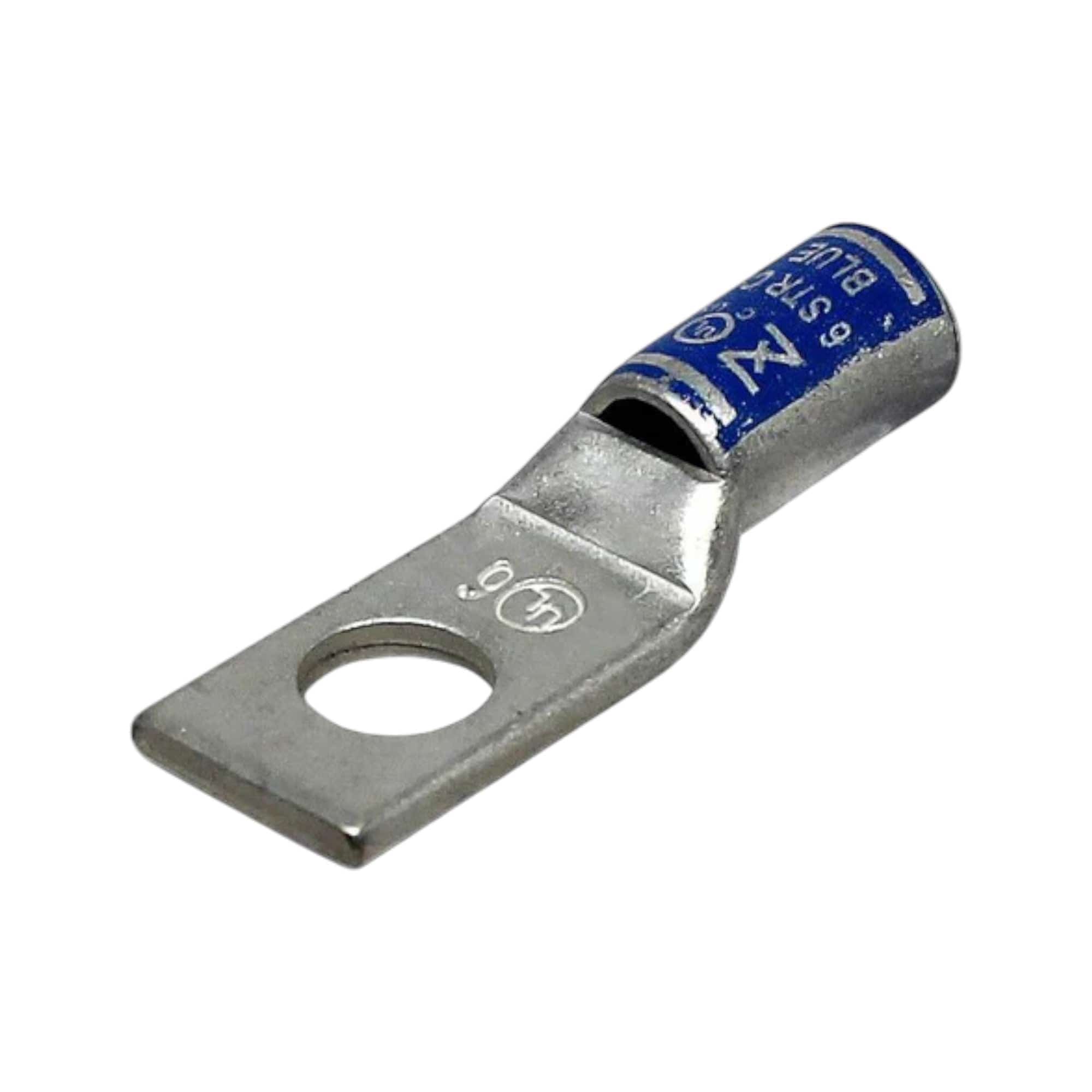

The Conversions Tech Compression Lug is a reliable and high-quality electrical connector designed for the secure termination of 6 AWG copper wires. Featuring a 1-hole design and a 1/2" stud size, this lug ensures a robust and efficient connection. The distinctive blue color code aids in easy identification within electrical systems, enhancing both usability and reliability for electricians and technicians.
Key Features
- Reliable Copper Construction: Ensures strong conductivity and long-lasting, secure electrical connections.
- 6 AWG Compatibility: Specifically designed for the secure termination of 6 AWG copper wires, making it versatile for various electrical systems.
- 1-Hole Design: Features a single hole with a 1/2" stud size, allowing for easy and stable connection to terminals or busbars.
- Blue Color Code: Simplifies phase identification and enhances organization within electrical systems for quicker, easier installation.
- Efficient Compression Connection: Guarantees a tight, durable connection, preventing loosening or failure over time.
- Durable Performance: Built to withstand the demands of electrical installations, ensuring reliable functionality in both residential and industrial settings.
Technical Specifications
| Wire Size | 6 AWG |
| Stud Size | 1/2" Stud |
| Color | Blue |
| L | 45.6mm (1.79") |
| L1 | 28.7mm (1.13") |
| D | 17.8mm (0.70") |
| D1 | 7.9mm (0.31") |
| D2 | 5.9mm (0.23") |
| B | 13.7mm (0.54") |
| E | 13.7mm (0.54") |
| F | 1.2mm (0.05") |
| Material | Tin Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Maximum Amp Rating | 65 Amps |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
