Copper Short Length Compression Connector 4 AWG
Shipping calculated at checkout
SKU: 210-98113
Only 25 in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

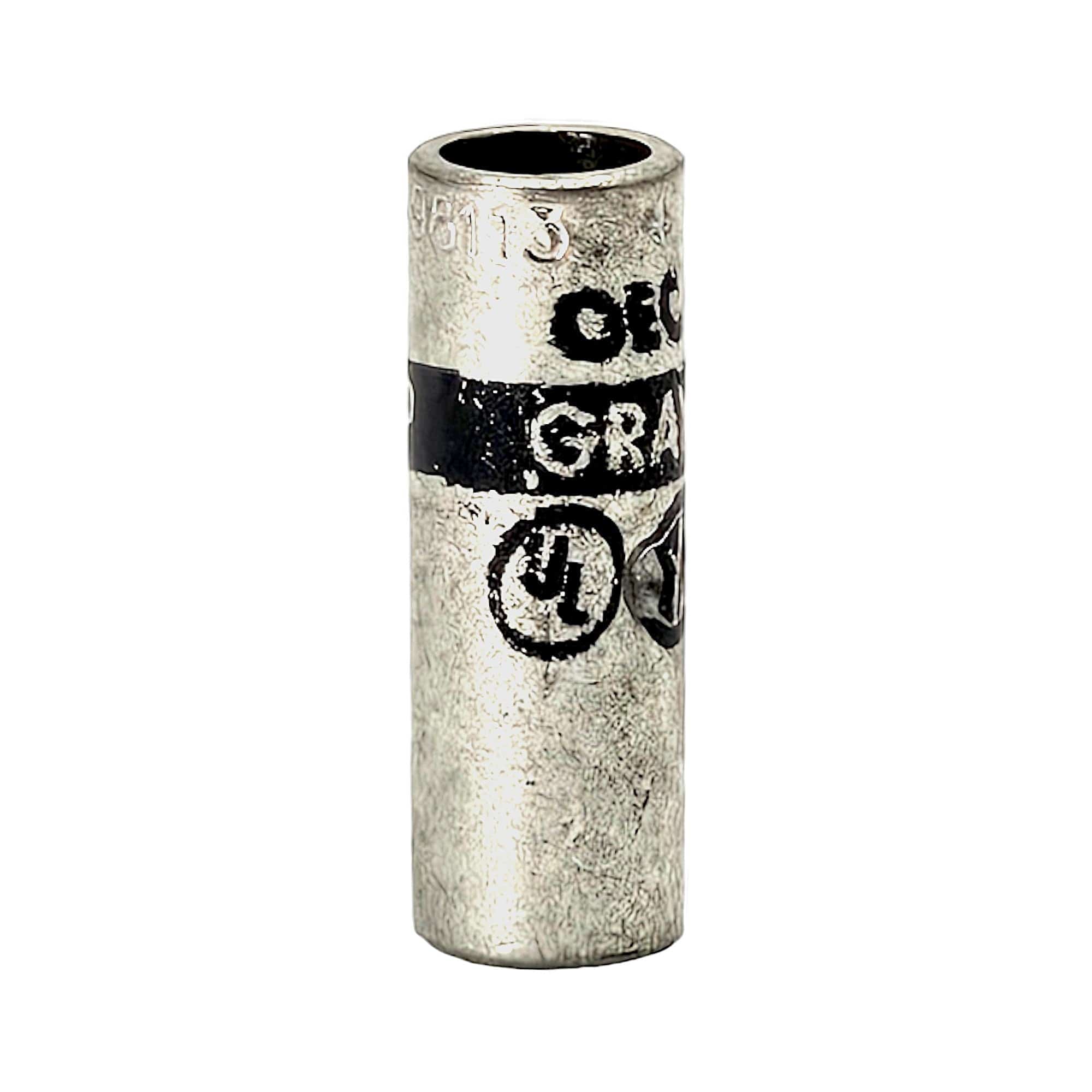

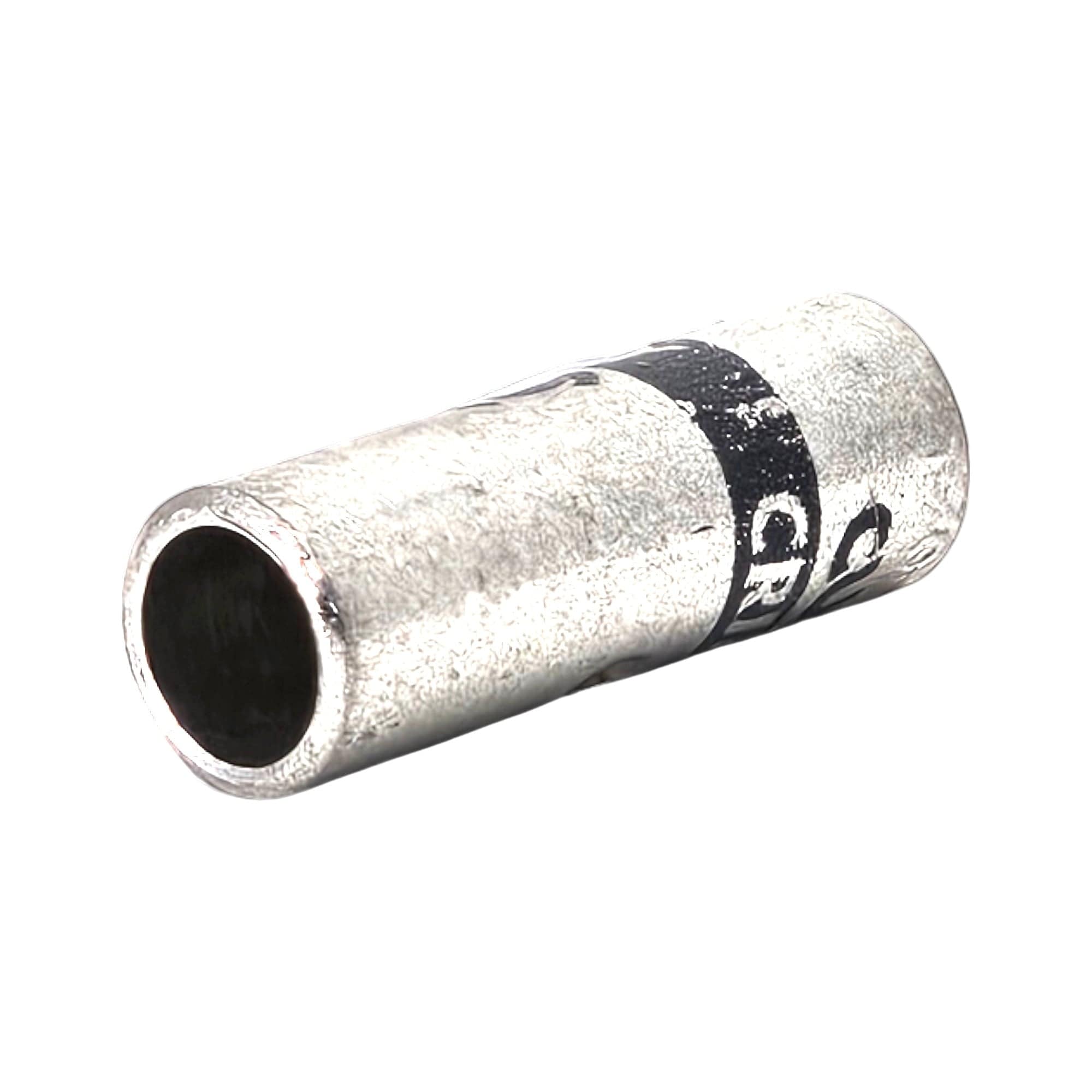

The Conversions Technology 4AWG Copper Compression Connector is designed to enhance power transmission efficiency in diverse electrical setups. Featuring a copper compression sleeve, tin-plated for improved conductivity and corrosion resistance, and a distinctive gray color code for quick identification, this connector is ideal for high-demand applications in power distribution, renewable energy, and more.
Specifications
- Type: Center Wire Stop
- Dimensions: Length: 1.875 inches, Inner Diameter: 0.25 inches, Outer Diameter: 0.343 inches
- Conductor Material: Copper
- Voltage Rating: 35 kV
- Body Material: Electro-Tin Plated High Strength Seamless Copper
- Conductor Size: 4 AWG
- Color Code: Gray
- Barrel Type: Short with Chamfered End
- Application: Grounding and Bonding
- Temperature Rating: 90°C
Uses and Cases
This connector is versatile and robust, ideal for a range of applications including power distribution systems, industrial machinery setups, and renewable energy systems. Its secure and efficient design ensures reliable connections across various sectors, supporting the infrastructure of critical electrical systems.
Key Features
- Tailored for 4AWG copper conductors, ensuring a precise and secure fit for enhanced performance.
- Constructed from high-strength electro-tin plated copper, offering superior conductivity and corrosion resistance.
- Features a short barrel with a chamfered end for easier wire insertion and reliable connections.
- The gray color code facilitates quick and accurate installation, adhering to industry standards.
