Copper Short Barrel One Hole Compression Lugs 2 AWG 5/16-inch Bolt Size
Shipping calculated at checkout
Only 1 in stock
Pickup currently unavailable
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here

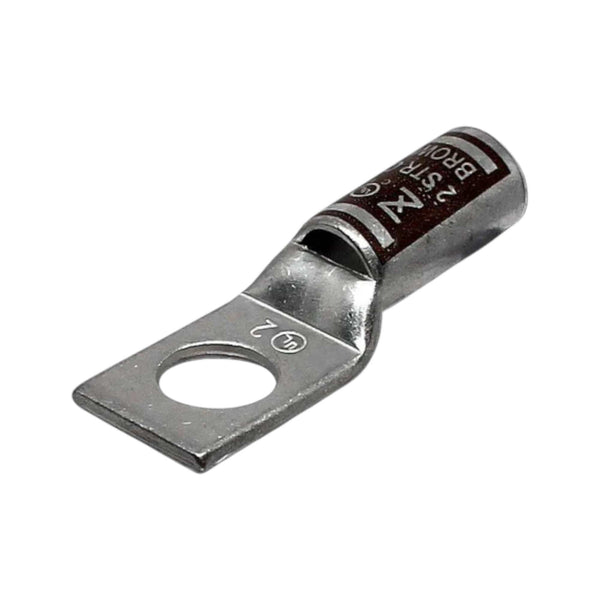

The Conversions Tech Copper Compression Lug by Conversions Technology is designed for high-performance in electrical systems, accommodating #2 AWG conductors. This lug is engineered with a 5/16-inch bolt size and a standard barrel that includes a sight window, streamlining installation and ensuring precise wire insertion. The durable tin-plated copper enhances conductivity and resists corrosion, while the brown color code facilitates easy identification during setups, making it a reliable choice for diverse electrical applications.
Key Features
- Conductor Size: Designed for #2 AWG conductors, ensuring secure and reliable connections for this wire gauge in electrical systems.
- Bolt Size: Features a 5/16-inch bolt size, providing a stable and strong mechanical connection to electrical systems.
- Standard Barrel: The standard barrel design ensures optimal conductor compression and mechanical retention, promoting a solid connection.
- Sight Window: Includes a sight window, simplifying installation by allowing for easy inspection of wire placement and ensuring precise wire insertion.
- Material: Made from tin-plated copper, offering excellent conductivity and corrosion resistance, ensuring durability and long-lasting performance even in demanding environments.
- Color Code: Brown color code for easy identification, helping to streamline installation and reduce errors.
-
Applications: Suitable for a wide range of electrical applications, including industrial, commercial, and residential systems, providing secure and efficient connections.
Technical Specifications
| Wire Size | 2 AWG |
|---|---|
| Stud Size | 5/16" Stud |
| Color | Brown |
| Overall Length (L) | 43.9mm (1.72") |
| Neck Length (L1) | 19.1mm (0.75") |
| Outer Diameter (D) | 15.9mm (0.63") |
| Inner Diameter (D1) | 10.8mm (0.42") |
| Hole Diameter (D2) | 8.5mm (0.35") |
| Width (B) | 20.3mm (0.33") |
| Hole Spacing (E) | 8.8mm (0.30") |
| Thickness (F) | 2.2mm (0.08") |
| Material | Tin-Plated Copper |
| Temperature Rating | 90°C |
| Voltage Rating | 35 KV |
| Max Amp Rating | 170A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
