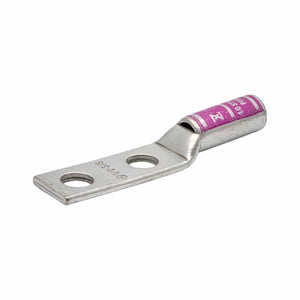

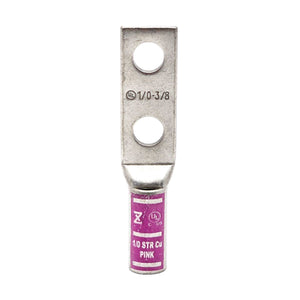

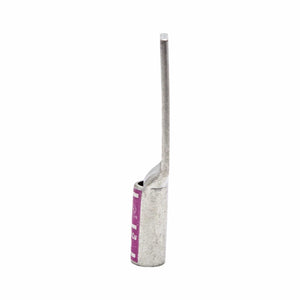

Copper Long Barrel Two Hole Compression Lugs 1/0 AWG 3/8-inch Bolt Size

The Conversions Technology Copper Compression Lug is a robust connector designed for secure and efficient electrical connections with 1/0 AWG conductors. It features a 3/8-inch bolt size, 1-inch hole spacing, and a long barrel, ensuring enhanced connectivity and stability. The tin-plated finish provides corrosion resistance, ensuring long-lasting performance. The distinctive pink color code allows for quick identification, making installations more efficient. This lug is a reliable choice for a variety of electrical applications, offering both performance and durability.

Key Features

• Seamless Electro-Tin Plated Copper Material: Ensures conductivity and corrosion resistance for reliable electrical connections.

• Pink Color: Facilitates easy identification with a distinctive color code.

• 3.793 Inch Overall Length: Provides ample length for secure conductor termination.

• 1.5 Inch Barrel Length: Accommodates 1/0 AWG conductors for efficient crimping.

• 35 kV Voltage Rating: Suitable for applications requiring high voltage resistance.

• 1/0 AWG Conductor Size: Designed to handle 1/0 AWG conductors for versatility.

• 3/8 Inch Stud Size: Compatible with common stud sizes for easy installation.

• I-42 Die Index: Indicates compatibility information for proper crimping tools.

• 1.937 Inch L x 0.738 Inch W x 0.125 Inch Thk Pad Size: Provides a stable mounting surface for the lug.

• 2 Pad Holes: Allows flexibility in conductor termination and installation.

• 1 Inch Pad Hole Spacing: Facilitates consistent and efficient spacing in various applications.

• Long Barrel Type: Enhances flexibility and ease of use during installation.

• 0.39 Inch Inner Diameter x 0.515 Inch Outer Diameter: Accommodates specific wire dimensions for secure connections.

• Barrel Type Chamfered Entry: Streamlines conductor insertion, improving installation efficiency.

• Temperature Rating 90°C: Suitable for applications with elevated temperature requirements. Technical Specifications
