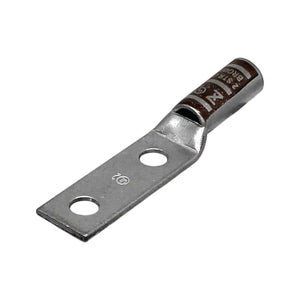

Copper Long Barrel Two Hole Compression Lugs 2 AWG #10 Bolt Size

The Long Barrel Lug is designed for versatile use in a range of electrical applications. With a #10 bolt size and 1-inch hole spacing, it accommodates 2 AWG conductors, offering flexibility for various wiring needs. The long barrel construction simplifies installation, while the tin-plated finish ensures excellent corrosion resistance for long-lasting durability. The brown color code facilitates easy identification, and the absence of a sight window maintains a streamlined, sleek design. This lug ensures reliable, secure electrical connections across a wide array of settings.

Key Features

• Seamless Electro-Tin Plated Copper Material: Provides high conductivity and corrosion resistance for reliable electrical connections.

• Brown Color: Simplifies identification with a distinctive color code.

• 4.036 Inch Overall Length: Offers ample length for secure conductor termination.

• 1.125 Inch Barrel Length: Accommodates 2 AWG conductors for efficient crimping.

• 35 kV Voltage Rating: Suitable for applications requiring high voltage resistance.

• 2 AWG Conductor Size: Designed to handle 2 AWG conductors for versatility.

• #10 Inch Stud Size: Compatible with common stud sizes for easy installation.

• I-33 Die Index: Indicates compatibility information for proper crimping tools.

• 2.625 Inch L x 0.599 Inch W x 0.109 Inch Thk Pad Size: Provides a stable mounting surface for the lug.

• 2 Pad Hole(s): Allows flexibility in conductor termination and installation.

• 1 Inch Pad Hole Spacing: Facilitates consistent and efficient spacing in various applications.

• Long Barrel Type: Enhances flexibility and ease of use during installation.

• Size 0.312 Inch ID x 0.421 Inch OD: Accommodates specific wire dimensions for secure connections.

• Barrel Type Chamfered Entry: Streamlines conductor insertion, improving installation efficiency.

• Temperature Rating 90 Deg C: Suitable for applications with elevated temperature requirements.

Technical Specifications
